Xerox WorkCentre 6505 Service Manual

Phaser 6500/WorkCentre 6505 Service Manual Xerox Internal Use Only 4-63
General Troubleshooting

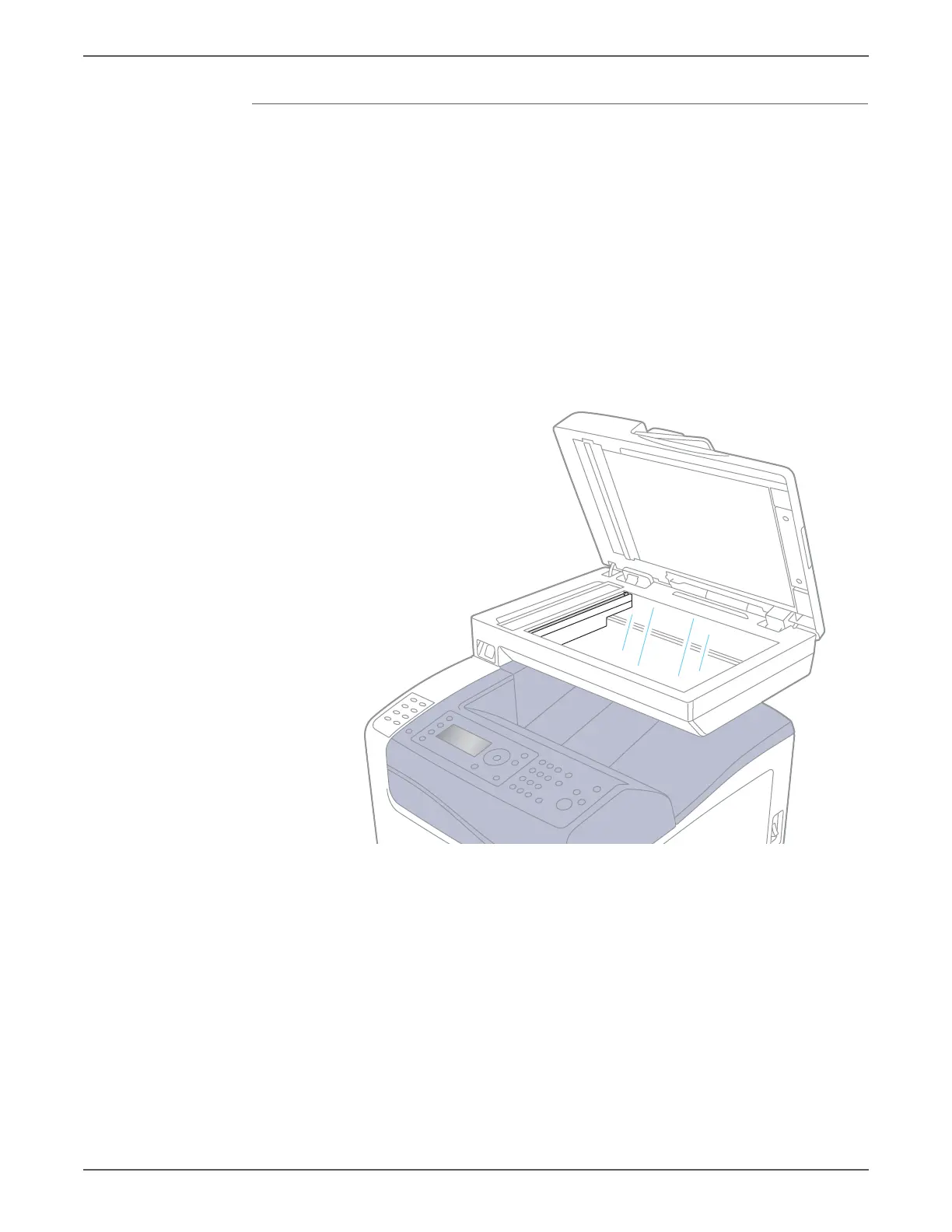

Scanner Lamp
1. Enter Service Diagnostics (page 4-8).
2. Open the Platen Cover.
3. Perform the Fax/Scanner Diag > Scanner Maintenance > IIT I/O Check
>Lamp test.
4. Press the Arrow buttons to select Set OFF.
5. Press OK to run the test.
6. Check that the Lamp is Off.
7. Press Stop to return one step higher menu.
8. Repeat the Lamp test Fax/Scanner Diag > Scanner Maintenance > IIT I/O
Check >Lamp test.
9. Press the Arrow buttons to select Set ON.
10. Check that the Lamp is ON.
11. Press Stop to stop the test.
s6500-102

Xerox WorkCentre 6505 Specifications

General

Print Technology	Laser
Copy Resolution	Up to 600 x 600 dpi
Standard Paper Capacity	250 sheets
ADF Capacity	35 sheets
Functions	Print, Copy, Scan, Fax
Processor	533 MHz
Memory	256 MB
Fax Transmission Speed	33.6 kbps
Monthly Duty Cycle	40, 000 pages
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Maximum Paper Size	8.5 x 14 in
Operating System Compatibility	Windows, Mac, Linux
Print Resolution	Up to 1200 x 2400 dpi
