Doosan DA40 - Cylinder head - PDE System Tier2; Cylinder head, parts view. PDE Tier2

Engine
SHOP MANUAL
Ch 1 page 57
Cylinder head - PDE System Tier2
1. Valve bridge
2. Pin
3. Bolt
4. Collet
5. Valve spring collar
6. Valve spring
7. Valve spring
8. Valve stem seal
9. Valve guide
10. Socket
11. Collet
12. Valve spring collar
13. Valve spring
14. Rivet plug
15. Tight-fit screw
16. Shaft
17. Bearing bracket
18. Rocker arm for unit
injector
19. Adjusting screw
20. Hexagon nut
21. Rocker arm
22. Spacing sleeve
(injection pump)
23. Adjusting screw
24. Hexagon nut
25. Rocker arm
26. Core plug
27. Unit injector
28. Cylinder head
29. Pin
30. Rivet plug
31. Gasket
32. Exhaust valve
33. Valve seat insert
34. Intake valve
35. Flange bolt
36. Flange bolt
37. Rocker cover,
upper section
38. Rocker cover gasket
39. Rocker cover,
lower section
40. Rocker cover gasket

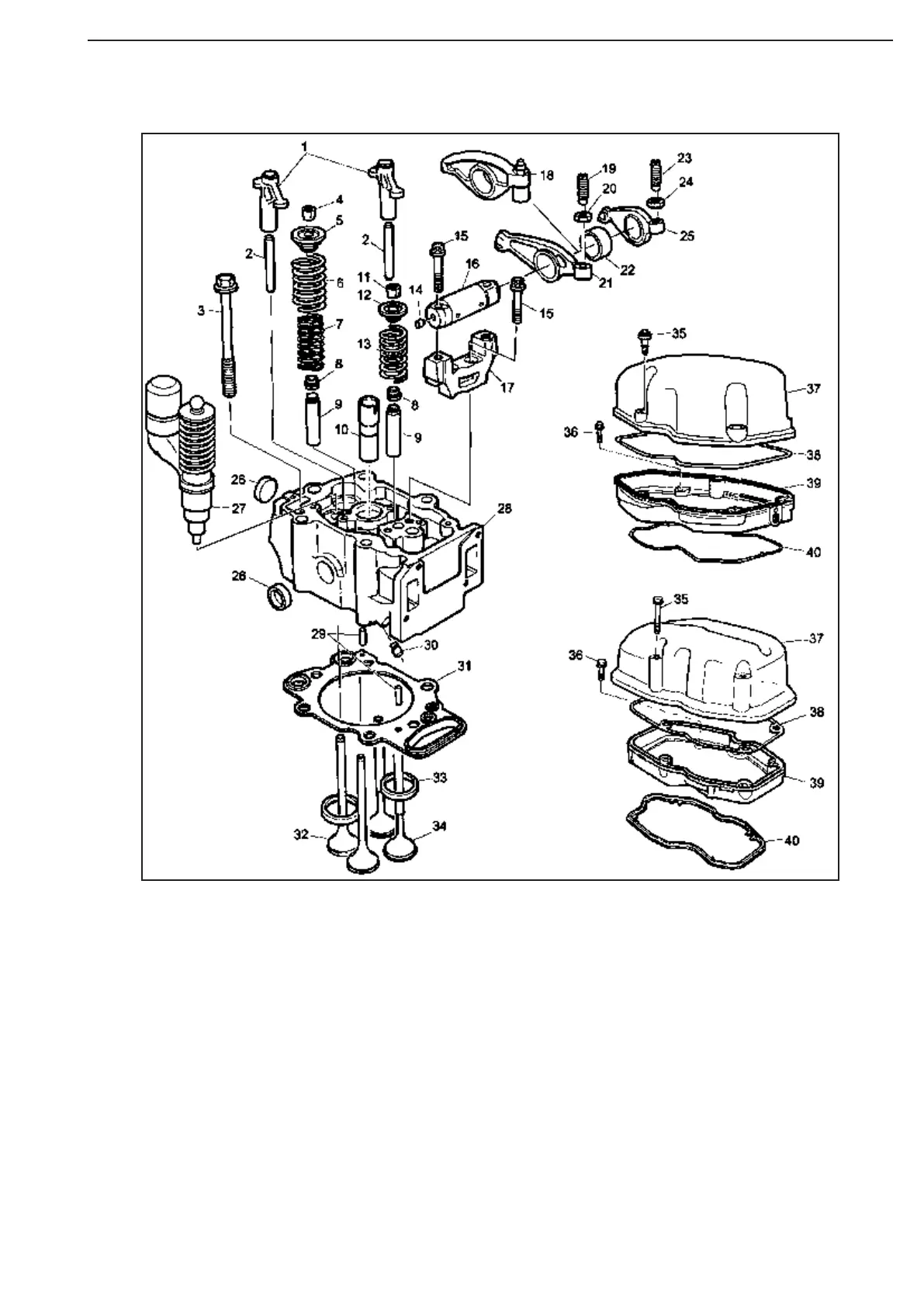

Cylinder head, parts view. PDE Tier2
Figure 92
