Doosan DA40 - View of the Tandem bearing

SHOP MANUAL
DRIVE LINE
Ch 3 page 178 Ch 3 page 179
DRIVE LINE

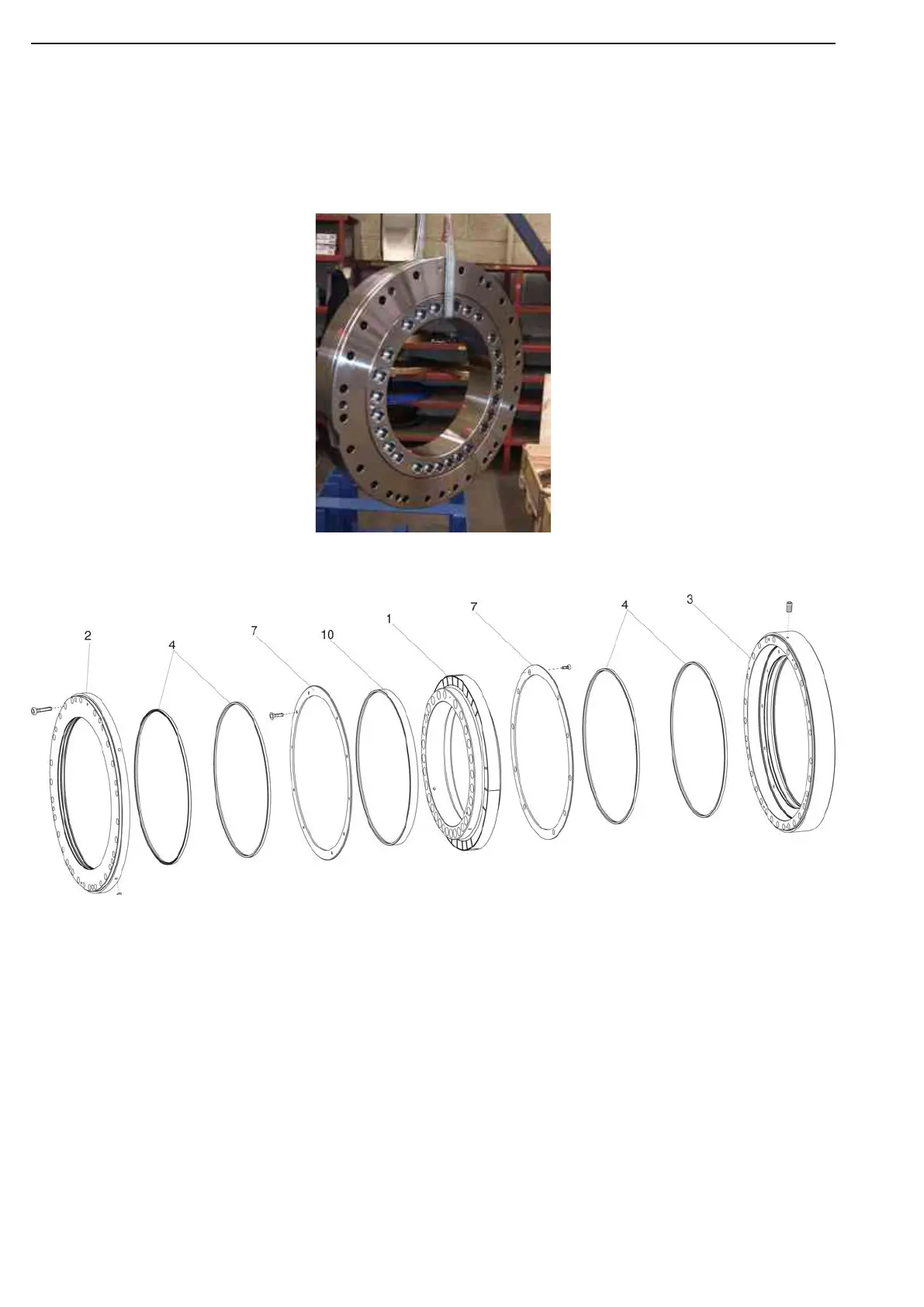

View of the Tandem bearing
Figure 519
Figure 518
1. Inner ring (C)
2. Outer ring (A)
3. Outer ring (F)
4. Seal ring
7. Thrust ring (B,E)
10. Inner ring (D)
