SHOP MANUAL
TRANSMISSION
Ch 2 page 30 Ch 2 page 31
TRANSMISSION

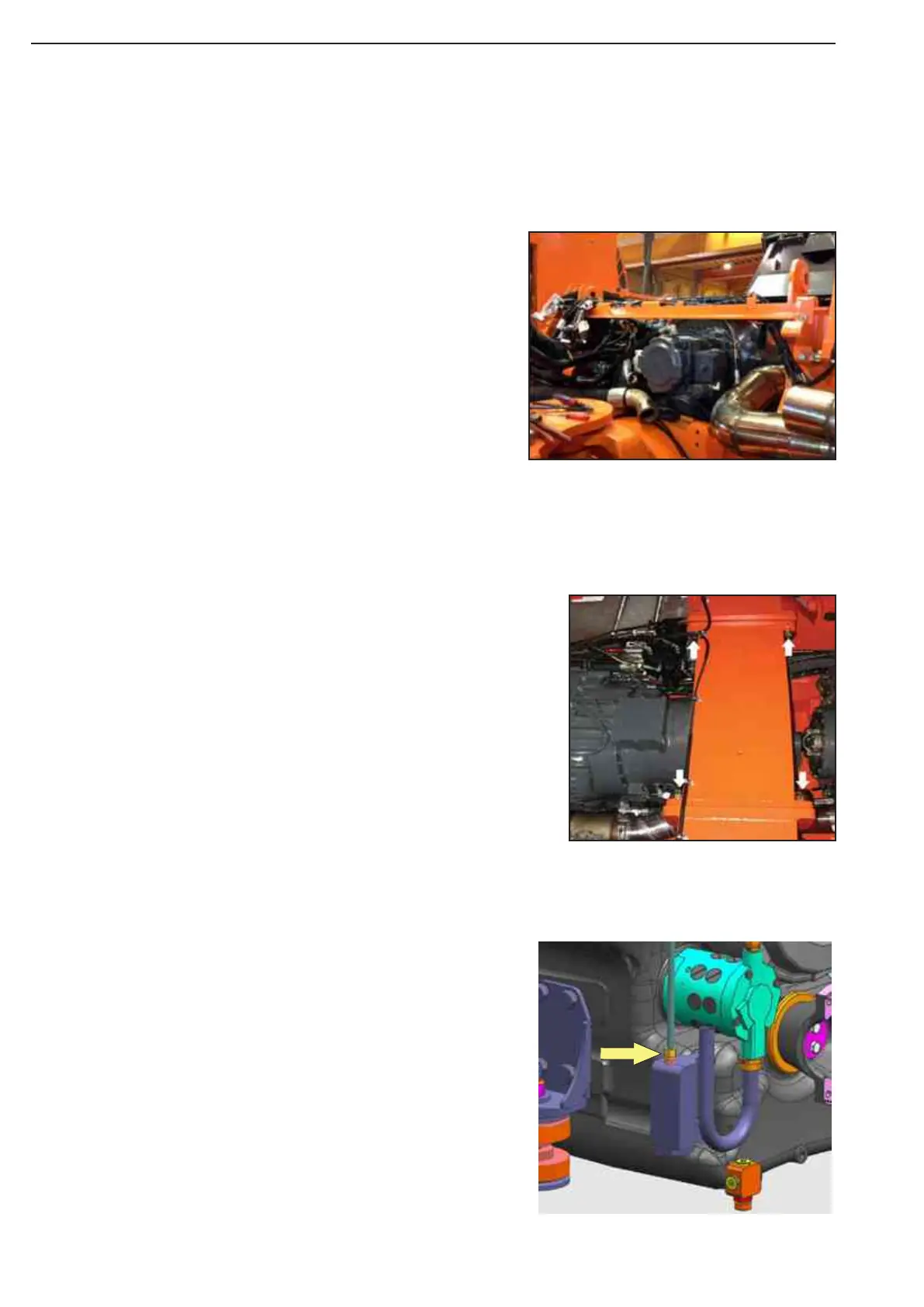

Disassemble the structure bar
Disassemble the four screws that fix the bar upper the drive
shaft T/M - engine and, then, remove the bar.
Disassemble the hydraulic hoses
Release the bracket beam (04 screws – 02 in each side) from the back
of the front frame and pull it towards the rear frame, to clear the way
while removing the transmission.
Cut the plastic clamps that hold the hoses and wires if necessary.
Disconnect all the hydraulic hoses from the transmission.
Figure 40
Figure 41
Disassemble dipstick and protect hole with plug or similar.
Figure 42
