Doosan DA40 - Main Valve - Spare Parts & Torques

SHOP MANUAL
HYDRAULIC
Ch 5 page 12 Ch 5 page 13
HYDRAULIC

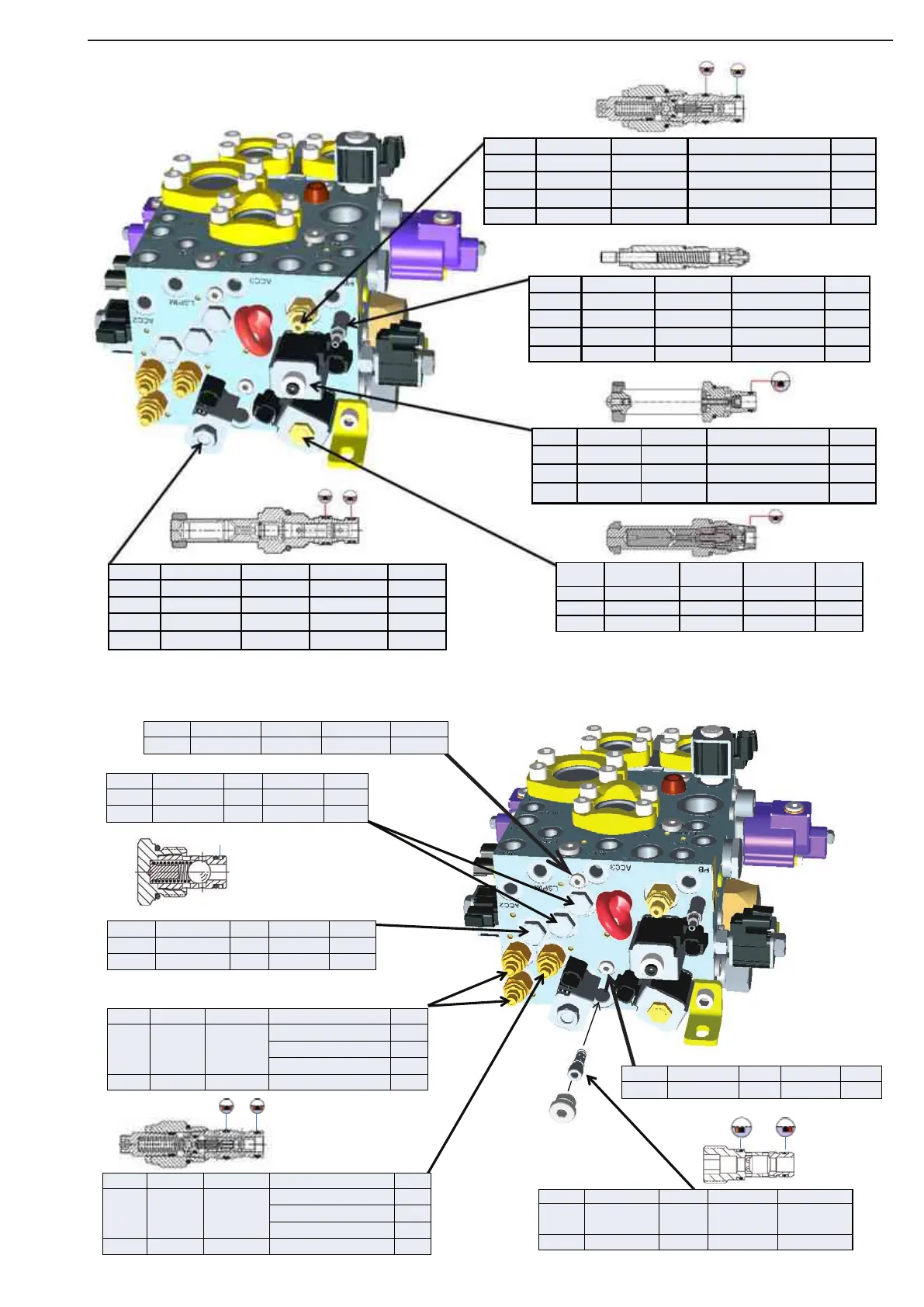

Main Valve - Spare Parts & Torques
Posion Descripon Part no. Head/socket Torque
19 Relief valve Cartridge: 13mm 10Nm
Set screw: 3mm
Lock nut: 10mm 10Nm
Seal Kit
Posion Descripon Part no. Head/socket Torque
23 Relief valve Cartridge: 7/8” (22,2mm) 45Nm
Set screw: 3/16” (4,8mm)
Lock nut: 11/16”(17,5mm)
Seal Kit
Posion Descripon Part no. Head/socket Torque
24 Solenoid valve 3/4” (19,0mm) 15Nm
Coil Round Finger ght
Seal Kit
Posion Descripon Part no. Head/socket Torque
17 Solenoid valve 1” (25,4mm) 60Nm
Coil 3/4” (19,0mm) 8Nm
Seal Kit
Posion Descripon Part no. Head/socket Torque
11 Solenoid valve 7/8” (22,2mm) 30Nm
Coil 3/4” (19,0mm) 3,5Nm!
Seal Kit
9 Blende M6 ø0,8 45Nm
Posion Descripon Part no. Head/socket Torque
6,7 Check valve 22mm 40Nm
Seal Kit
Posion Descripon Part no. Head/socket Torque
31 Check valve 22mm 40Nm
Seal Kit
Posion Descripon Part no. Head/socket Torque
22,25 Pressure Cartridge: 7/8” (22,2mm) 45Nm
reducing Set screw: 3/16” (4,8mm)
valve Lock nut: 11/16” (17,5mm)
Seal Kit
Posion Descripon Part no. Head/socket Torque
8 Pressure Cartridge: 7/8“ (22,2mm) 45Nm
reducing Set screw: 3/16” (4,8mm)
valve Lock nut: 11/16” (17,5mm)
Seal Kit
Posion Descripon Part no. Head/socket Torque
32 Shule valve 6mm 10Nm
+ Locking uid
Seal Kit
Posion Descripon Part no. Head/socket Torque
10 Blende M6 ø0,8 45Nm
Posion Descripon Part no. Head/socket Torque
12 Blende M6 ø1,5
