Engine
SHOP MANUAL
Ch 1 page 17

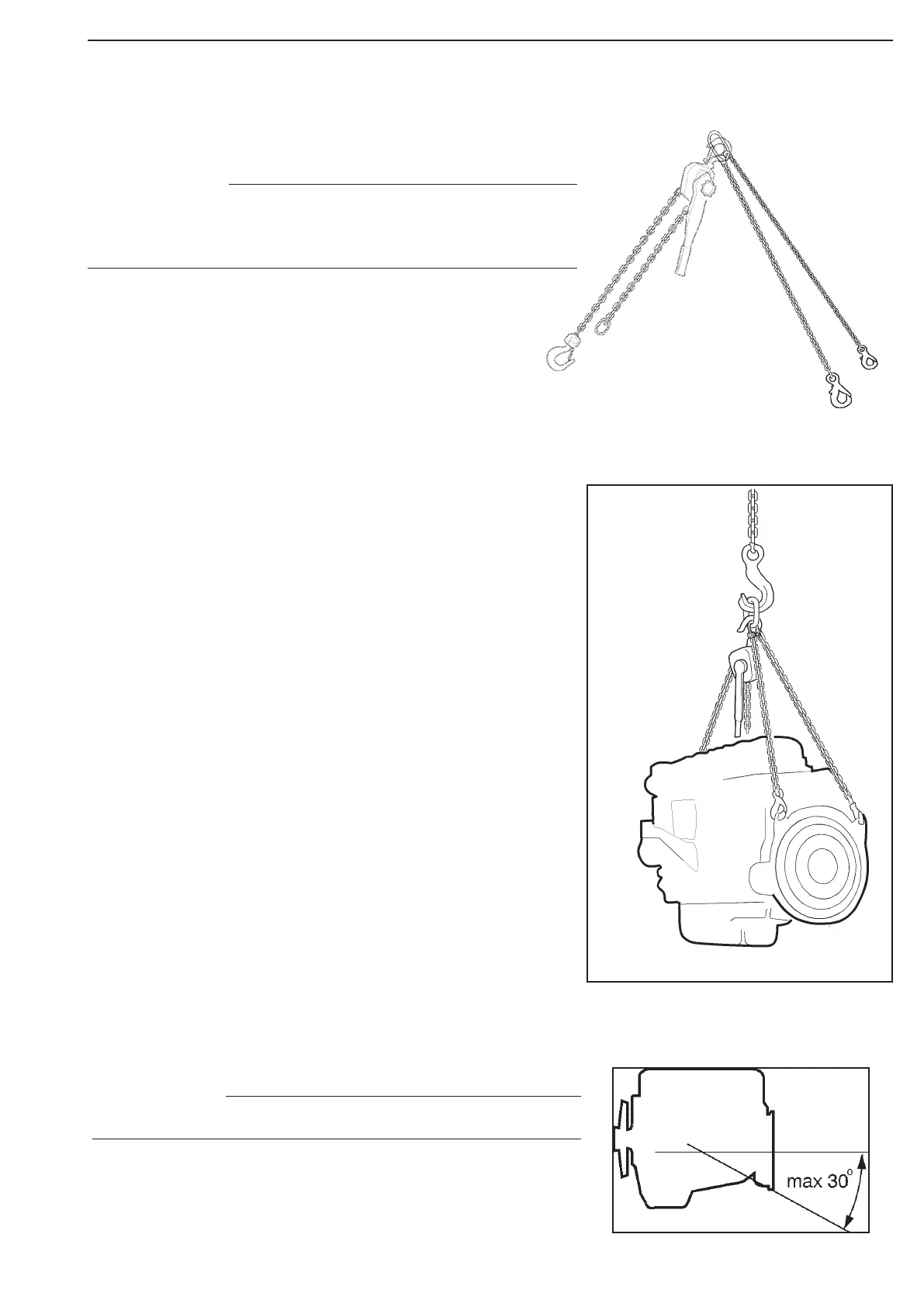

- Mount the lifting chain 8373 to the rear
lifting eyes.
- Mount the lever block 8394 to the front
lifting eye.
With attention, lift the engine out from the frame
Lifting the engine
The engine lifting eyes are designed for lifting the engine only,
not the engine together with its ancillary equipment (alternator,
gearbox etc.) or fram
8394 8373
Lever block Lifting chain
NOTE
The lifting eyes are sized to cope with a maximum angle of 30°.
NOTE
Figure 26
Figure 25
Figure 24
