Doosan DA40 - Cooling fan; View of the radiator system DA40

Engine
SHOP MANUAL
Ch 1 page 179
Cooling fan
The fan is driven by the hydraulic system and is moved to the hydraulic chapter.
Look in the Hydraulic chapter 5.

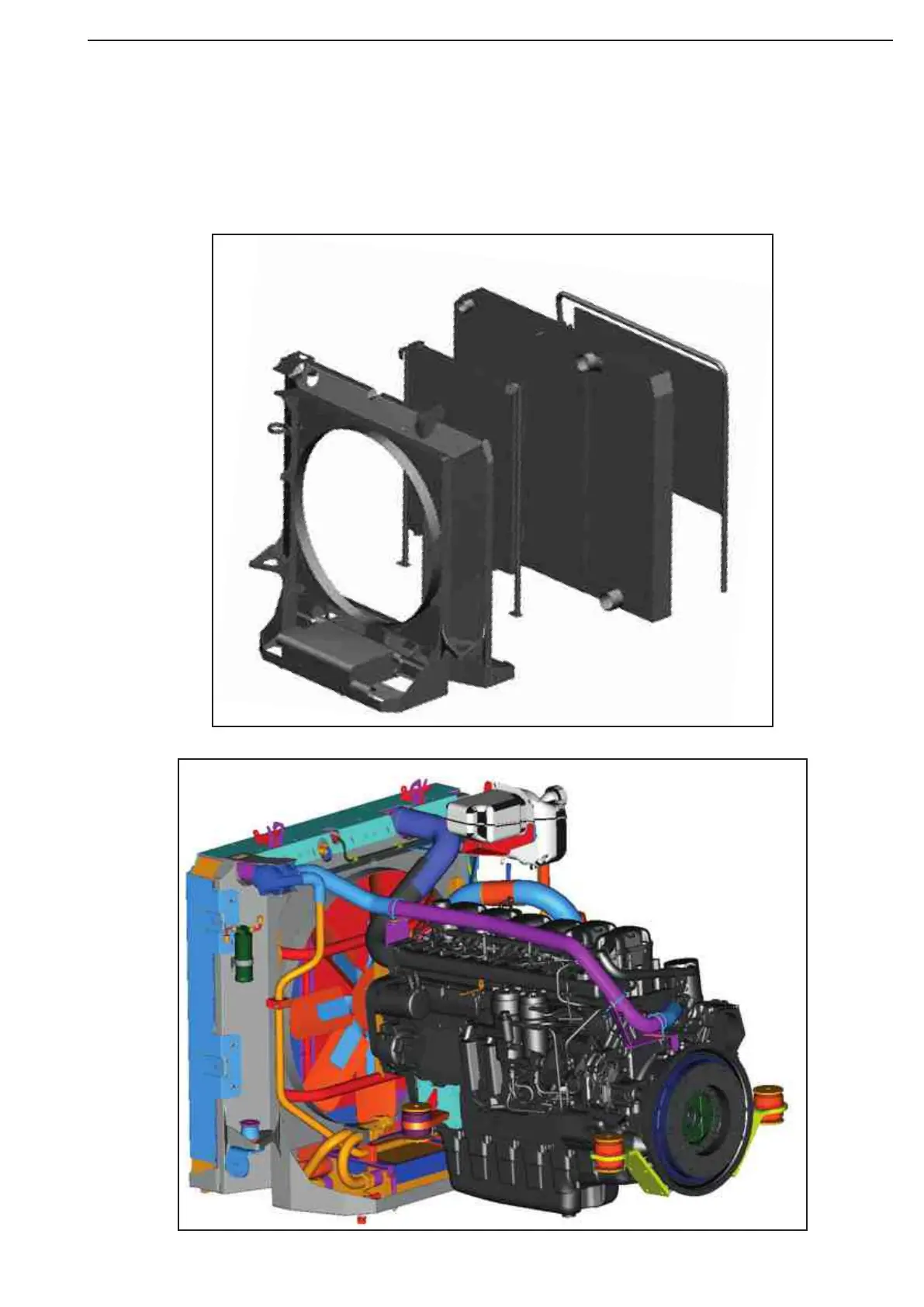

View of the radiator system DA40
Front brake
oil cooler
Cover
Water cooler
Charge air
cooler
Air cooler
condenser
Transmission
oil cooler
Figure 355
Figure 354
