Engine
SHOP MANUAL

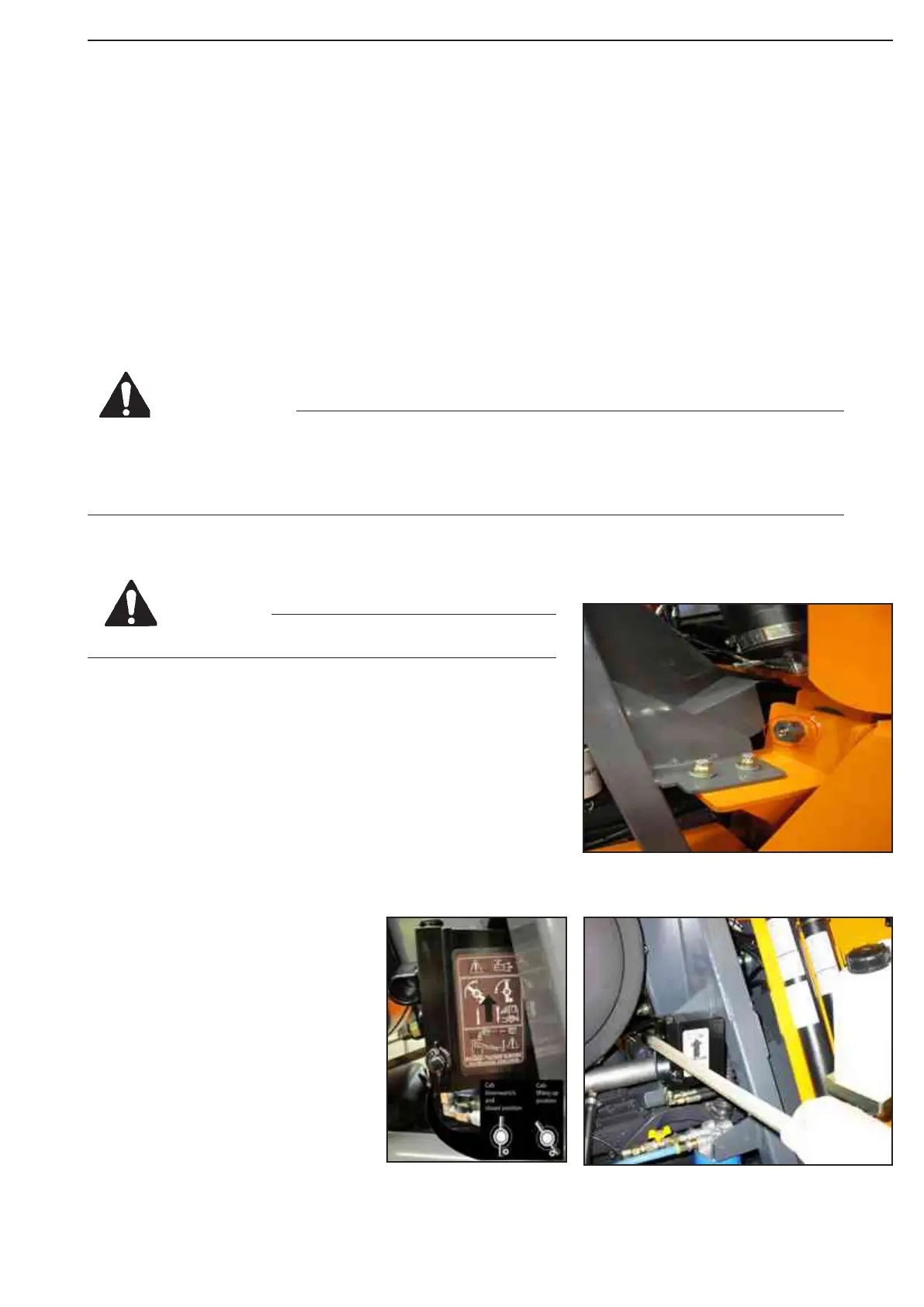

Ch 1 page 11
Removal of engine assembly
Place the dump truck on level ground and apply parking brake.
Apply articulation lock.
Turn off main switch in battery case.
Raise the dump body and lock it with the safety support.
Raise the tiltable cab and lock it with the safety support.
Remove bonnet.
Drain engine coolant.
Look in OPERATION & MAINTENANCE MANUAL chapter 2 for instructions.
Take away the cab bolt, left and right hand side.
M46 mm
Bolt torque: 277Nm
Turn the direction valve on the pump
in lifting up position.
With the handle, pump and raise the
cab.
Place wheel chocks to the front wheel
DANGER
Figure 3
Figure 4
Never turn off battery main switch when engine is running
Never turn off battery mainSwitch when ignition is on
Leave battery main switch on for atleast 5 minutes after engine has completely stopped.
