SHOP MANUAL
Engine
Ch 1 page 12
1
2
3
4
Left side:
1.
Disassemble the cab pump unit from the air filter stand.
2.
Remove the water hose from the pipe socket.
3.
Remove the fuel hoses (3 pcs) and
4.
Disassemble hydraulic hoses
Right side:
1.
Unscrew the hose clamps and remove the pipe bend,
filter - turbo
2.
Disconnect the oil hose from engine brake cylinder and bracket
disassemble the other end at left side on the magnetic valve
3.
Hook up the filter stand in lifting device.
4.
Screw off the fastening bolt for filter stand,
left and right hand side
7
1
1
4
3
5.
Disassemble outlet pipe bend from turbo
6.
Unmount hoses attached to cooling water expansion tank
7.
Disconnect the exhaust pipe from the turbo pipe bend.
2
5
6

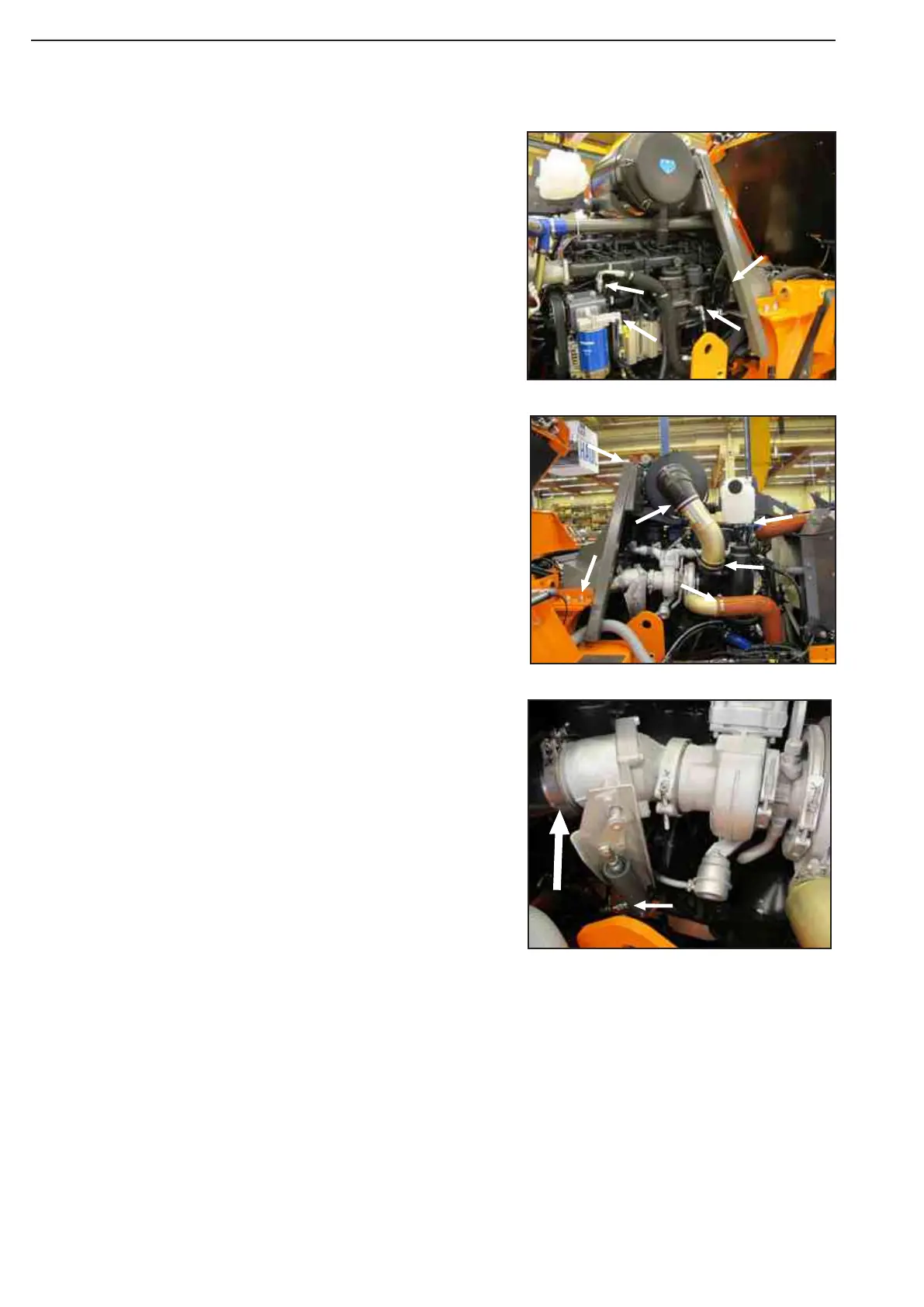

Figure 6
Figure 7
Figure 8
