Engine
SHOP MANUAL
Ch 1 page 105

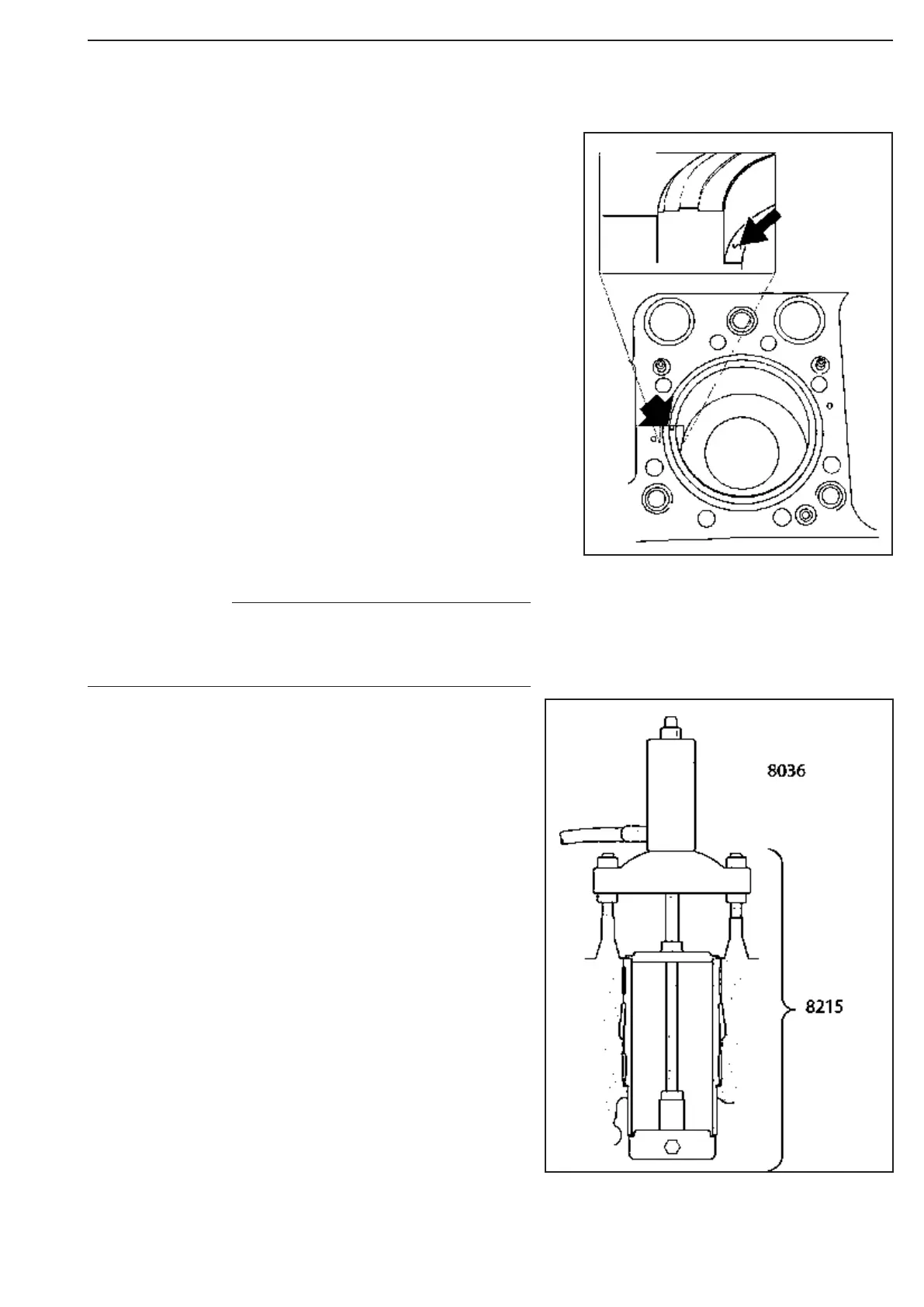

Cylinder liner extractor with hy-
draulic cylinder
Removing the cylinder liners
1. Mark the liners with the numbers 1-6. The
mark is necessary so that the liners can be
refitted in the same place and position as
previously.
2. Withdraw the cylinder liner using puller
8215 and hydraulic cylinder 8036. Fit
spacers under the support lugs to avoid
damaging the surface of the block.
3. Remove the sealing ring in the cylinder
block.
The mark must be made only on the surface indicated
in gure 201. Other surfaces are for sealing, If you use a
marker, you can mark anywhere.
NOTE
Figure 201
Figure 202
