Doosan DA40 - 7.4.6 Bonnet

SHOP MANUALSHOP MANUAL
FRONT WAGON
Ch 7 Page 40 Ch 7 Page 41
FRONT WAGON
7.4.6 Bonnet
Removal
Thoroughly clean the bonnet and the area around for accumulated dirt.
Open the bonnet, and secure with the catcher.
(Ref. Operation and Maintenance Manual 2.19)
Replace two nut with lifting eyes. (See Fig 80)
Attach lifting device in the two lifting eyes, and use a crane to lift to take up the weight of the bonnet.
Unhook the two springs.
Remove the grille by unscrewing the ten fastening screws.
Remove the four bolts securing the bonnet to the bonnet hinge.
Lift bonnet off the dumper and place on the ground in a safe place.
Replacement
Lift the bonnet and position on the bonnet hinge.
Replace the four bolts, and tighten.
Hook the two springs in position.
Remove the lifting device and the lifting eyes, and replace with nuts.

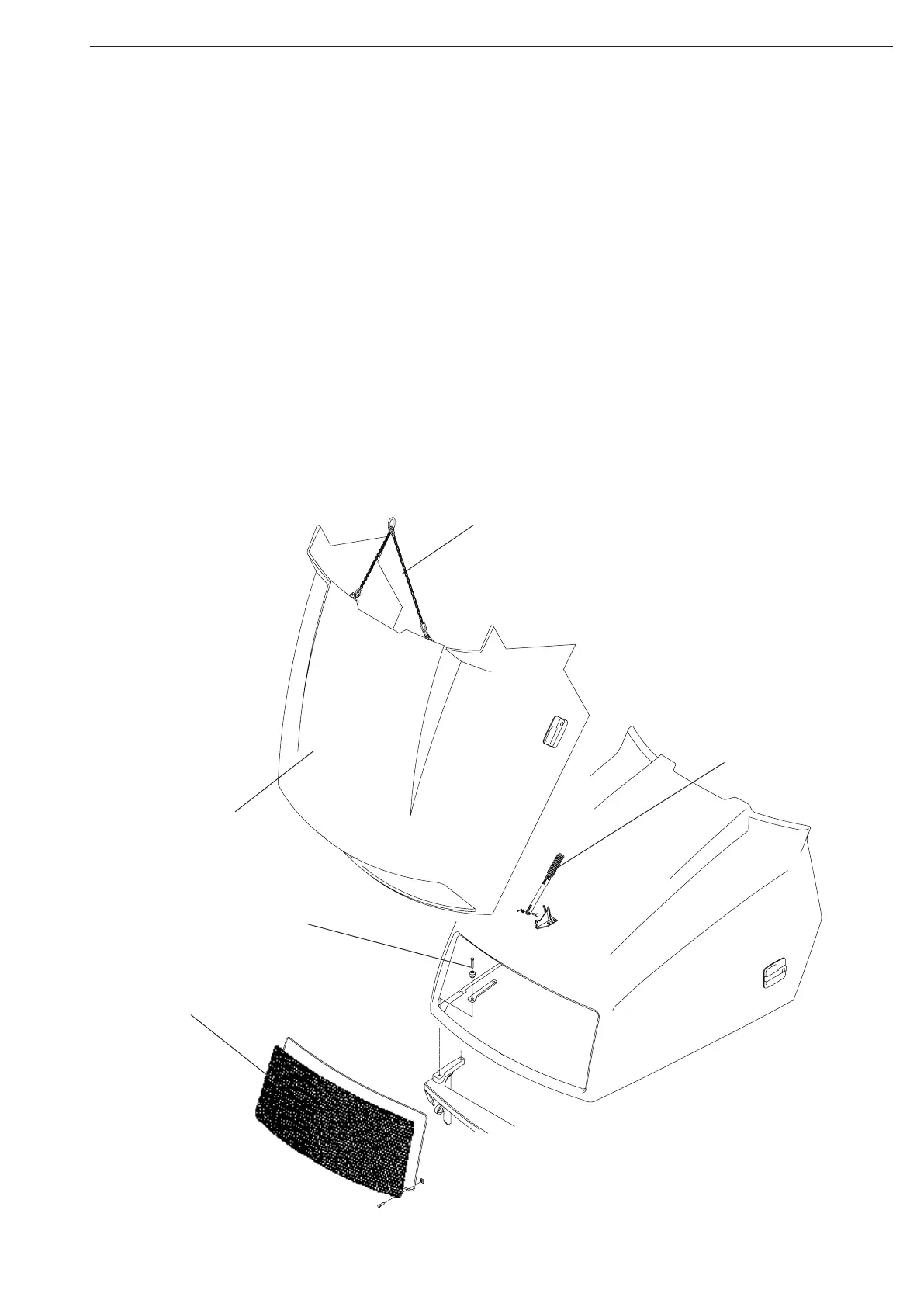

Bonnet
Bonnet
Lifting
Device
Bonnet
Securing
Bolts
Bonnet
Spring
Attachment
Grille
Figure 90
