TRANSMISSION
Before assembling the new transmission you should remove the hy-
draulic pump from the disassembled transmission.
Make sure hydraulic pump is intact then install it on the new transmis-
sion.
Transmission assembly
Place wheel chocks to the front wheel
Place the dump truck on level ground and apply parking brake
Start with the propeller shaft in the articulation hinge.
Release articulation propeller shaft from the transmission output flange.
Apply articulation lock.
NOTE
CAUTION

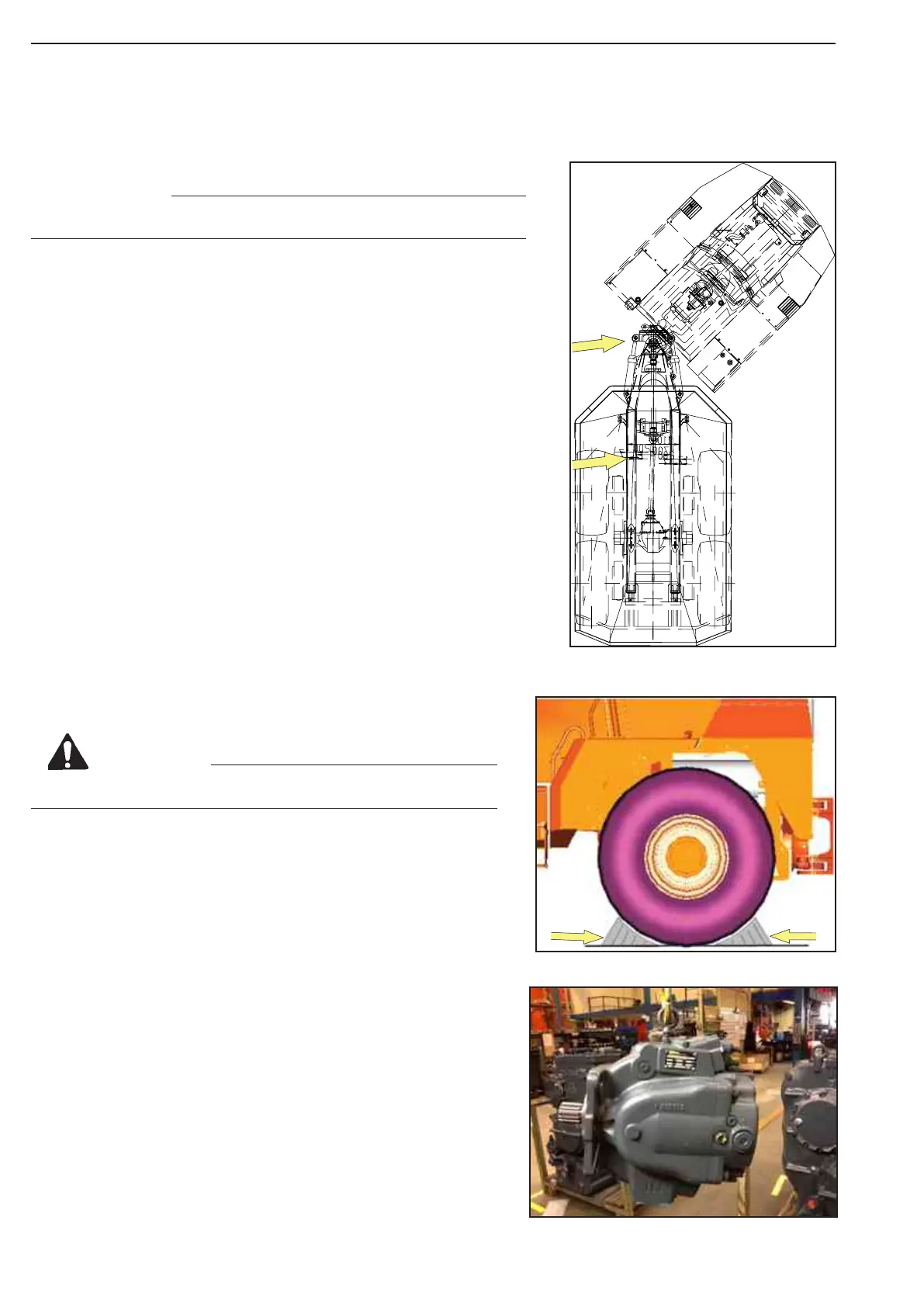

Figure 133
