Doosan DA40 - 7.5.5 Door Damper Cylinder

SHOP MANUALSHOP MANUAL
FRONT WAGON
Ch 7 Page 50 Ch 7 Page 51
FRONT WAGON

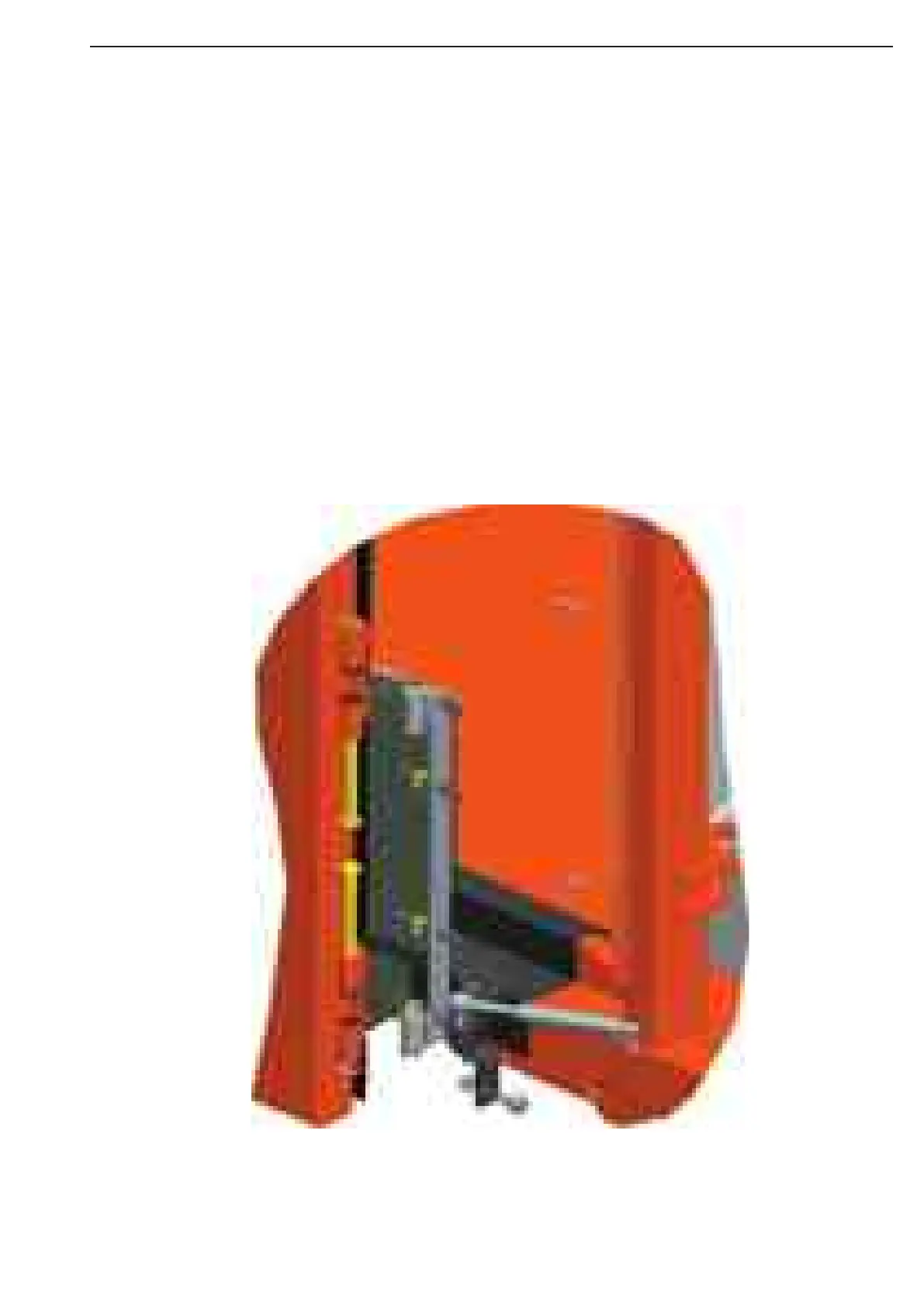

Door Damper Cylinder
Detail seen from inside
7.5.5 Door Damper Cylinder
The Door Damper Cylinder keeps the door in open position when opened, and dampens the door movement.
Removal
Remove floor mat and rear kick panel.
From outside, pull out the expansion lining from the sliding window channel, starting from the end at bottom
center.
Remove sliding window.
Pull out the left wall panel by prying loose the velcro fasteners.
Strap the door in open position.
Remove the door damper cylinder, by loosening the two nuts.
Installation
Adjust the length of the damper cylinder by pushing it together, and position in the mounting holes.
Tighten the two nuts.
Push the wall panel back in position to engage the velcro locks.
Replace sliding window.
Put back rear kick panel and floor mat. (Ref. 7.5.3)
Control
Check the operation of the door, and that no parts are binding.
Figure 109
