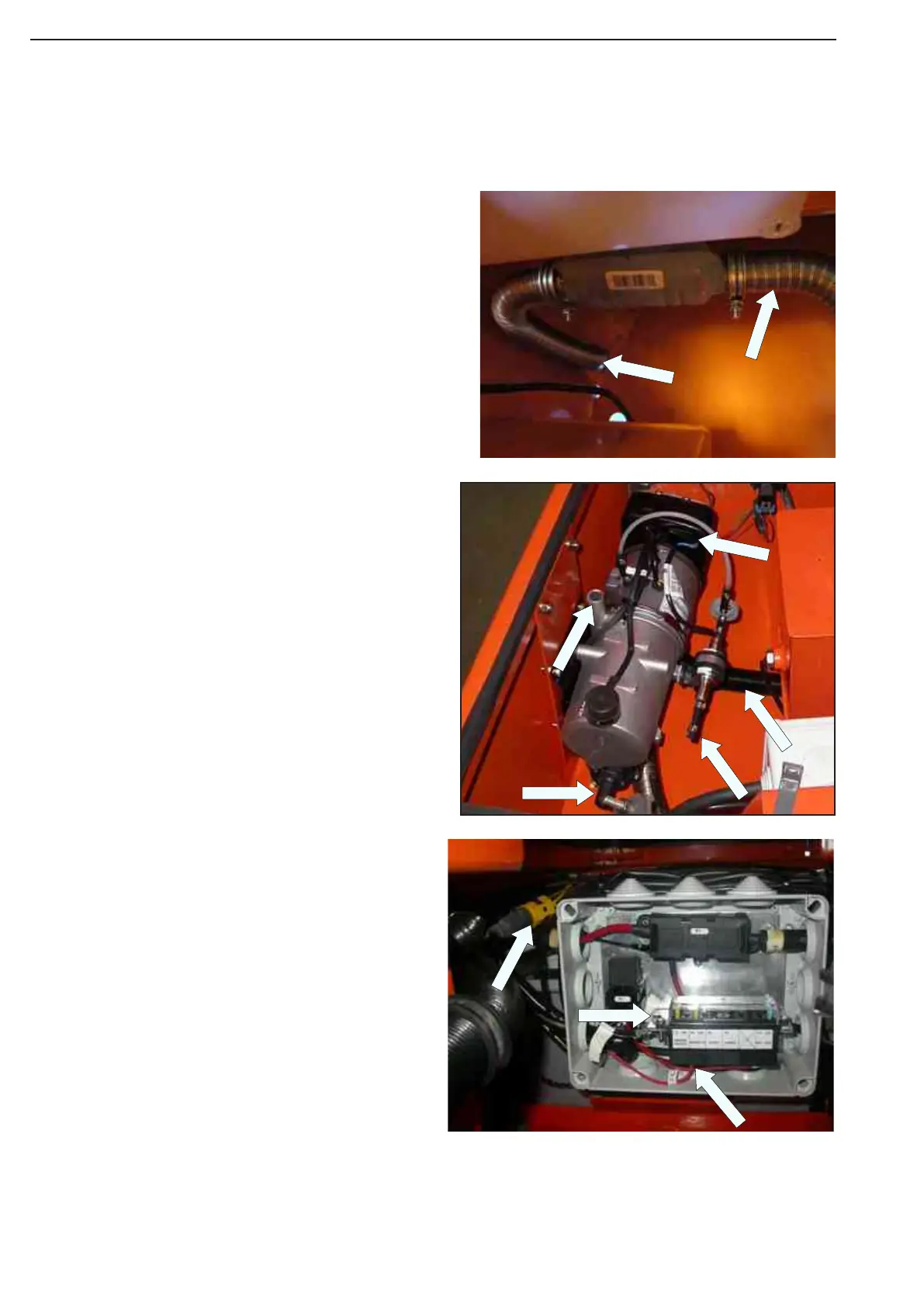

Pipe from exhaust to bottom (1) approximately 370mm
long.
Insert pipe from bottom and up, use clamp to lock it into
possition on the inside.
Pipe from exhaust to webasto (2) approximately 490mm
long
Assemble cooling hoses(1), power cable(2), fuel hose(3)
and air inlet(4).
Cooling hose from engineblock to heater should be moved
and joined with hose from webasto.
2
1
1
Brown wire(1) to earth and red wire(2) to F4 out (at-
tach to front row pin)
Connect power cable(3)
3
4
1
2
3
Figure 26
Figure 25
Figure 24
2
1
