SHOP MANUAL
TRANSMISSION
Ch 2 page 52 Ch 2 page 53
TRANSMISSION

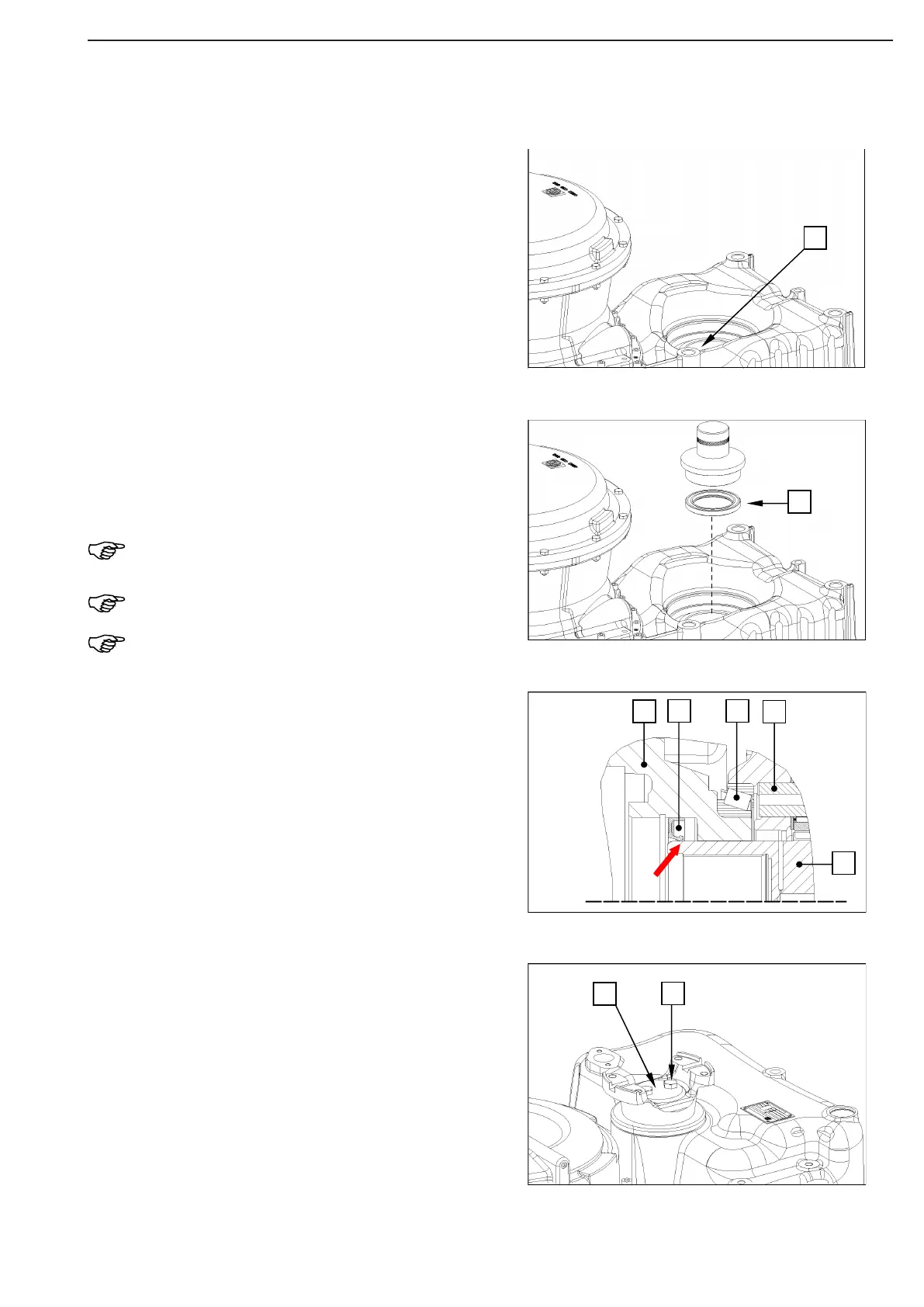

Exchange of shaft seal ring towards LKV axle
insert
Removal of shaft seal ring
Remove the shaft seal ring (1).
Fitting of shaft seal ring:
Fit the shaft seal ring 85X120X12 (1) with driver tool, with the
sealing lip facing the oil chamber ( see figure 123 )
(S) Driver tool DOOSAN P/N HAVE TO BE CREATED
Use of the specied driver tool (S) ensures the
exact installation position!
Wet outer diameter (rubber-coated) with spirit!
Fill space between sealing lip and dust lip
with grease!
Legend to gure -3:
1 = Transmission housing
2 = Shaft seal ring 85x120x12
3 = Tapered roller bearing
4 = Planetary carrier
5 = Output shaft
Exchange of shaft seal ring towards rear axle
Removal of shaft seal ring
Loosen the hexagon screws (1) and remove the disk (2).
1
1
1
2
3
4
5
1
2
Sealing of outputs towards rear axle and LKV axle insert
Figure 124
Figure 123
Figure 122
Figure 125
