Doosan DA40 - Axle and Tandem housing Bearing; Cross section

SHOP MANUAL
DRIVE LINE
Ch 3 page 176 Ch 3 page 177
DRIVE LINE
Axle and Tandem housing Bearing
DRIVELINE-VIEW BOGGI AXLE
The tandem housing reduction gear consists of a pinion gear which transfers the rotation power through idle
gears, end gears, and wheelshafts to the driven wheels.
The tandem (spur) gears are in constant mesh, driving both wheels at the same side.

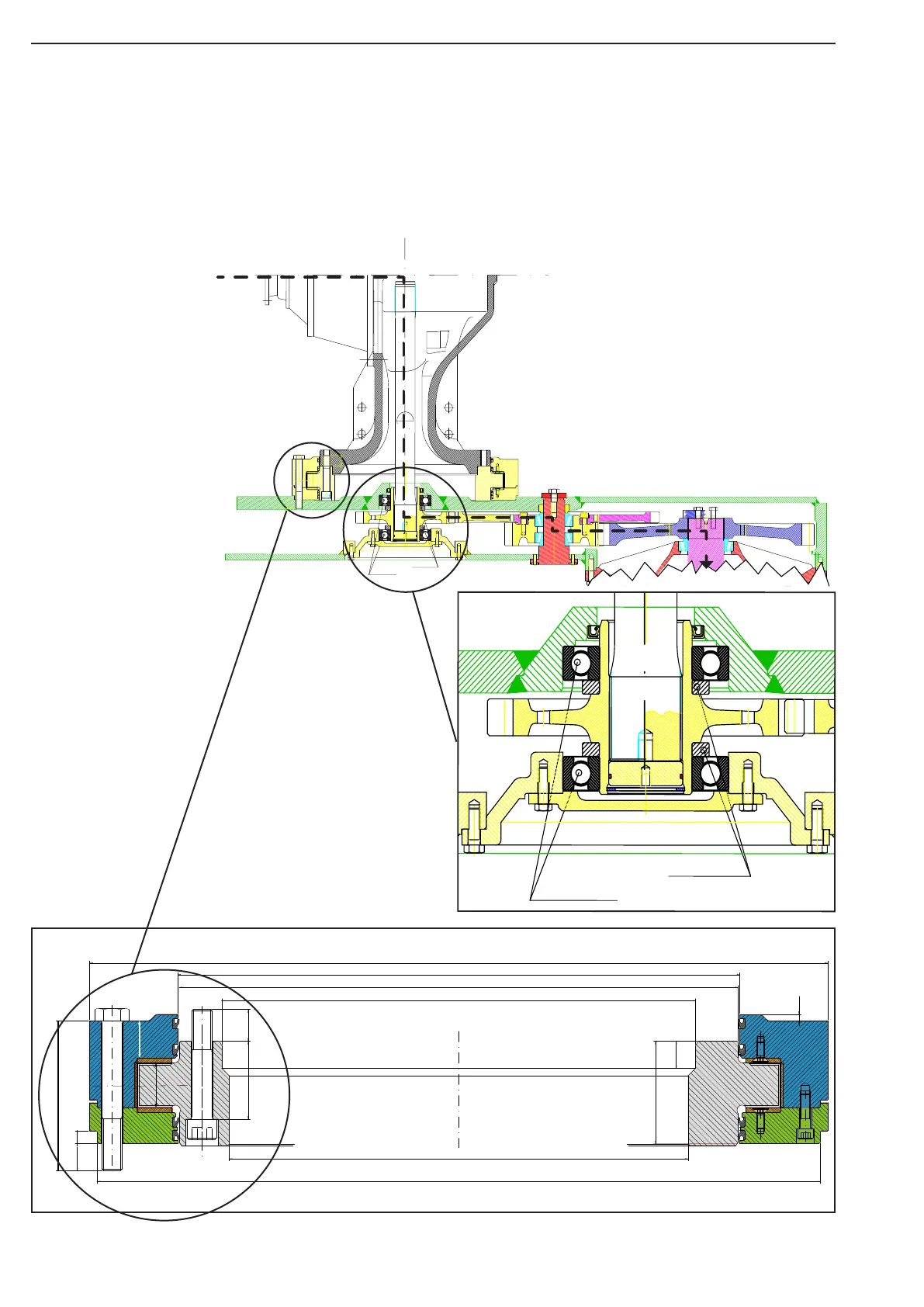

Cross section
45
78
32
460
27
725
102,5
740
Ø
1
50
27
13
475
560
563
6,5
Ø
Ø
Ø
Ø
Ø
37
Tandem bearing
Distance ring
7
45
32
37
Ball-bearing
Pinion unit
Distance ring
7
45
32
37
Ball-bearing
Tandem bogie
Figure 516
