SHOP MANUAL
Engine
Ch 1 page 164
Output test

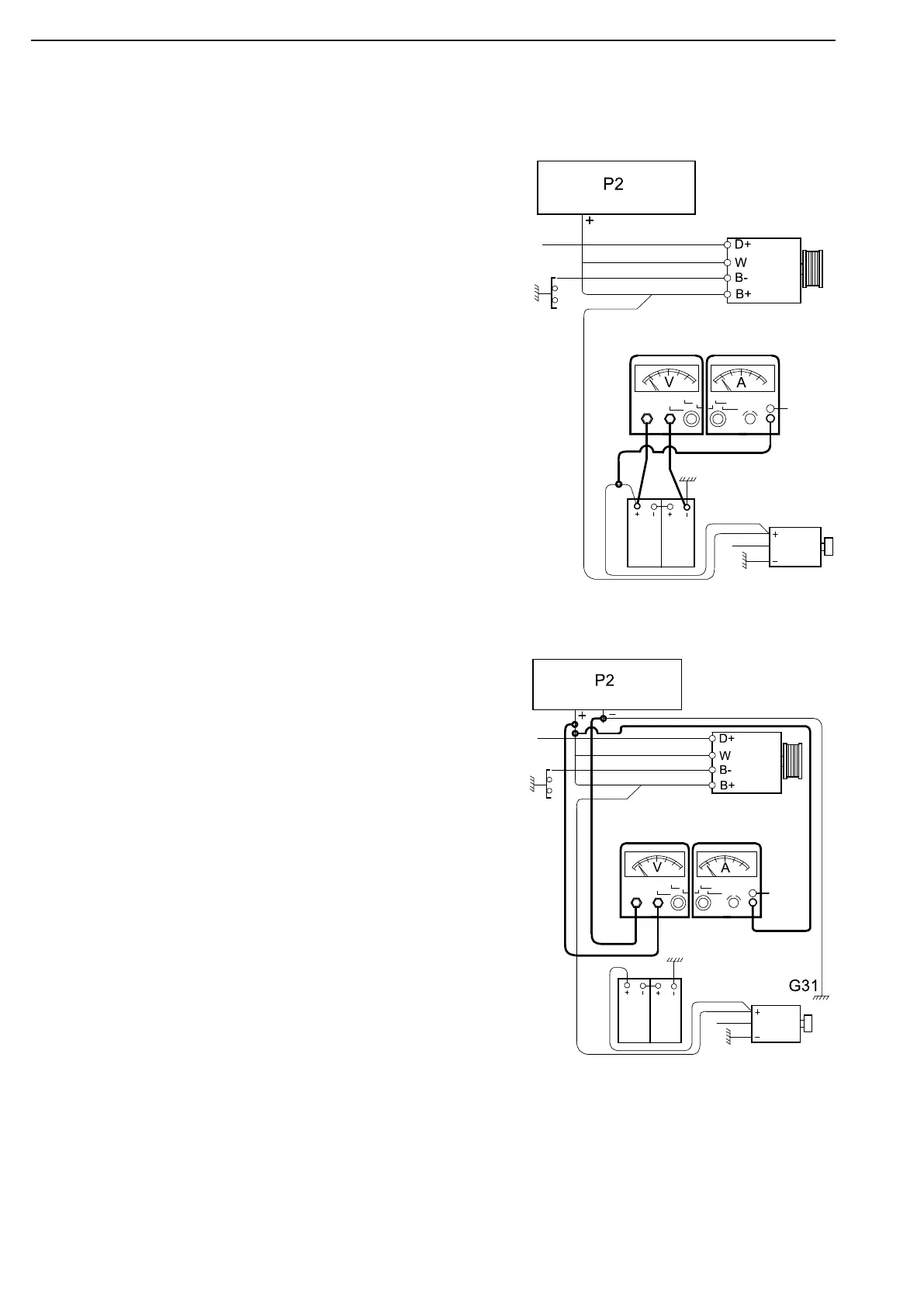

1. Connect an ammeter and a voltmeter to the batteries as illus-
trated.
Connection to batteries
2. Start the engine and run it at idling speed for a few minutes.
Then note how much current is supplied from the alternator to the
batteries. Check at the same time that the voltmeter does not fall
below 27 V. Run the engine at approximately 500 rpm.
3. Connect the same equipment as before to the central electric
unit as illustrated.
Figure 319
Figure 320
