Doosan DA40 - Disassemble the tandem unit from the rear frame

SHOP MANUAL
DRIVE LINE
Ch 3 page 110 Ch 3 page 111
DRIVE LINE

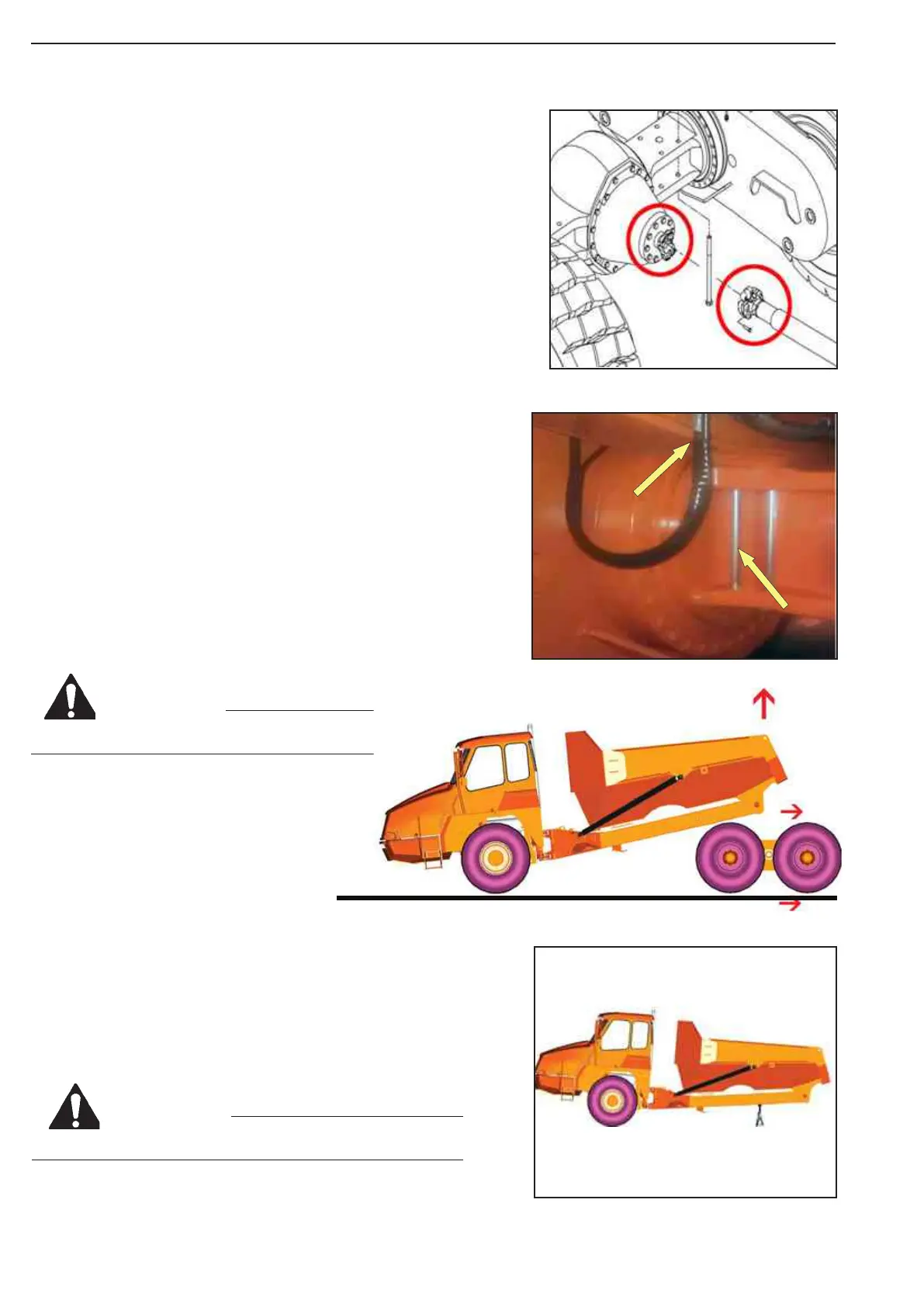

Disassemble the tandem unit from the rear frame
Unfasten the rear propeller shaft from the differential flange
M12x60 DIN912-12.9
Secure the rear propeller shaft for damage with a strop
By crane:
Lift the rear frame up and move the tandem
unit backwards
Place safety supports under the rear frame.
Be aware of the propeller shaft.
Be aware of personal injury.
Be aware of personal injury.
It is also possible to disassemble the tandem housing without dis-
assemble the axle housing. See note on next page.
1 Disassemble 2 brake hoses from Tandem housing
LHS and RHS
Disassemble 2 lubrication hose from Tandem housing
LHS and RHS
2 Disassemble axle housing screws (4 in each side).
Screw M24x380 DIN931-10.9
1
2
WARNING
WARNING
Figure 312
Figure 311
Figure 310
Figure 309
