DRIVE LINE
MEASURING BRAKE FLUID PRESSURE
1. Stop the machine on level ground and apply the parking brake.
2. Connect a pressure gauge to the test point rear frame. (See figure 162)
4. Depress brake pedal fully down.
*STANDARD VALUE: Front 62,1±5 bar
Rear 62,1±5 > 3,1 bar
Service brakes
Brakes

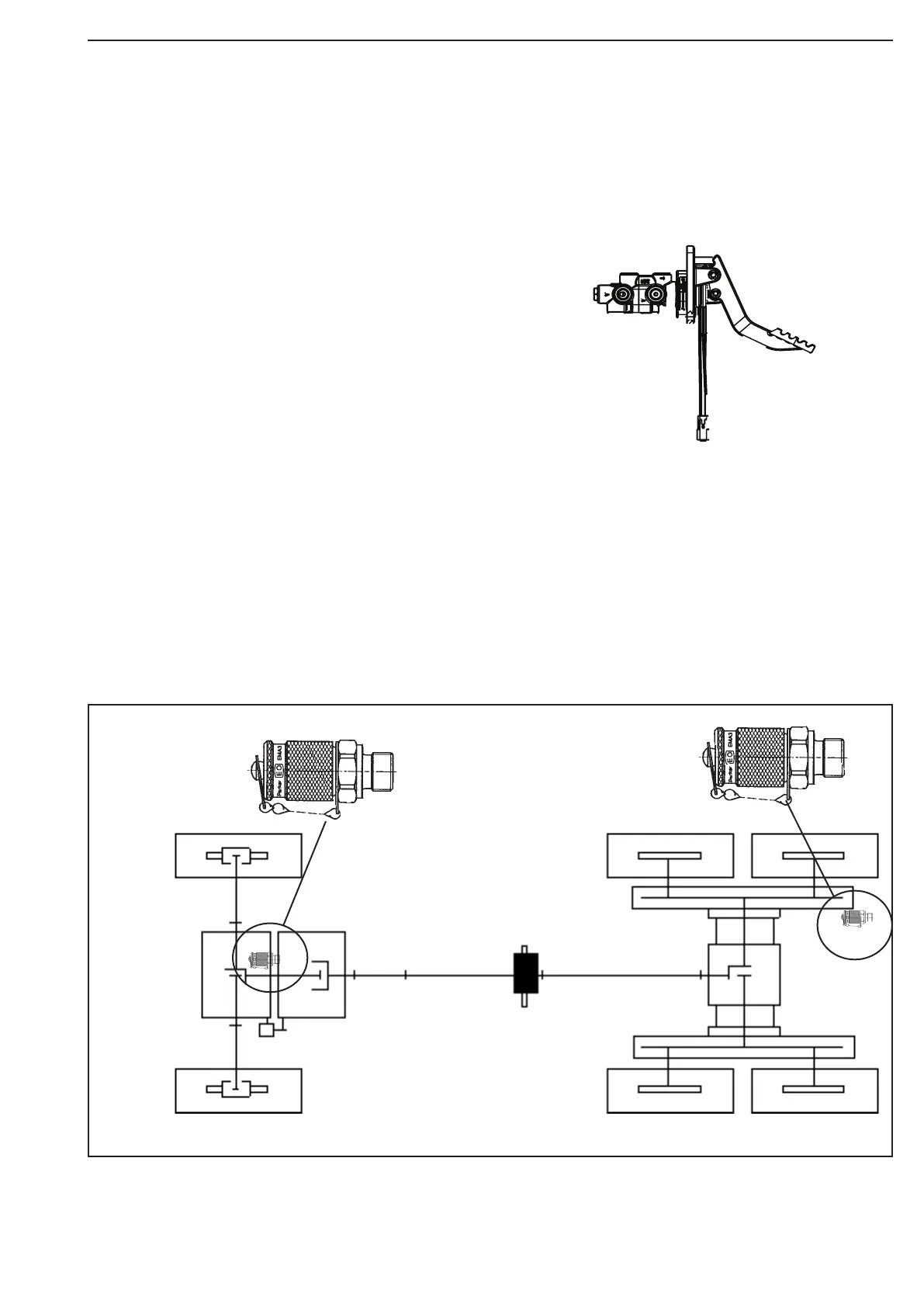

Figure 161
Figure 162
