SHOP MANUALSHOP MANUAL
FRONT WAGON
Ch 7 Page 14 Ch 7 Page 15
FRONT WAGON
Articulation Hinge System
Articulation
Bearing
Articulation
Hinge
Steering
Cylinder
Articulation
Lock

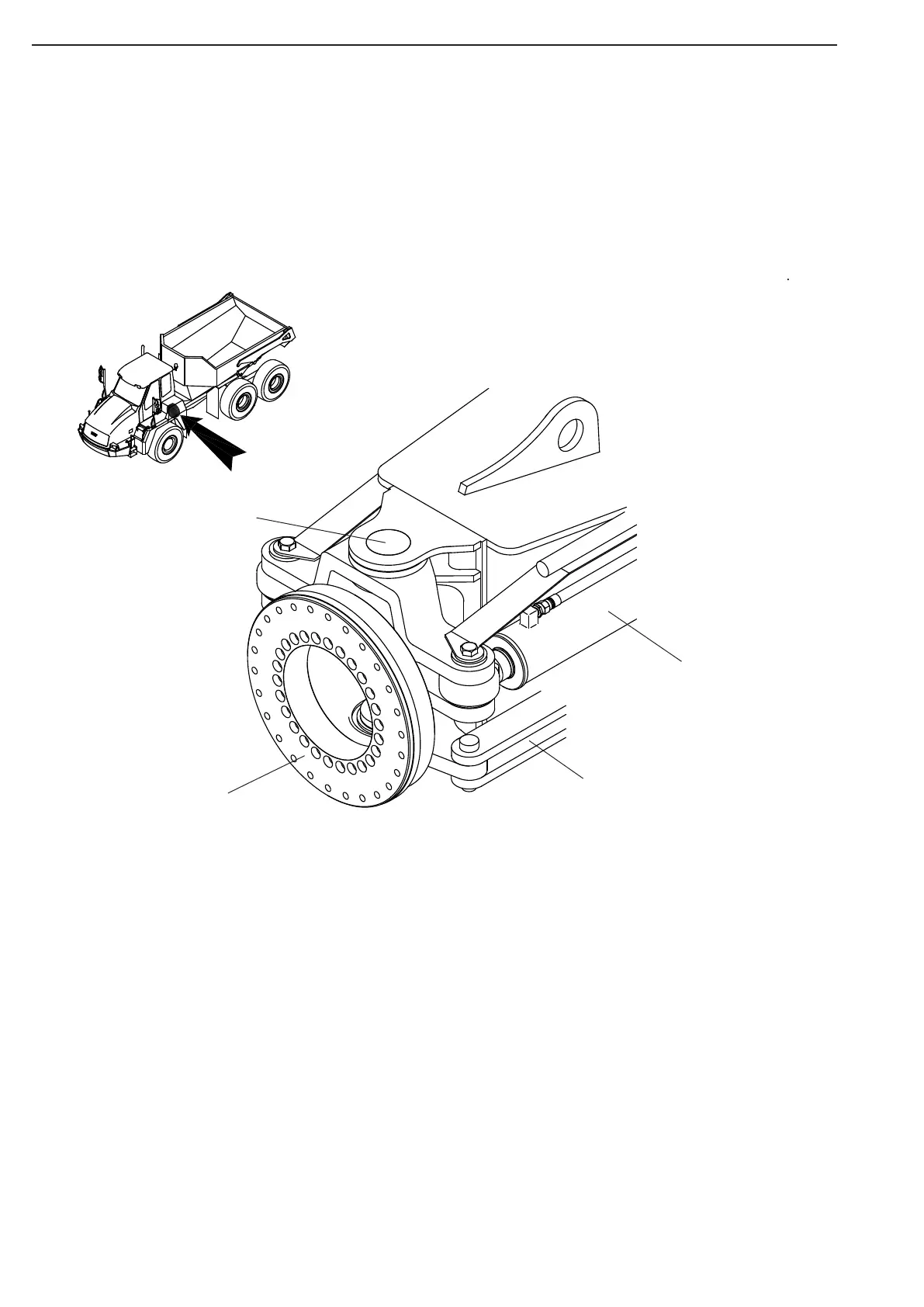

The Articulation Hinge System consists of the Articulation Hinge, and the Articulation Bearing.
The articulation hinge is the turning point of the steering motion, and the articulation bearing permits the front
wagon and the rear wagon to roll relative to each other during driving.
7.3 Articulation Hinge System
Figure 27
