FRONT WAGON
Ch 7 Page 38 Ch 7 Page 39
FRONT WAGON
The Mudguards cover the front halves of the front wheels, and also act as a bridge from the fender working
platform towards the diesel fuel tank on the right side, and to the cab door and hydraulic tank/central lubrication
on the left side.
Removal
Thoroughly clean the mudguard and the area around for accumulated dirt.
Make sure the main battery switch is turned off.
Remove actual wheel.
Open the bonnet.
Remove any electrical connections to the mirror,
remove clamps, and pull back the cable.
Remove the mirror bracket.
Remove external parts that will be re-used if mudguard
is going to be replaced by a new.
Release the three bolts securing each mudguard to the
front frame.
One is accessible from the wheel well, one is accessible
from the engine compartment, and one is accessible
from the underside of the front frame.
Lift mudguard off the dumper.
Check attachment points, and repair any damages to
ensure proper fit of the new mudguard.
Installation
Position the mudguard on the front frame, and secure
by tightening the three fastening bolts.
Replace the external parts. New parts when necessary,
or re-use from the old mudguard where possible.
Replace the mirror bracket.
Replace any electrical cables and clamps removed,
and connect.
Close the bonnet.
Replace the wheel.
Control
Check that all parts are located as
before removal.
Turn the main battery switch on,
and check the function of electrical
components affected.

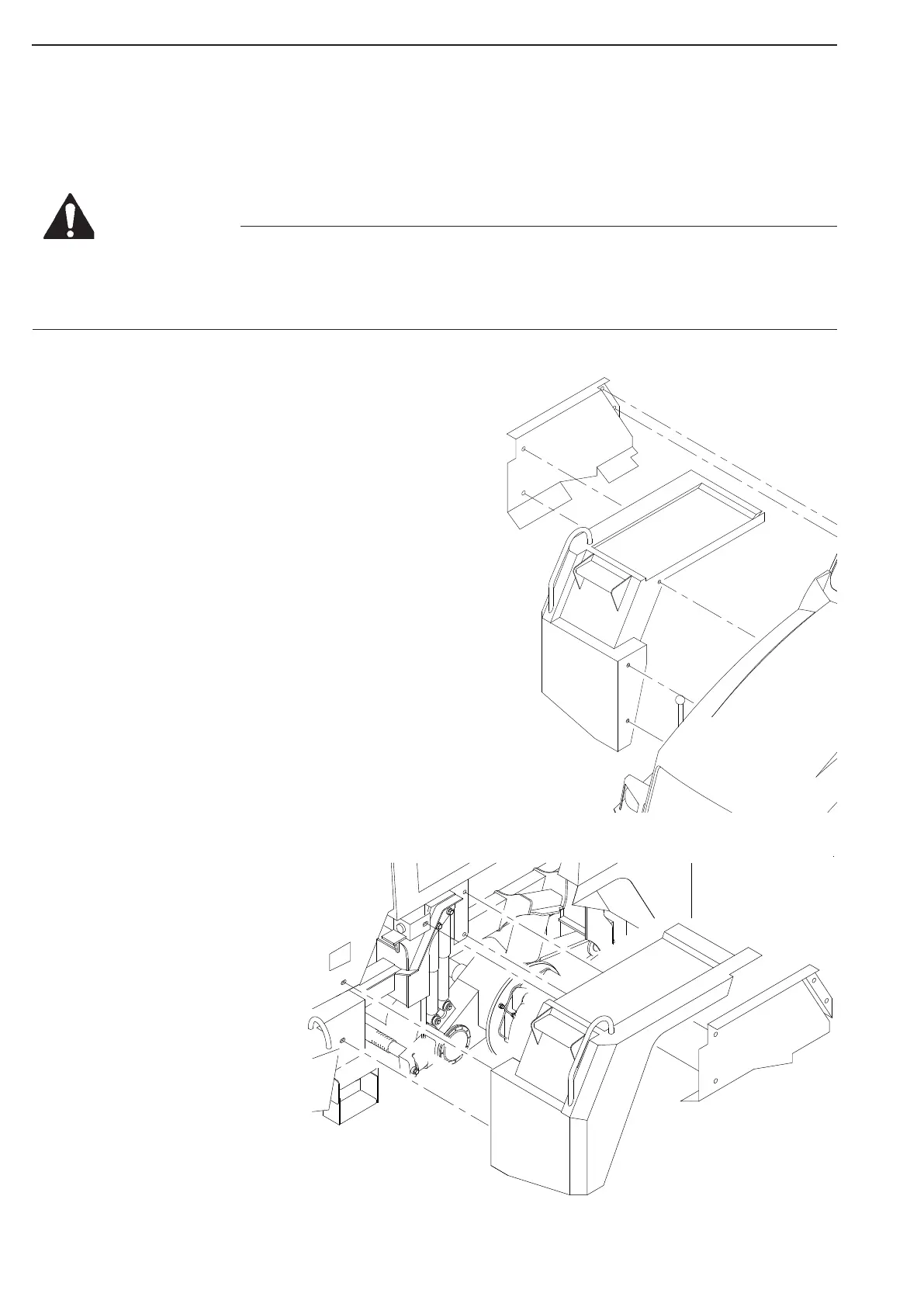

Mudguard LH
7.4.3 Mudguard
Figure 85
Mudguard RH
Figure 84
Never turn off battery main switch when engine is running
Never turn off battery mainSwitch when ignition is on
Leave battery main switch on for atleast 5 minutes after engine has completely stopped.
WARNING
