Doosan DA40 - Disassembly the rear wheel hub

SHOP MANUAL
DRIVE LINE
Ch 3 page 150 Ch 3 page 151
DRIVE LINE

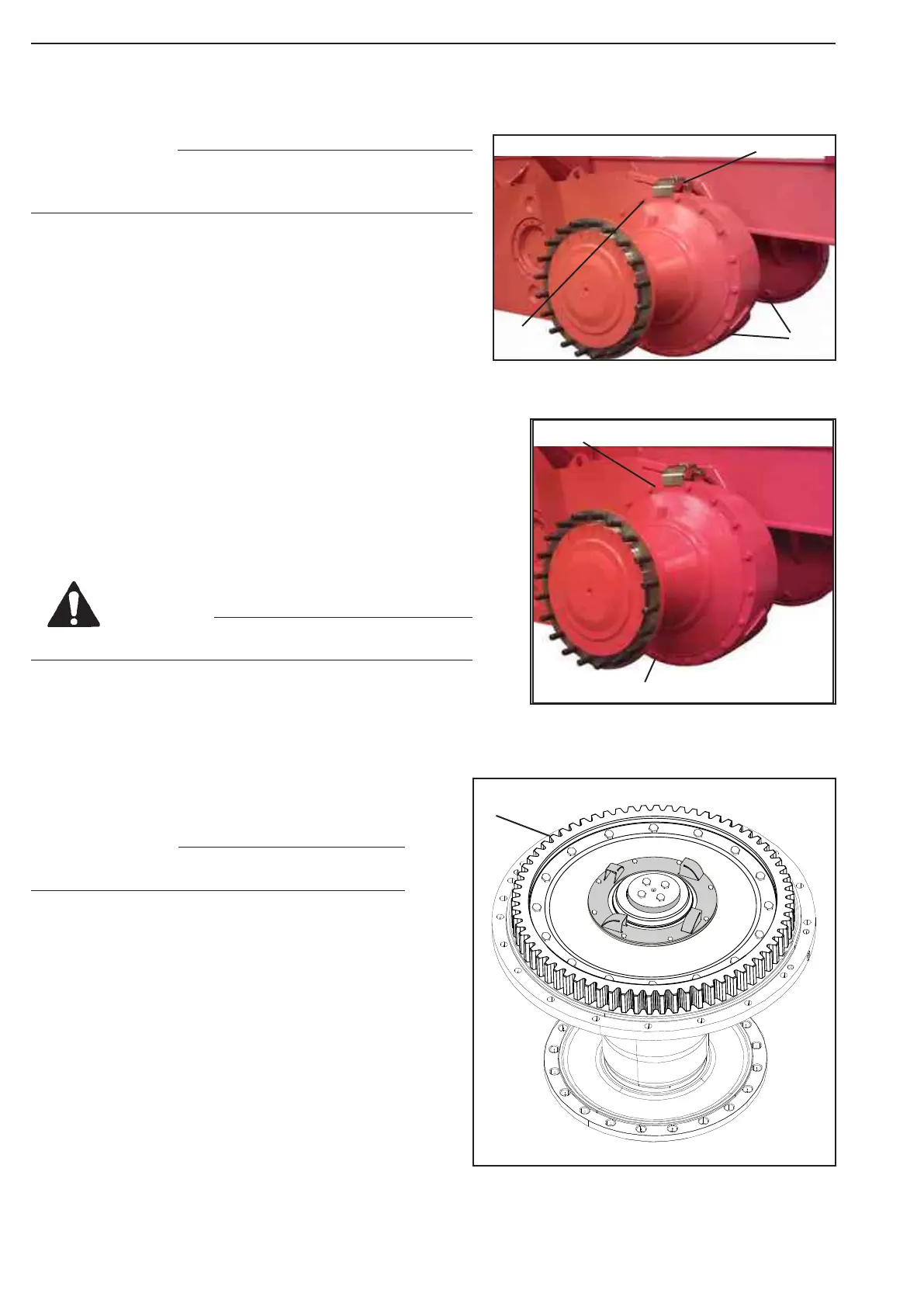

Disassembly the rear wheel hub
Before disassembly see the chapter 3 section: Safety
precautions
Drain the oil (A).
Loosen the drain screw plug on the tandem housing.
Disconnect the brake hose from hub (C)
Disconnect screws (B)
20 x M16x70 ISO4014-10.9
20 x Washer 17x30x3 NS-ISO
Tightening torque 280 Nm.
C
B
D
D
Insert M16 screw in top and bottom threaded hole (D) to lossen
the hub from the tandem housing.
Inserrt lifting eye (M16) in the upper threaded hole (D).
Fasten the strap and carefylly move the hub from the tandem
housing.
Be aware of personal injury
Disassemble the end plate (15) from the wheel axle
4 x Screw (18) M16x50 ISO4017-10.9
Tightening torque 280 Nm.
15
2
A
NOTE
DANGER
Take care of the shims
NOTE
Figure 453
Figure 452
Figure 451
