Doosan DA40 - Disassemble the WDB-brake housing

SHOP MANUAL
DRIVE LINE
Ch 3 page 20 Ch 3 page 21
DRIVE LINE
1
2
1
2
3
1
2
1
2

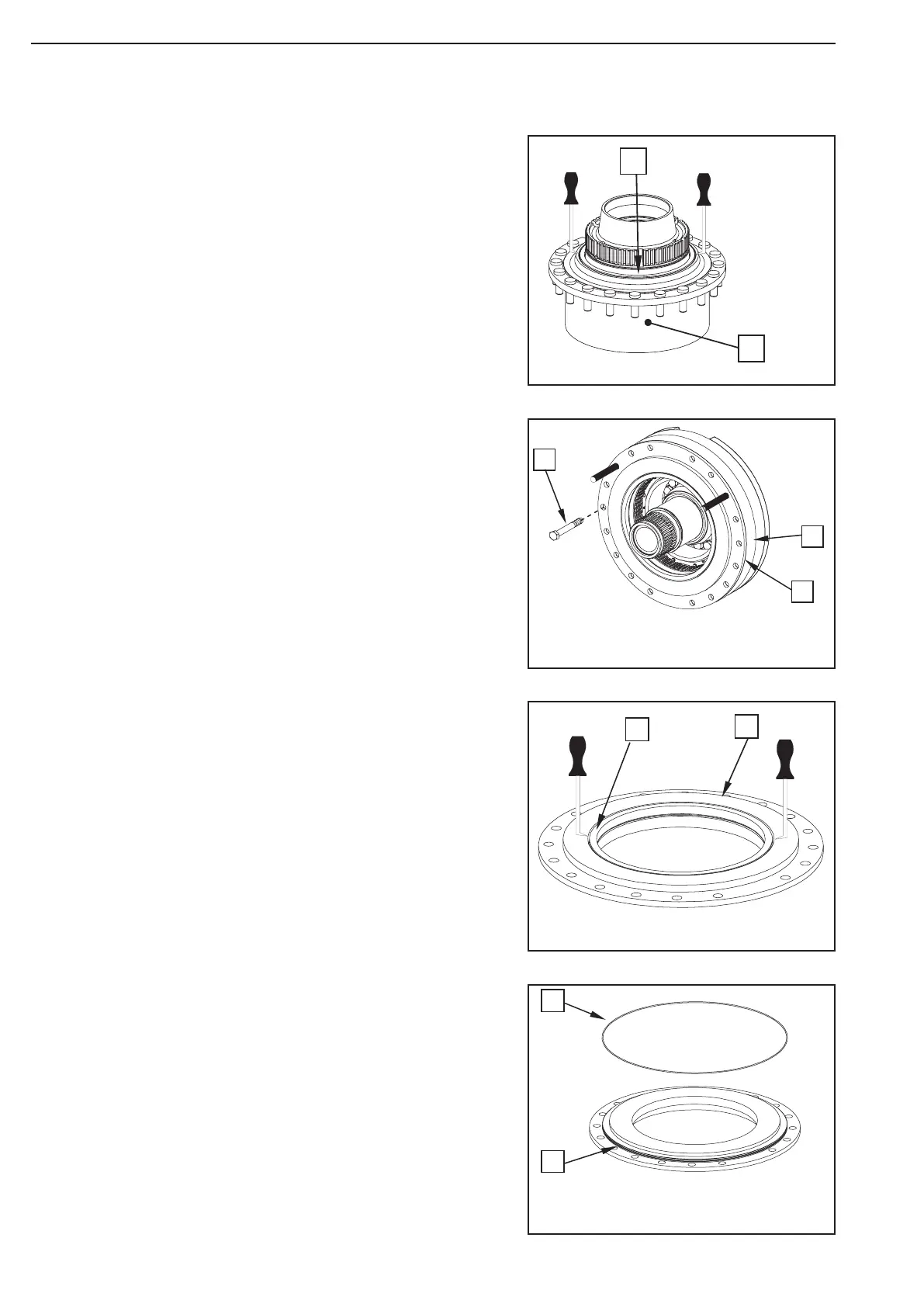

By means of lever action press slide ring seal (1) out of the hub
(2).
(S) Resetting device 504210
Loosen hexagon screws (3) and separate the sealing
holder (2) from the brake housing (1).
Install adjusting screws.
(S) Adjusting screws 514650
By means of lever action press slide ring seal (1) out of the
sealing holder (2).
(S) Resetting device 504210
Remove O-Ring (1) from the sealing holder (2).
Disassemble the WDB-brake housing
