DRIVE LINE
Move tandem housing away from rear axle unit, and lower safely
to ground.
Clean the mating flanges for traces of sealing compound.
Safeguard the tandem housing with the crane
Disassembling the axle housing from the tan-
demhousing
Lift one side of the tandem unit and place safety supports under
the axle housing.
Be sure that the tandem unit is safely placed at
the safety support.
Disassemble wheel nuts
20 pcs Width across flat: 30 mm
remove wheels.
Disassemble the outer screws for the bearing unit
28 pcs. M20
Be aware of personal injury.
WARNING

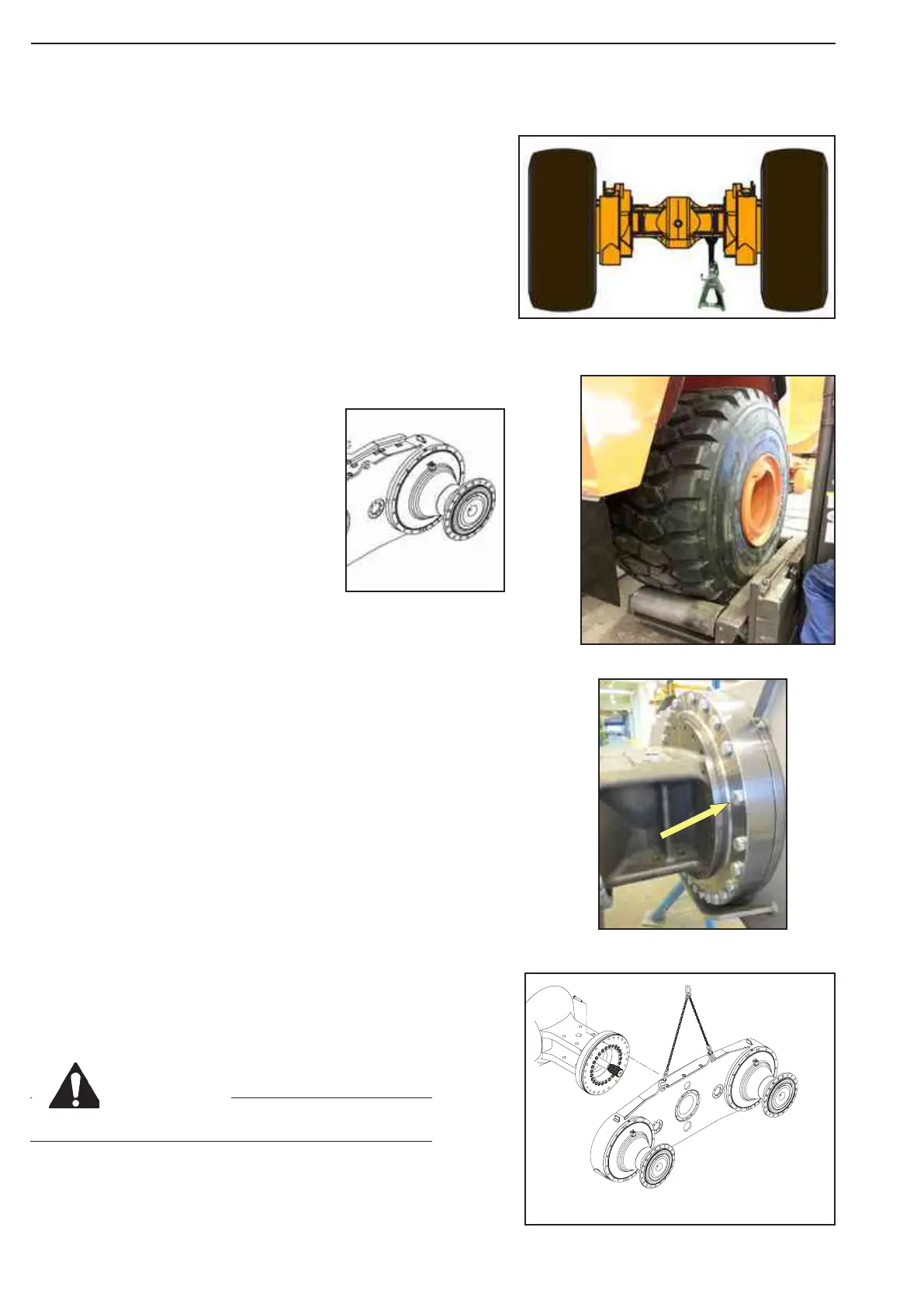

Figure 316
Figure 317
Figure 318
Figure 320
Figure 319
