SHOP MANUAL
DRIVE LINE
Ch 3 page 112 Ch 3 page 113
DRIVE LINE

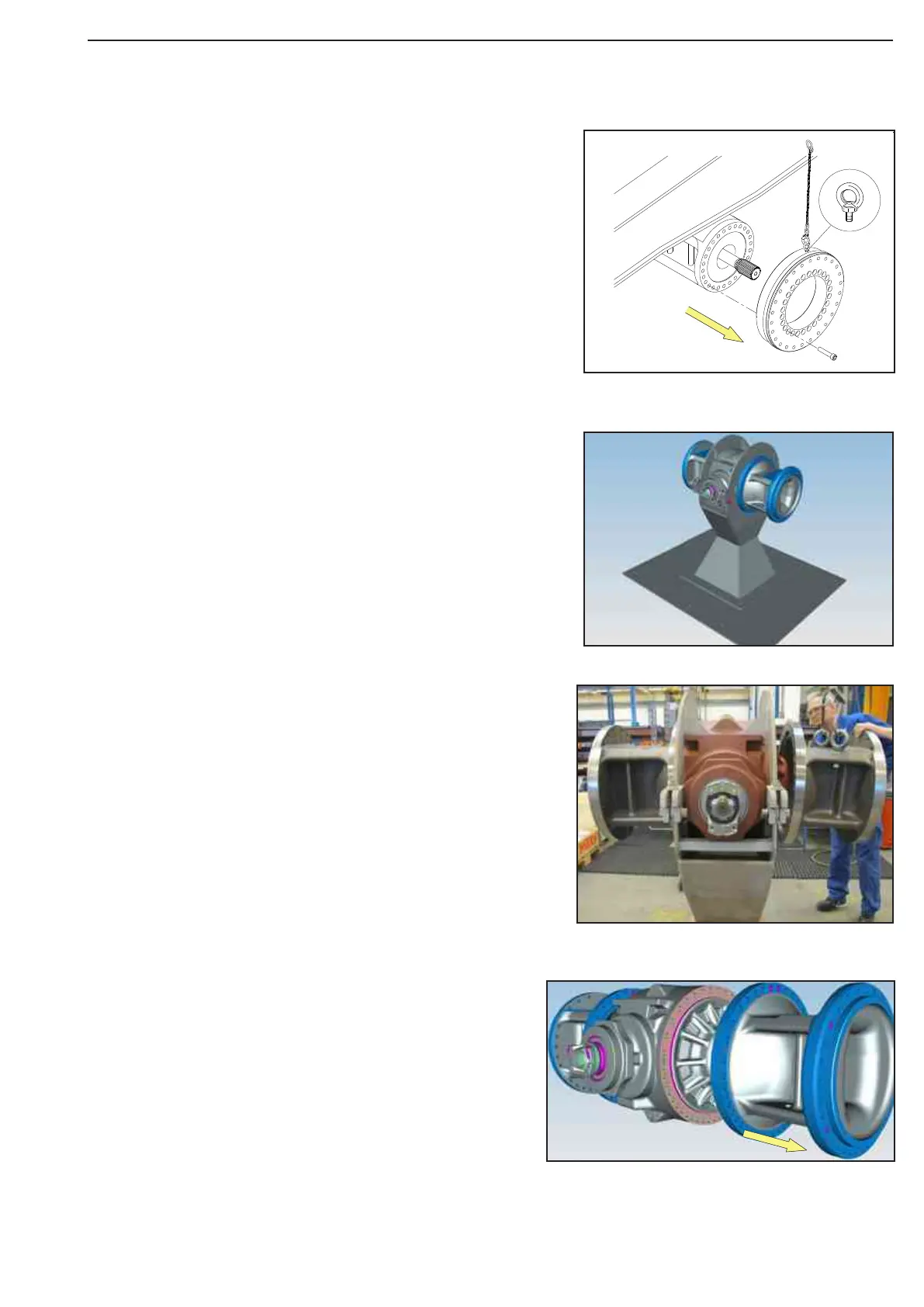

Remove articulation bearing from differential adapter.
Figure 321
Secure differential properly in jigg or with safety support.
Disassemble the differential adapters from axle housing.
Figure 322
Figure 323
Doosan jig solution used for disassembly and assembly of rear
axle, see figure 322. Other secure solutions can be used.
Mox no: 800493
Figure 324
Secure adapters before removing
bolts.
