SHOP MANUAL
DRIVE LINE
Ch 3 page 198 Ch 3 page 199
DRIVE LINE

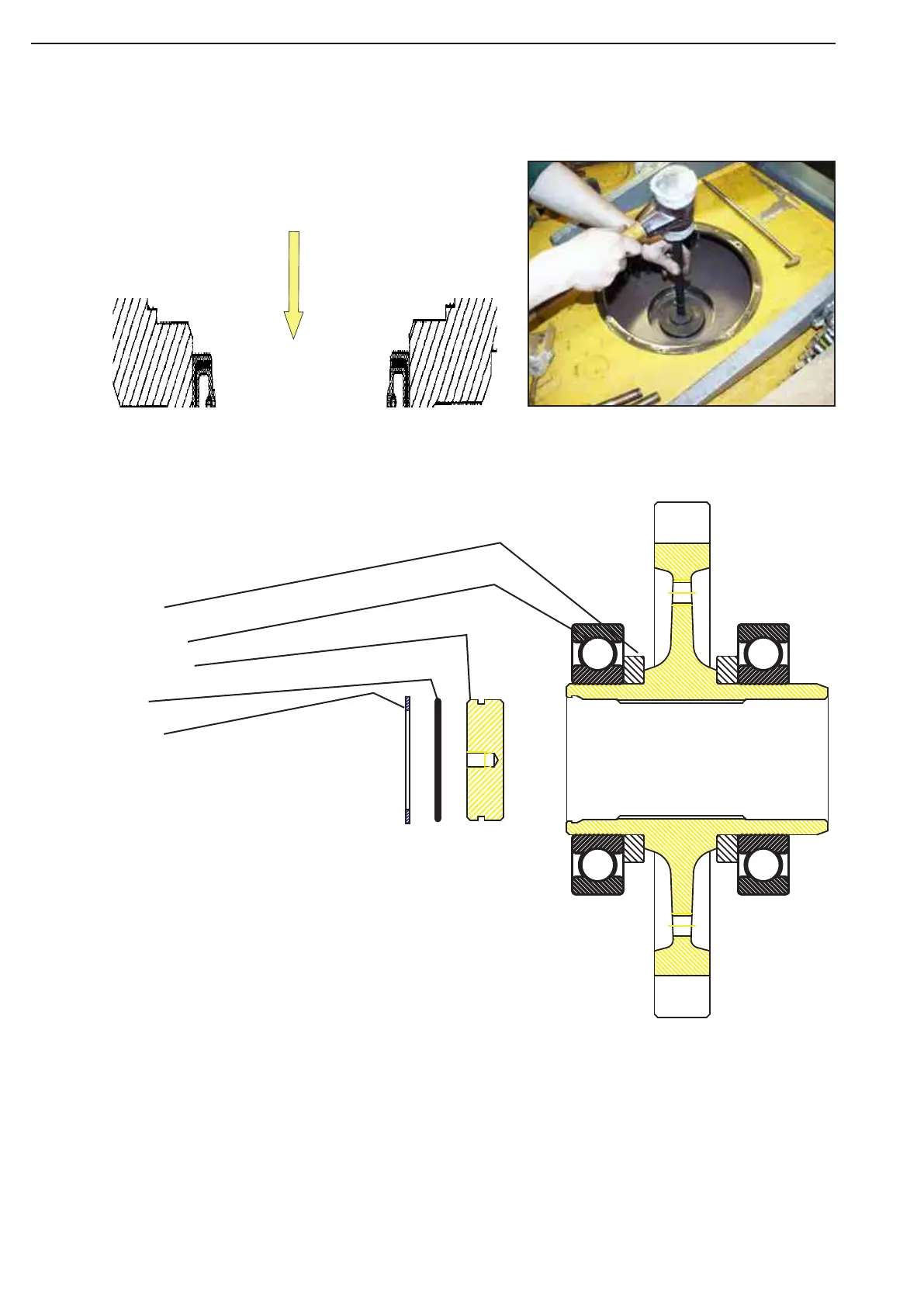

Assemble new oil seal
Assembly piniong in the tandem house
Assemble the pinion drive
2 Distance ring
2 pcs. ball-bearing
1 pcs. thrust washer
1 pcs. O-ring
1 pcs. snap ring
Assemble the distance ring.
Heat the ball bearing to circa 100°C
and assemble to the end of the pinion drive.
Assemble the O-ring to the thrust washer,
apply oil and assemble the thrust washer
into the pinion drive.
Assemble the snap ring
Figure 576
Figure 577
Figure 575
