SHOP MANUAL
Ch 6 page 10
ELECTRICAL SYSTEM

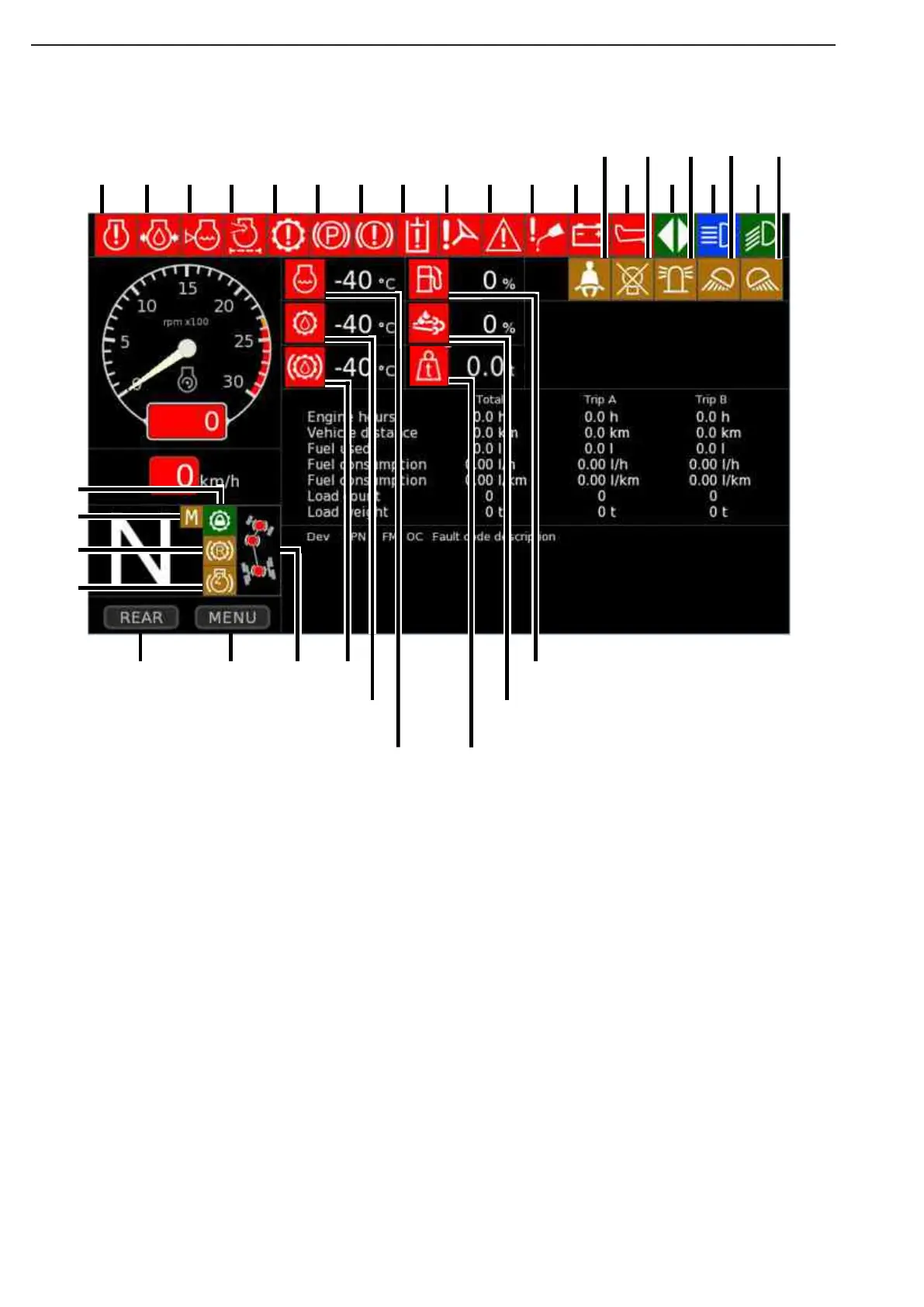

LCD Instrumentation Unit
Warning Lights Display
1. Engine failure warning
2. Low engine oil pressure warning
3. Low coolant level warning
4. Air filter warning indicator
5. Transmission failure warning
6. Parking brake activated indicator
7. Brake failure warning
8. Hydraulic system failure warning
9. Emergency steering warning
10. General failure
11. Lubrication system warning
12. Battery charge warning
13. Body down indicator
14. Direction light indicator
15. High beam indicator
16. Main light indicator
17. Rear working lights
18. Working lights and extra high beam
19. Rotating beacon light
20. Lamp fault
21. Seat belt warning
22. Transmission Lock-up indicator
23. Automatic/Manual Transmission status
24. Retarder brake indicator
25. Engine brake indicator
26. Rear camera view button/Main
27. Menu button
28. Differential locks indicators
29. Retarder oil temperature
30. Transmission oil temperature
31. Engine coolant temperature
32. Body weigth indicator
33. Urea (AdBlue) level
34. Fuel level
1 2
3
4
5
6 7 8 9 10
11 12 13 14 15 16
17 18
19
20
21
22
23
24
25
26
27
28
29
30
31 32
33
34
Figure 6
