Doosan DA40 - Drive shafts; Front frame

SHOP MANUAL
DRIVE LINE

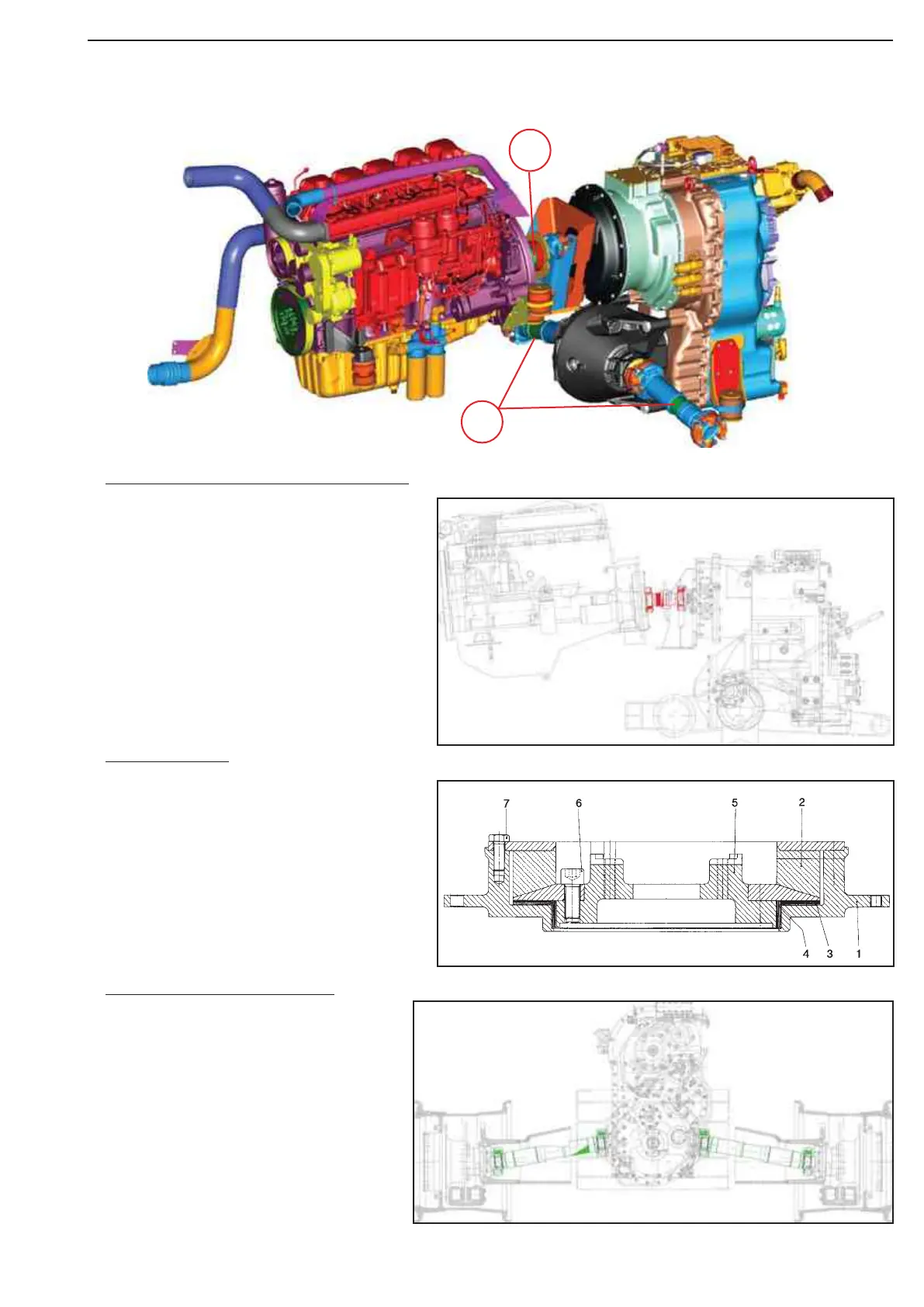

Ch 3 page 46 Ch 3 page 47
DRIVE LINE
Drive shafts
Front frame
2 Cardan Shaft (LH and RH)
1 Cardan Shaft, Engine -Transmission
Rubber coupling
Pos. Quantity Part
1 1 Rubber coupling ass'y
2 1 •Element
3 1 •Friction washer
4 1 •Friction ring
5 1 •Adapter
6 8 •Screw
7 12 •Screw
1
2
Figure 125
Figure 124
Figure 123
Figure 126
