System overview for electrics

1 Control unit EEC3

2 NOx sensor

3 Temperature sensor

4 Level and temperature sensor

5 Reductant pump

6 Reductant doser

7 Coolant valve

8 Electrically heated reductant hoses

1 Reductant tank

2 Control unit EEC3

3 Reductant pump

4 Level and temperature

sensor

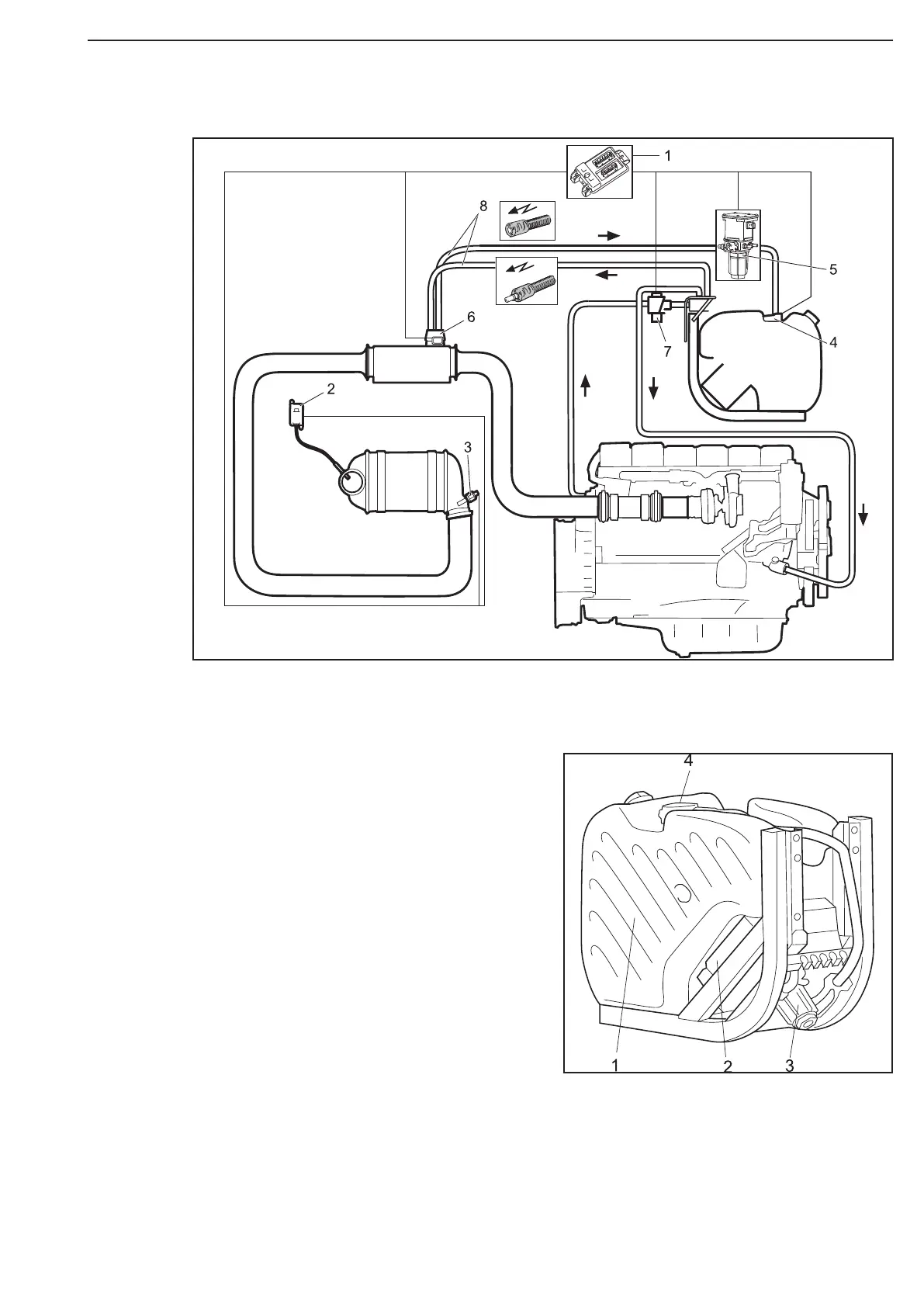

Figure 51

Figure 52
