SHOP MANUAL
TRANSMISSION
Ch 2 page 10 Ch 2 page 11
TRANSMISSION
Legend:
2 = Engine - dependent PTO
3 = Output flange (rear axle)
4 = Emergency steering pump (option)
5 = Output flanges of LKV axle insert (front axle)
6 = Input flange
Legend of letters:
• AV/V Input/Forward
• W converter with lock-up clutch
• RE retarder
• Clutches V/R/A/B/C/D/E (V=forward)
• Multi-disc brake F
• Interaxle differential G

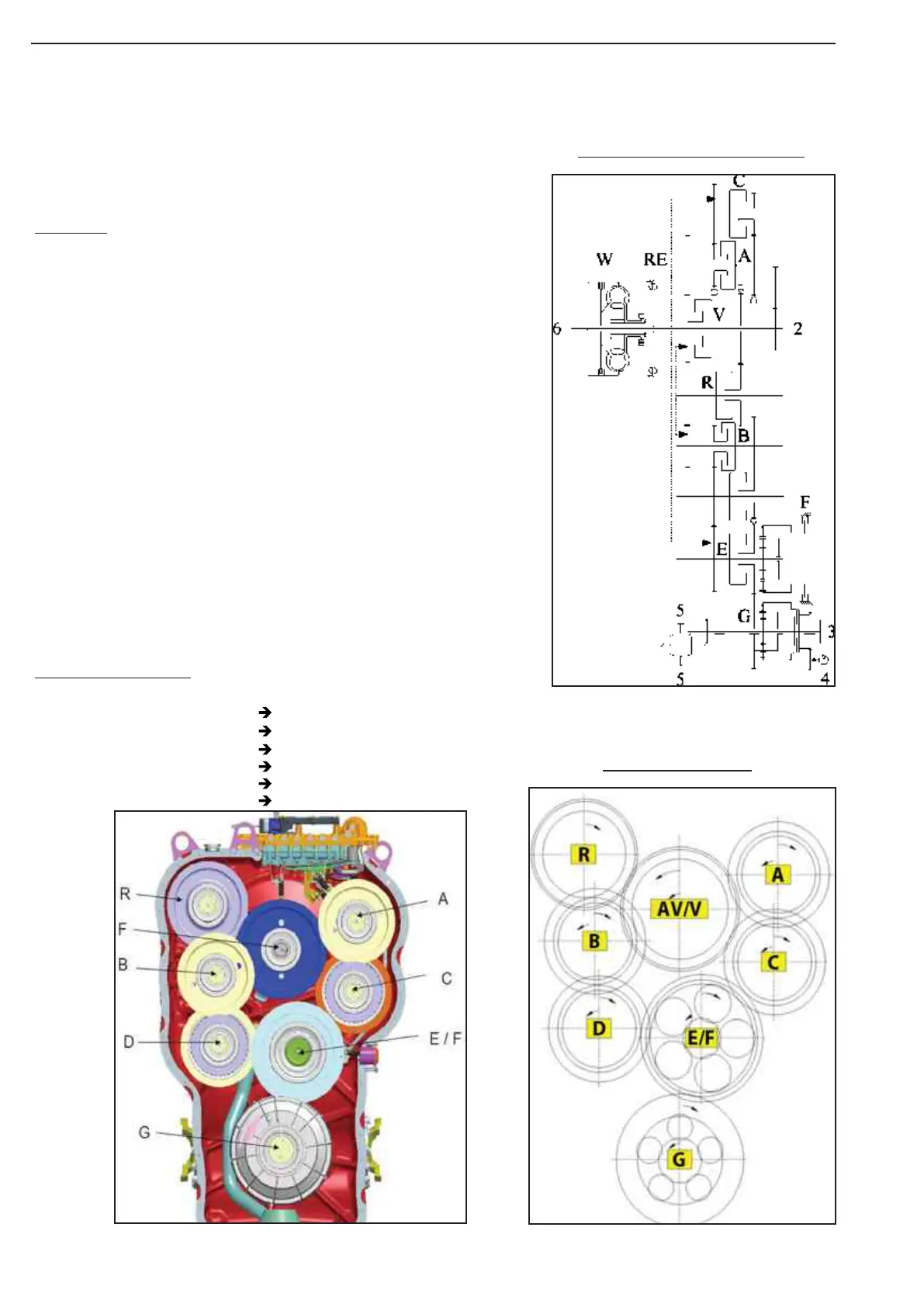

Transmission schematics
Gear schematics
Transmission schematics and gear schematics
Configuration of transmission
Figure 2
Figure 4Figure 3
