SHOP MANUAL
DRIVE LINE
Ch 3 page 14 Ch 3 page 15
DRIVE LINE
Disassembly: front wheel hub
Look in the section; Safety precautions before starting disas-
sembly of hub.
When disassembly the WDB-hub it is from starting 2 ways for this:
To disassemble the unit complete, use descripotion 1
To disassemble inside parts use discription 2
1 Disassemble the propeller shaft from transmission
flange shaft connection.
Assembly:
Screw: 1/2UNFx57 - 10.9
Locking liuid: Loctite 245
Tightening torque: 141 Nm
Fit a lifting device to hub
Disassemble the screw inside the hub.
Screw M20x1.5x100 ISO4014-10.9
Washer 19x30x3 NS-ISO 7091 300HV
For assembly:
Apply Locking liquid: Loctite 245
Assembly torque 440 Nm
Lift hub away from suspension arm
Disassemble propeller shaft from the hub
2 Follow description on the next pages
NOTE

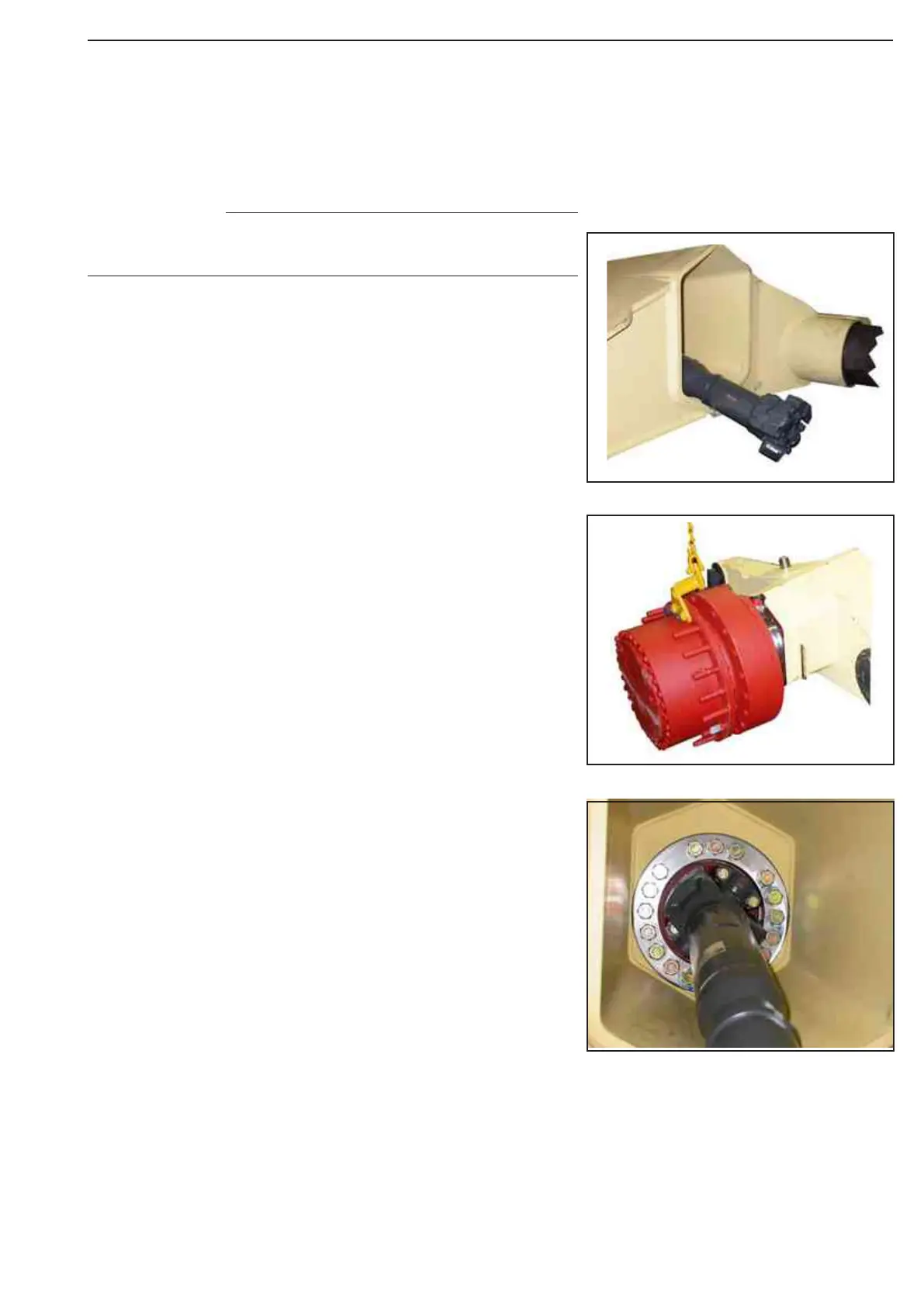

Figure 8
Figure 9
Figure 10
To Next Page
