SHOP MANUAL
DRIVE LINE
Ch 3 page 16 Ch 3 page 17
DRIVE LINE

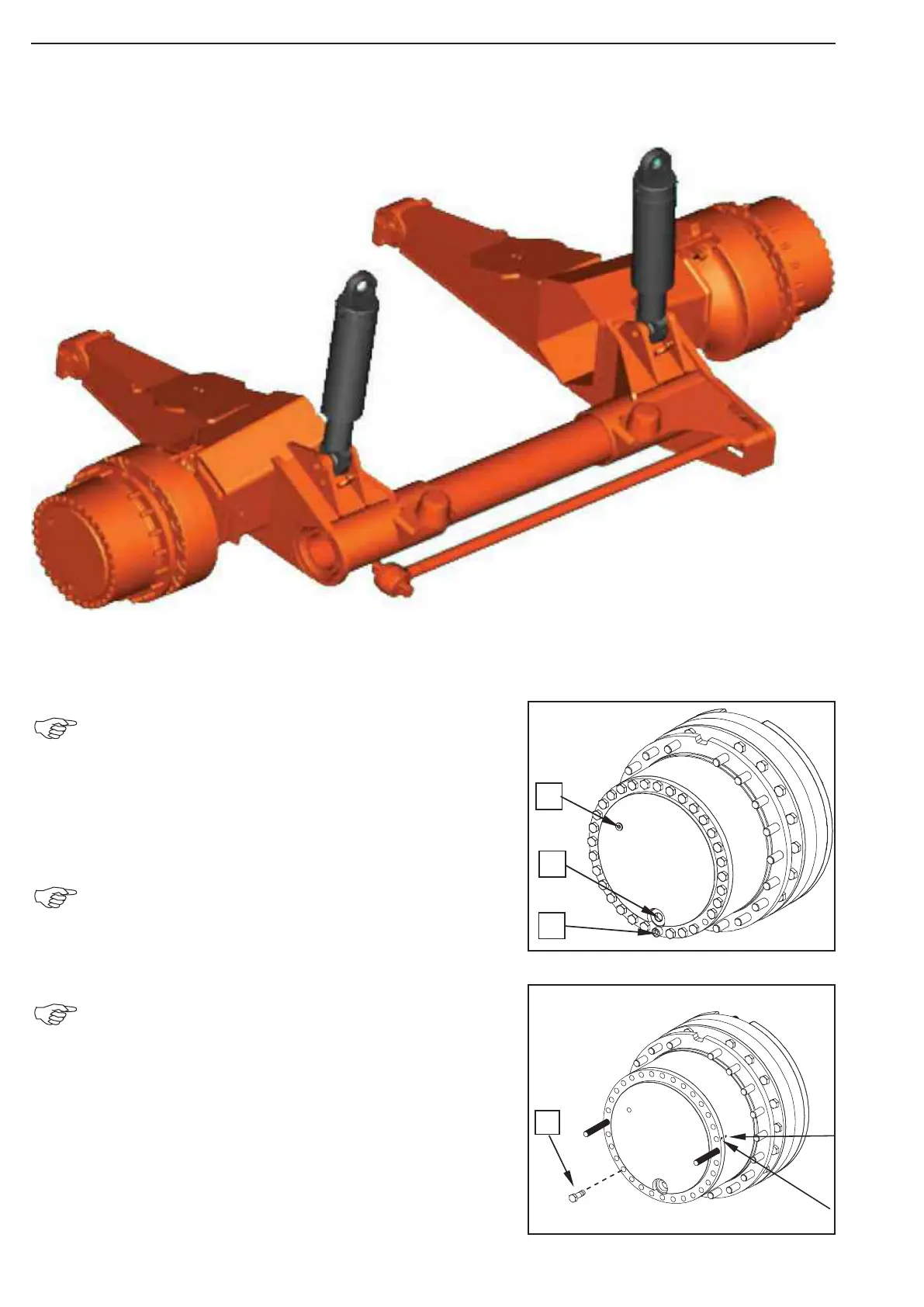

Brake (see Fig. 11)
Loosen screw plug (1) and drain oil.
Wheel head
Loosen screw plug (2) and cap screw (3) and drain oil.
Remove screw plug (4).
Also drain oil in axle insert.
Loosen the bolt connection (1) planet carrier/hub.
Mark the radial installation position of the
planet carrier to hub (see arrows).
Install two adjusting screws.
(S) Adjusting screws 505759
3
2
4
Figure 2
Figure 12
Figure 11
