FRONT WAGON
Ch 7 Page 2 Ch 7 Page 3
FRONT WAGON
Panhard
Bar
Left Suspension Arm
Cross
Tube

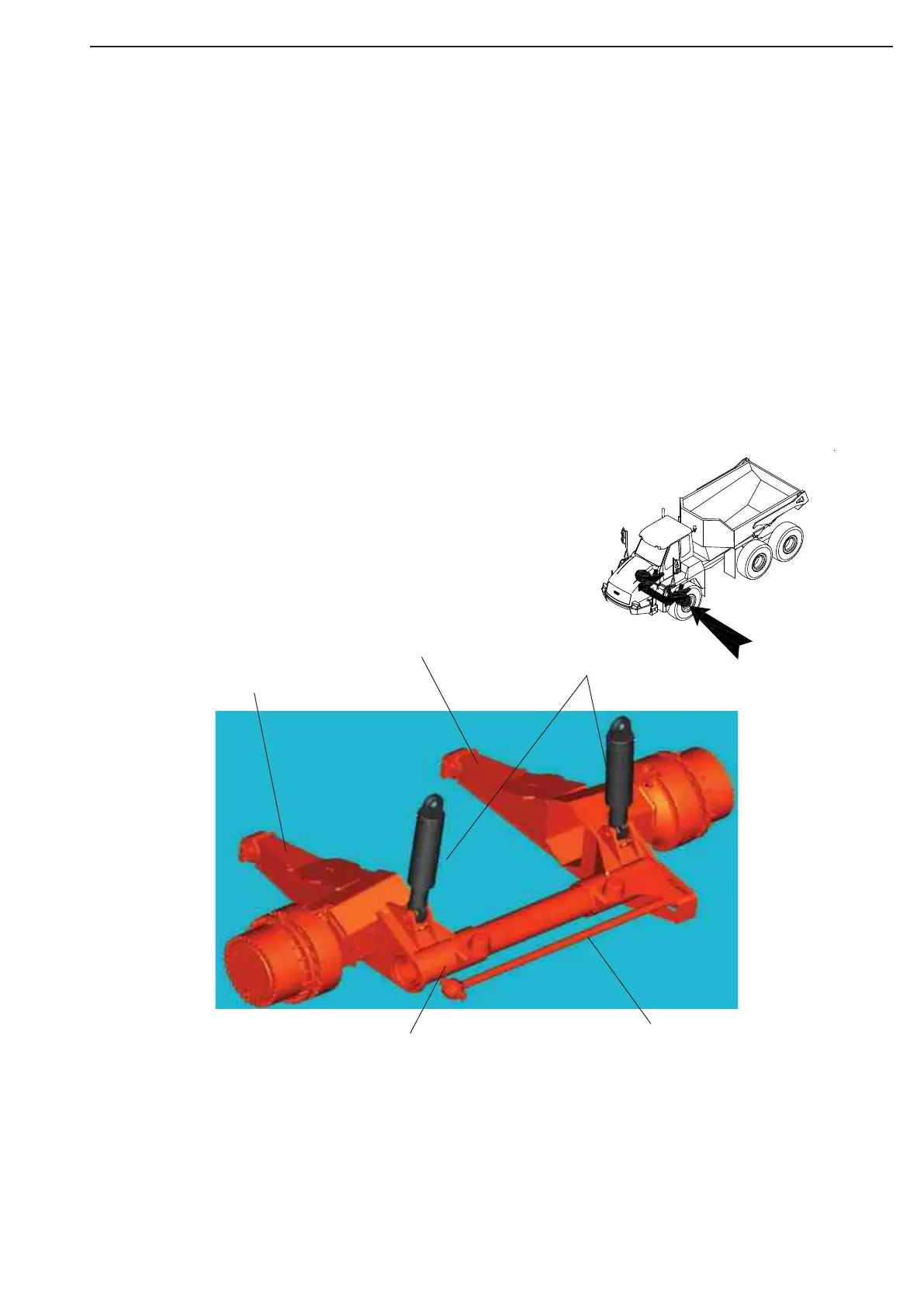

The Front Axle Suspension consists of two independent suspension arms connected to each other via the
cross tube. Rubber cushions are acting as springs, and take the weight resting on the suspension which also
are equipped with dual sets of shock absorbers.
In addition the suspension is stabilized by the panhard bar connected to the front wagon frame.
7.2 Front Axle Suspension
Hydraulics
cylinders
Right Suspension Arm
Figure 2
