SHOP MANUALSHOP MANUAL
FRONT WAGON
Ch 7 Page 46 Ch 7 Page 47
FRONT WAGON

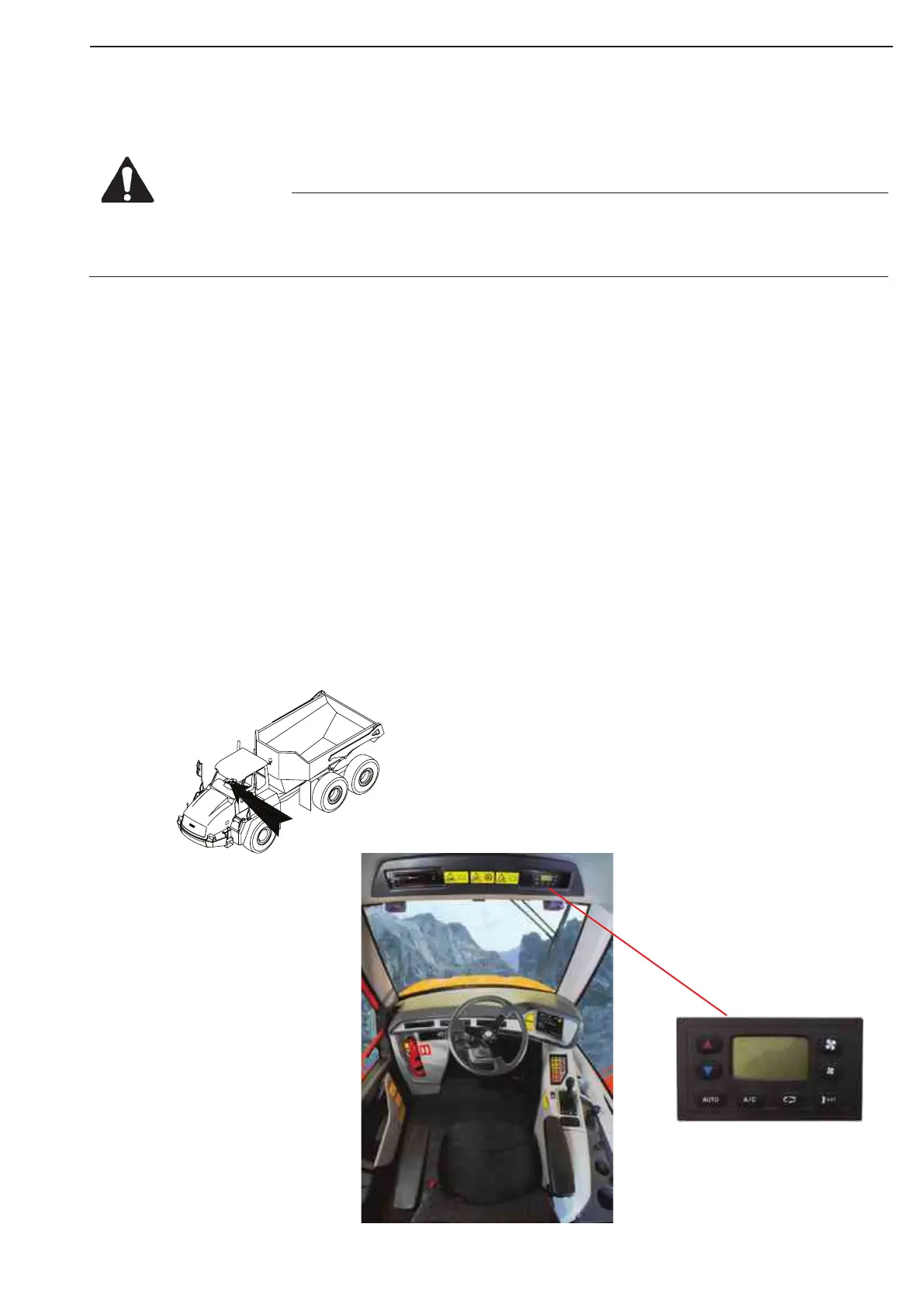

7.5.2 Cab Ventilation Control Panel
The Cab Ventilation Control Panel is located in the driver’s front , upper in the roof, right side.
Removal
Make sure the battery main switch is turned off.
The control panel is fastened in similar manner as a car radio, and can be removed inserting special tools to
release the locks. Lift the panel from console to access the different connectors and control wires.
Mark each cable connection for correct location and disconnect.
Mark and disconnect the two control wires.
Installation
Connect the control wires, and adjust to obtain full travel of control arms according to marking on control han-
dles.
Connect electrical cables as removed.
Position the control panel in the console and push down until the two tabs snaps into locked position.
Control
Check that all parts are located as before removal.
Start the engine and check that the ventilation system is functioning properly according to the Operation &
Maintenance Manual.
Figure 105
Never turn off battery main switch when engine is running
Never turn off battery mainSwitch when ignition is on
Leave battery main switch on for atleast 5 minutes after engine has completely stopped.
WARNING
