SHOP MANUAL
Ch 5 page 9
HYDRAULIC SYSTEM
Position Description Part no. Head/socket Torque
6,7 Check valve 22mm 40Nm
Seal Kit 532024
Position Description Part no. Head/socket Torque
31 Check valve 22mm 40Nm
Seal Kit 532024
Position Description Part no. Head/socket Torque
25 Pressure 526886 Cartridge: 7/8" (22,2mm) 45Nm
reducing Set screw: 3/16” (4,8mm)
valve Lock nut: 11/16” (17,5mm)
Seal Kit 526901
Position Description Part no. Head/socket Torque
8 Pressure 531062 Cartridge: 7/8“ (22,2mm) 45Nm
“
reducing Set screw: 3/16” (4,8mm)
valve Lock nut: 11/16” (17,5mm)
Seal Kit 526901
Position Description Part no. Head/socket Torque
27 Flow Control Valve
6mm 30Nm
Position Description Part no. Head/socket Torque
36
Check Valve 13mm
Retaining Ring * 85Nm + Locking Fluid
* Install Check Valve with the 13mm end nut facing outside of port! Then
install Retaining Ring with locking uid and torque according to specication.
Position Description Part no. Head/socket Torque
11 Solenoid valve 524484 7/8" (22,2mm) 30Nm
Coil 530049 3/4" (19,0mm) 3,5Nm!
Seal Kit 532011
Position Description Part no. Head/socket Torque
19 Relief valve 531084 Cartridge: 13mm 10Nm
Set screw: 3mm
Lock nut: 10mm 10Nm
Seal Kit 532013
Position Description Part no. Head/socket Torque
24 Solenoid valv e 530068 7/8" (22,2mm) 30Nm
Coil 530065 Round Finger tight
Seal Kit 532014
Position Description Part no. Head/socket Torque
23 Relief valve 531087 Cartridge: 7/8" (22,2mm) 45Nm
Set screw: 3/16" (4,8mm)
Lock nut: 11/16"(17,5mm)
Seal kit 532012
Position Description Part no. Head/socket Torque
21 Check valve 8mm! * 10Nm
* Make sure 8mm socket facing outside of port!

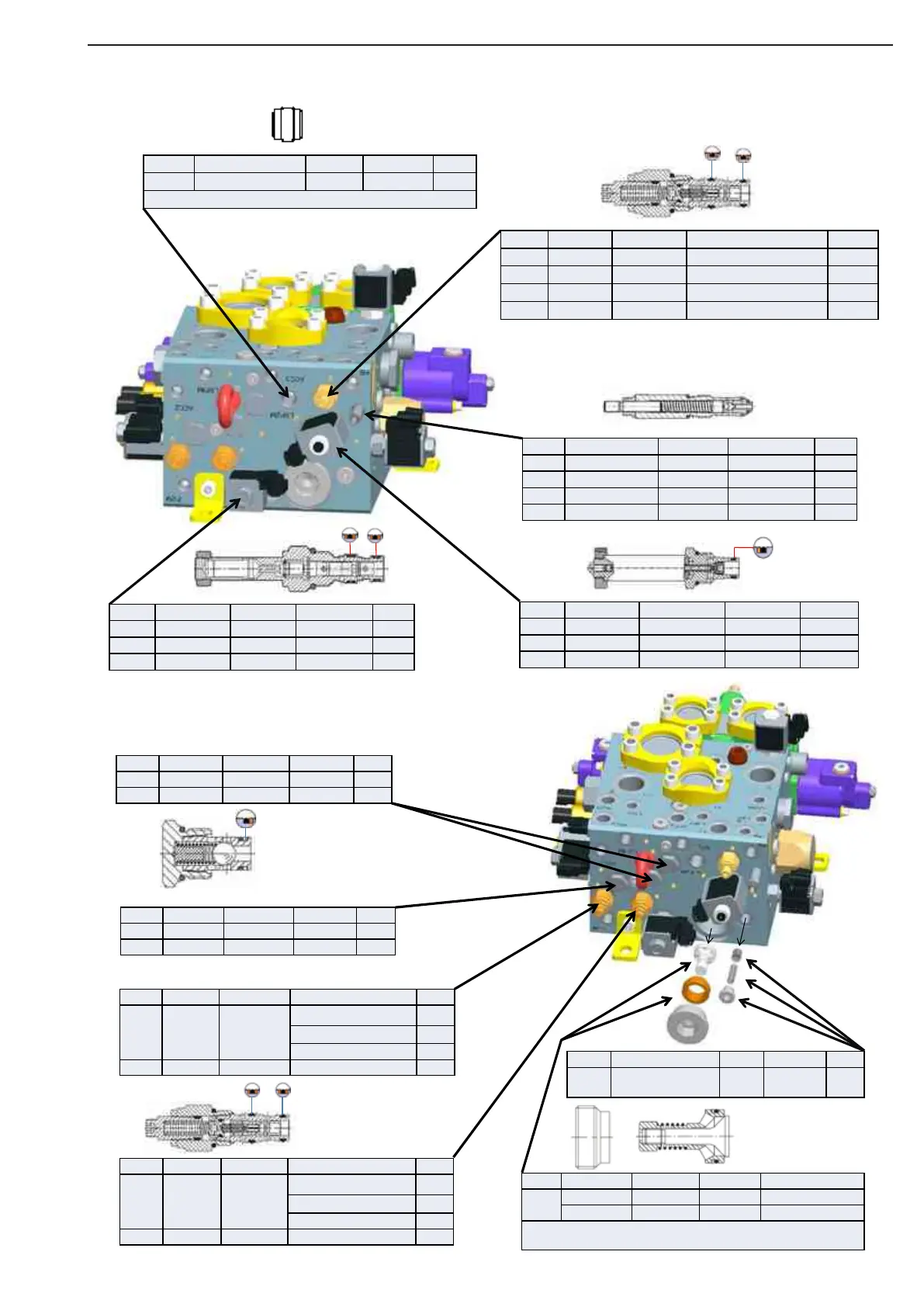

Main Valve - Spare Parts & Torques
