SHOP MANUAL
Engine
Ch 1 page 128
8405

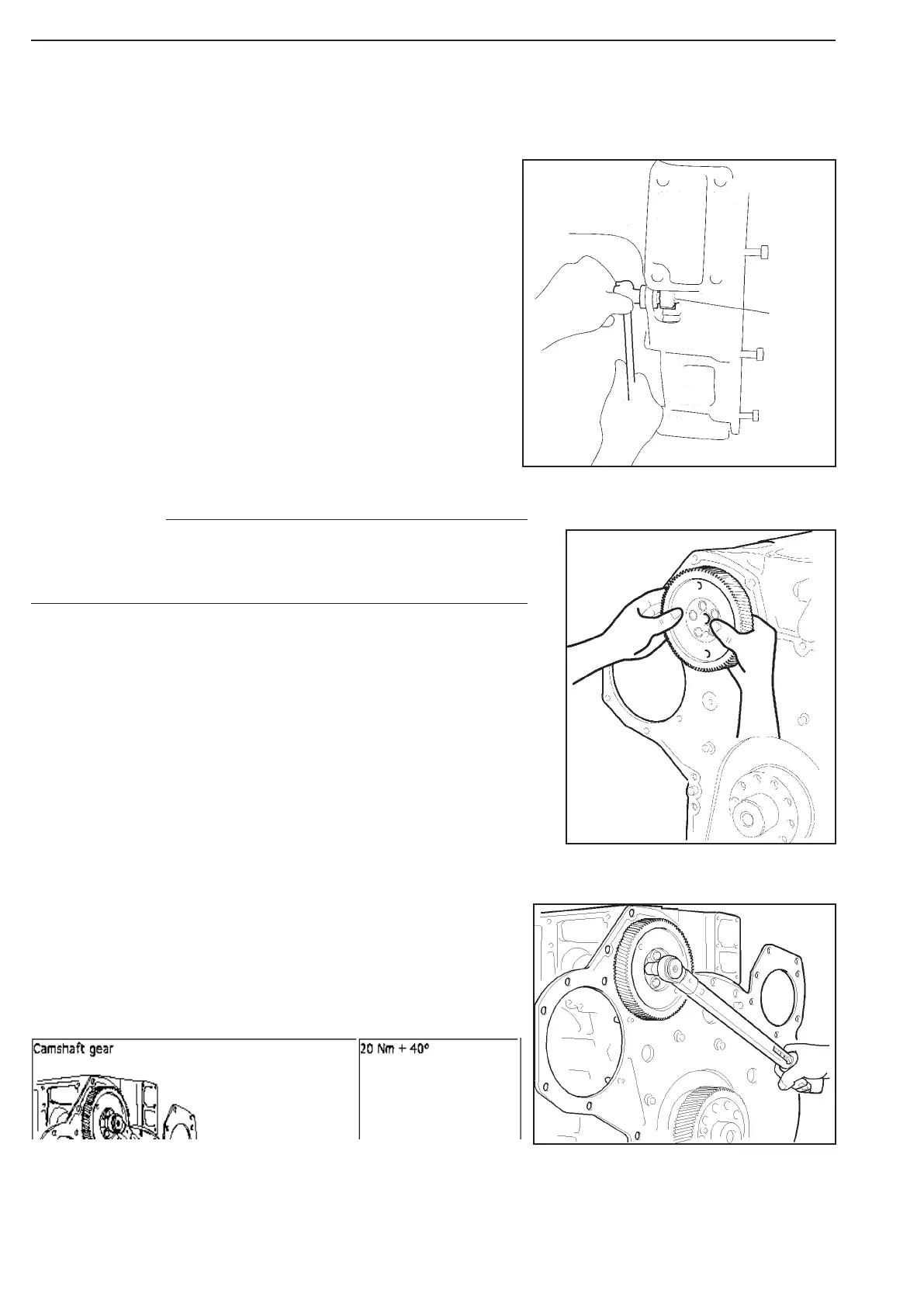

Camshaft gear
Removal
1. Turn the crankshaft so that cylinder number 1
is close to TDC. Use tool 8405 and ratchet
handle on the flywheel starter ring gear.
2. Remove the flywheel as described in the
section Removing the flywheel.
3. Remove the flywheel housing as described in
the section Removing the flywheel housing.
4. Remove the intermediate gear.
After removing the intermediate gear, neither the camshaft nor
the crankshaft must be rotated. This may cause pistons and
valves to collide and be damaged.
5. Remove the camshaft gear.
Fitting
1. Fit the camshaft gear and torque tighten the
bolts to 63 Nm.
2. Fit the intermediate gear as described in
Intermediate gear, fitting.
3. Fit the flywheel housing as described in the
section Fitting the flywheel housing.
4. Fit the flywheel as described in the section
Fitting the flywheel.
NOTE
Figure 250
Figure 249
Figure 248
