Engine
SHOP MANUAL
Ch 1 page 127
Fitting
1. Check that cylinder number 1 is close to
TDC. The markings on the camshaft gear and
crankshaft gear must point towards the centre
of the intermediate gear.
2. Lubricate the bearing surfaces.
3. Fit the intermediate gear against the camshaft
gear and the crankshaft gear so that the
markings point towards each other.
4. Fit the second intermediate gear.
5. Tighten the bolts on the intermediate gears to
50 Nm + 60°.
6. Fit the flywheel housing as described in the
section Fitting the flywheel housing.
7. Fit the flywheel as described in the section
Fitting the flywheel.

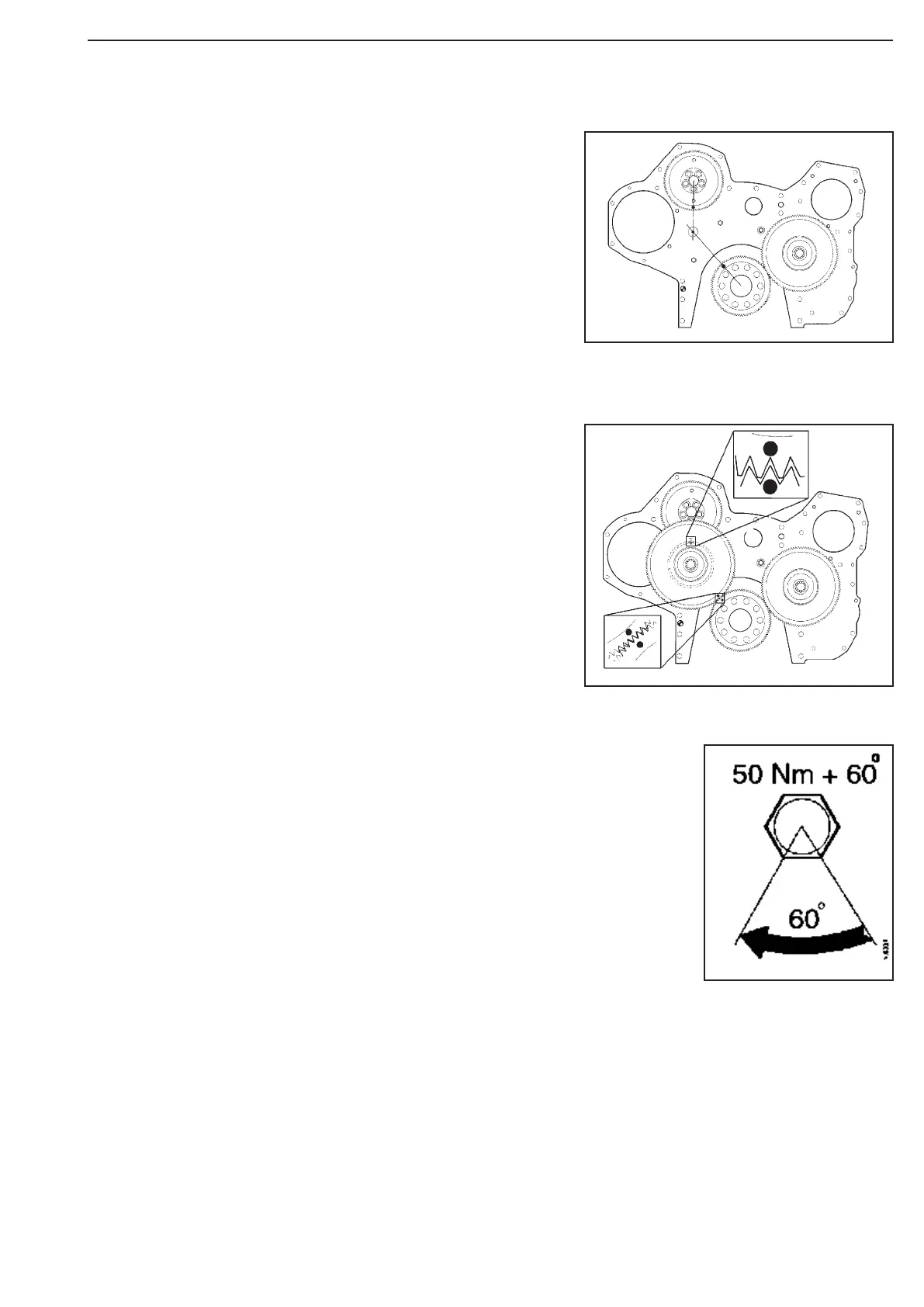

Figure 245
Figure 246
Figure 247
