Doosan DA40 - Disassemble the boggi unit from frame

SHOP MANUAL
DRIVE LINE
Ch 3 page 80 Ch 3 page 81
DRIVE LINE
1 Disassemble brake hoses from Tandem housing
LHS and RHS
Disassemble lubrication hose from Tandem housing
LHS and RHS
2 Disassemble axle housing screws (4 in each side).
Screw M24x380 DIN931-10.9
1
2

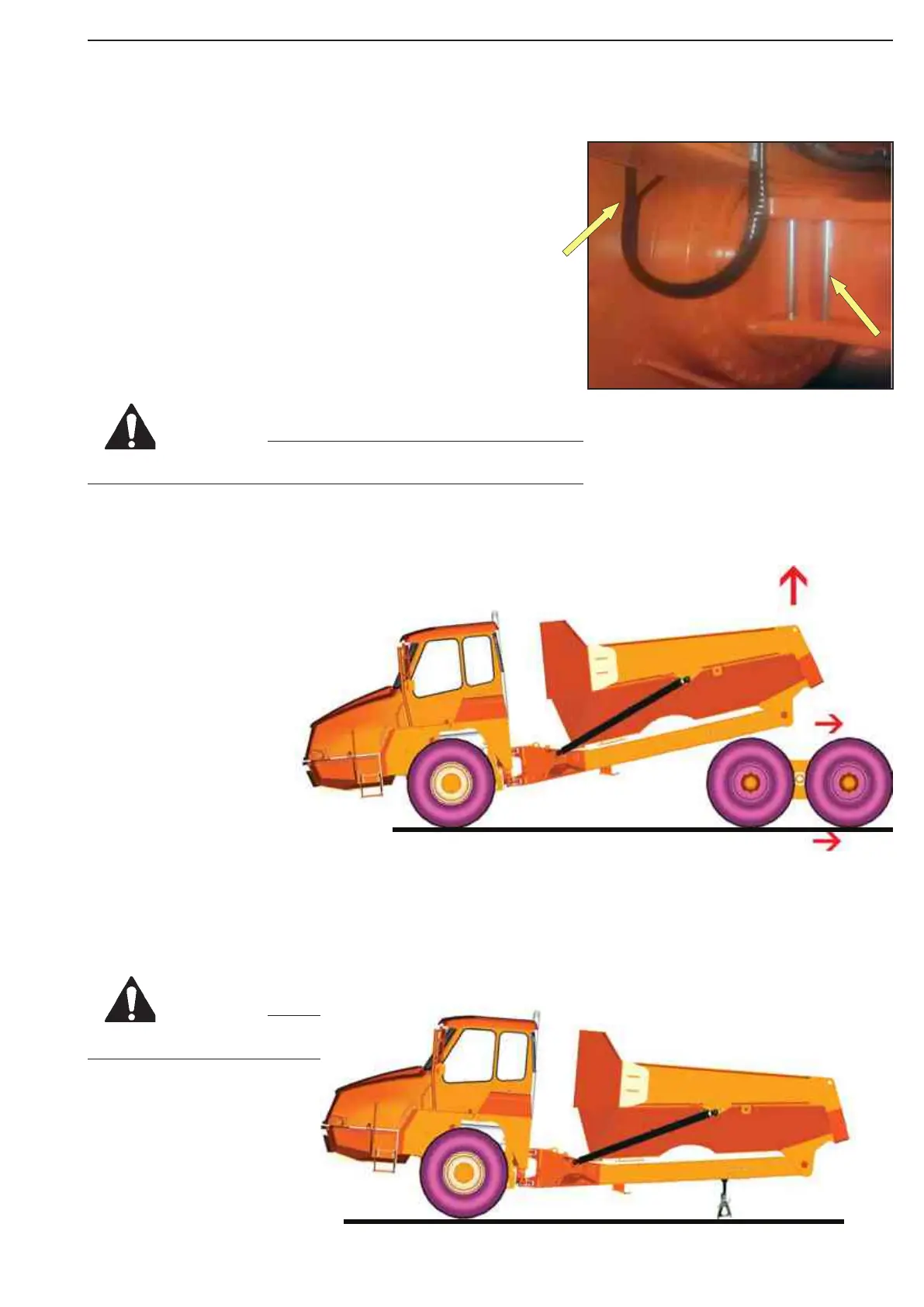

By crane:
lift the rear frame up and move the tandem unit backwards
Place safety supports under the rear frame.
Aware of the propeller shaft.
Be aware of personal injury.
Be aware of personal injury.
Disassemble the boggi unit from frame
WARNING
WARNING
