SHOP MANUAL
Engine
Ch 1 page 114
Apply the sealing agent on the timing
gear housing side against the trans-
mission plate.
Apply the sealing agent around the
screw holes marked with arrows.
Fitting flywheel housing
1.
Remove all old sealing compound on the sealing surfaces of the
timing gear casing and timing gear plate.
Clean off any oil and grease using an alcohol based cleaning
agent.
2. Apply the sealing agent (512565) on the timing gear hous-
ing with the air powered sprayer (512559), cartridge adapter
(512565) and nozzle (512558).
The width of the bead should be between 0.8 and 1.2 mm.
Follow the pattern as illustrated.
Ensure that you apply sealing agent inside the screwholes,
but without allowing sealing agent into the crankcase. The
sealing agent may block channels and nozzles. This is par-
ticularly important to bear in mind around oil ways, where
the ow of oil to the air compressor or injection pump can be
blocked.
3. Torque tighten the M12 bolts to 90 Nm and
the M10 bolts to 50 Nm.
4. Fit the starter motor
CAUTION
Assembly must be completed within 25 minutes of starting
to apply the sealing agent. The bolts are of various sizes and
lengths. Ensure that they are tted in the correct places. See
also the illustrations on the next page.
The sealing surfaces must be absolutely clean and free from
grease. Do not touch the surfaces after degreasing.
NOTE
NOTE

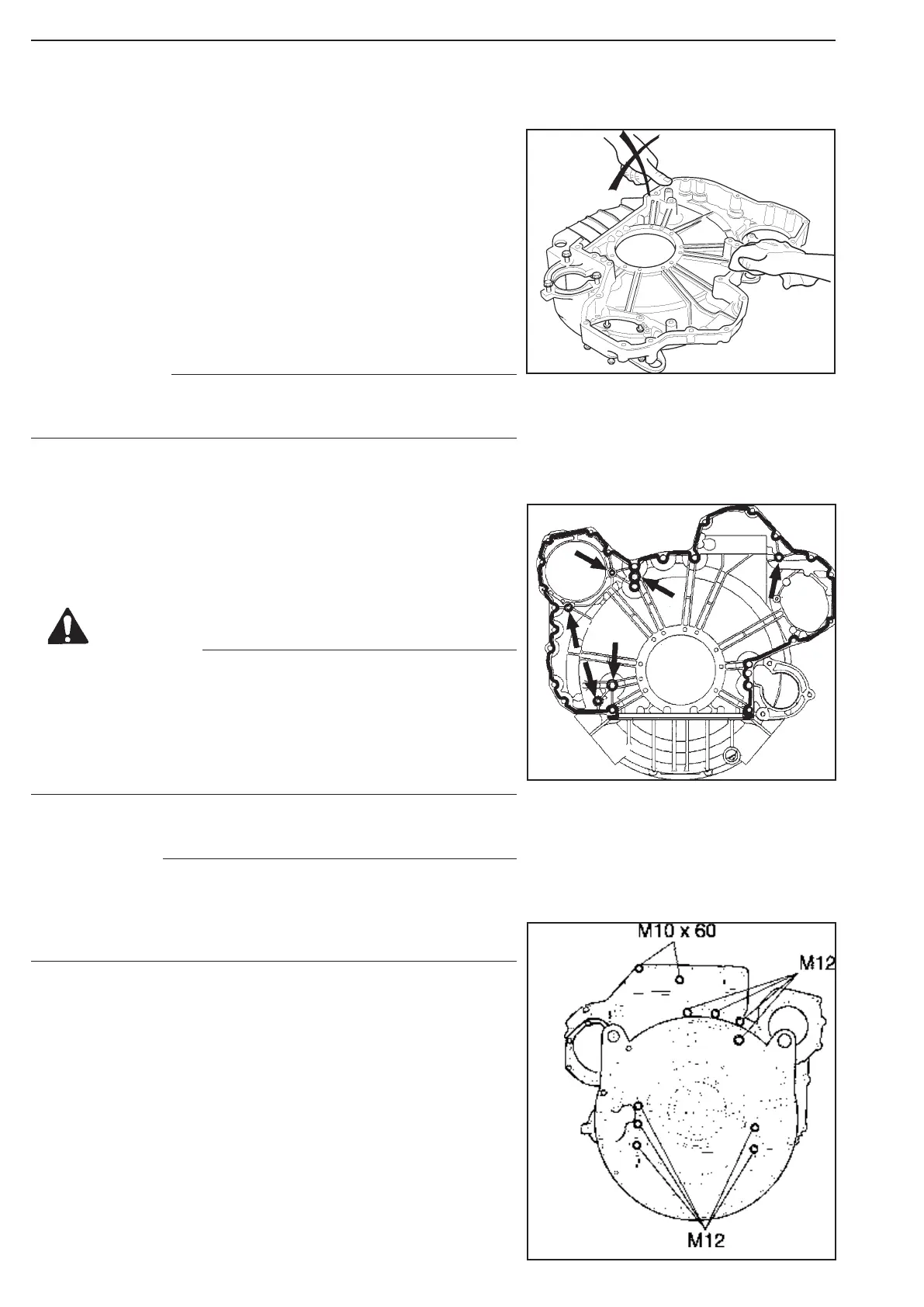

Figure 217
Figure 218
Figure 219
