Doosan DA40 - 7.3.2 Articulation bearing ass’y

SHOP MANUALSHOP MANUAL
FRONT WAGON
Ch 7 Page 16 Ch 7 Page 17
FRONT WAGON

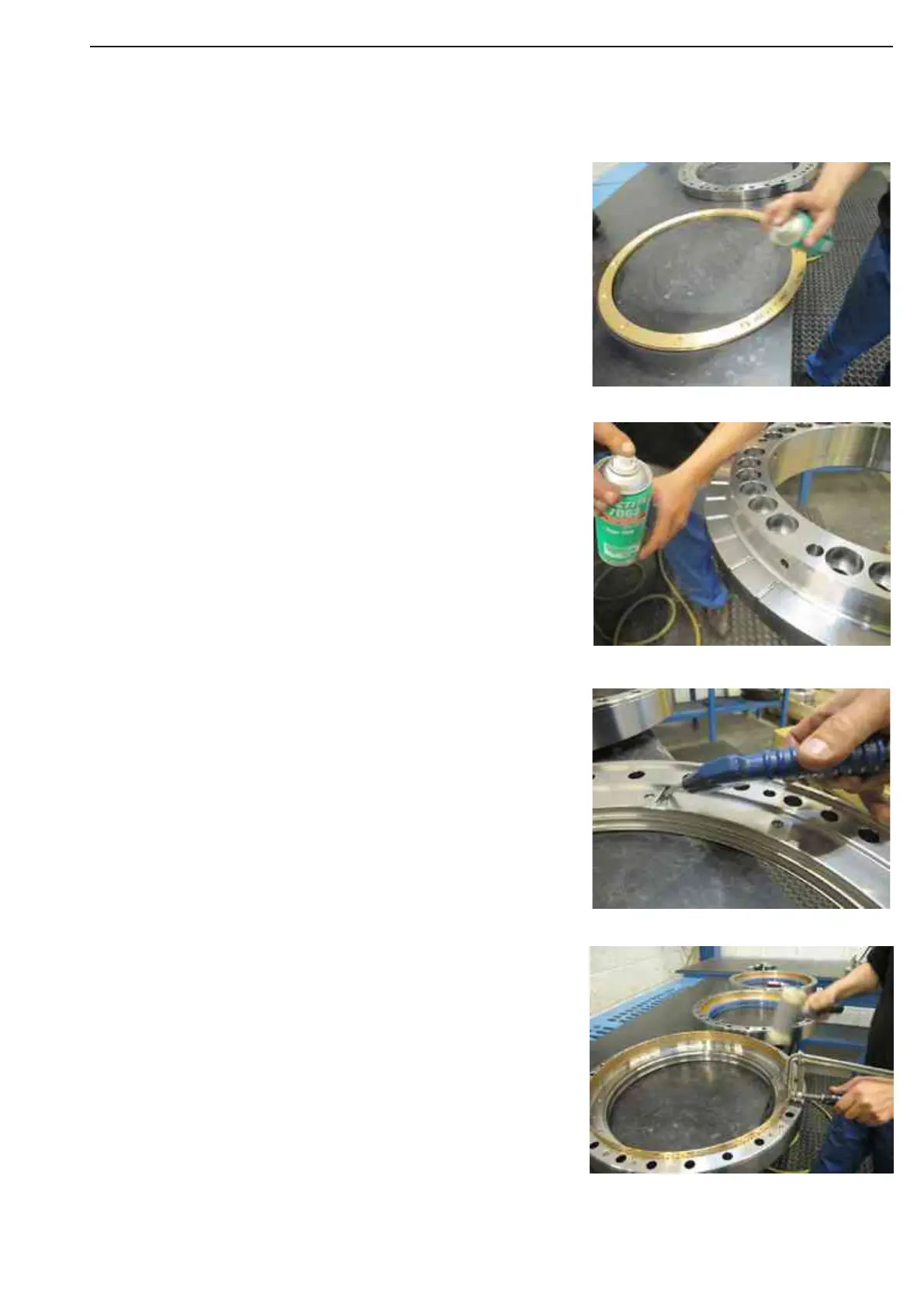

Clean parts with a solvent.
Locktite 7063
Assemble inner ring.
Use plastic hammer to carefully fit the inner ring.
7.3.2 Articulation bearing ass’y
Use high pressure air to clean parts, removing particles that
may have occurred in the machining process.
Figure 30
Figure 31
Figure 33
Figure 32
