SHOP MANUAL
DRIVE LINE
Ch 3 page 86 Ch 3 page 87
DRIVE LINE

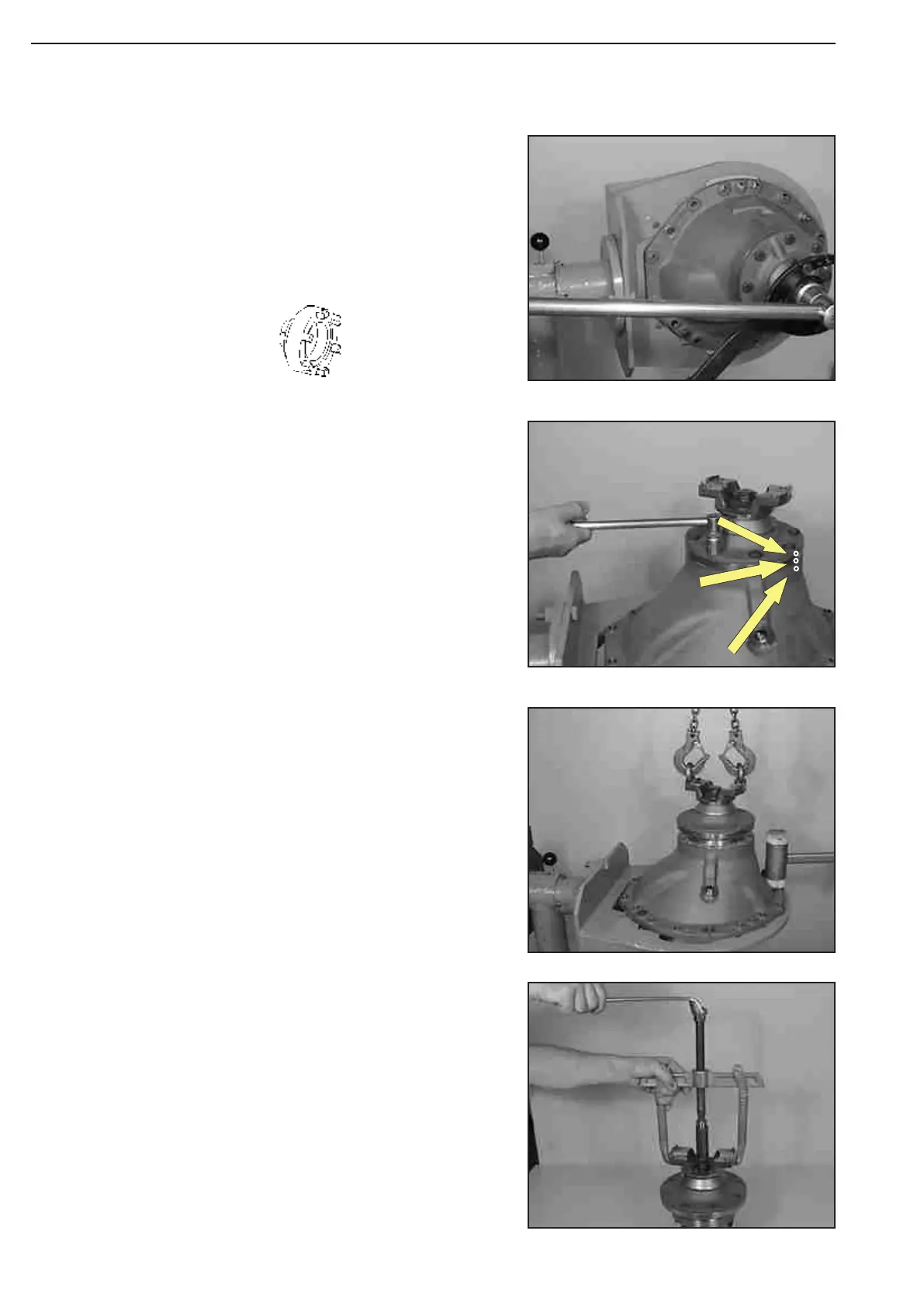

Unlock and loosen castle nut.
Do not remove the castle nut !
(S) Clamping yoke 509110
Pipe KM 509157
Remove castle nut and disc.
Pull off input flange.
(S) Two-leg puller 504731
Separate the drive pinion (compl.) from the axle drive housing, us-
ing lifting device.
Pay attention to the released shim !
(S) Lifting device 504198
(S) Plastic mallet 504196
Mark the radial installation location of sealing cap and bearing
bush with the axle drive housing, see Arrows !
Loosen hex. head screws.
Disassemble Drive pinion
Figure 232
Figure 231
Figure 230
Figure 233
