Engine
SHOP MANUAL
Ch 1 page 45
Fuel filter
Design
Fuel filter are of single-mounted type. The filter screw on to a
retainer which is bolted to the engine.
The filter consists of a metal container with a folded paper ele-
ment. The filter cannot be dis mantled but must be changed as a
complete unit.
The fuel filter has no bleed screw and is bled by undoing plug 4
in the free inlet passage.
Function
Fuel is pumped into the inlet by the fuel pump. It then continues
through passages in the filter retainer to the upper part of the fil-
ter, down through the filter or filters and on to the outlet pas sage.
From there, the fuel is piped to the injection pump.

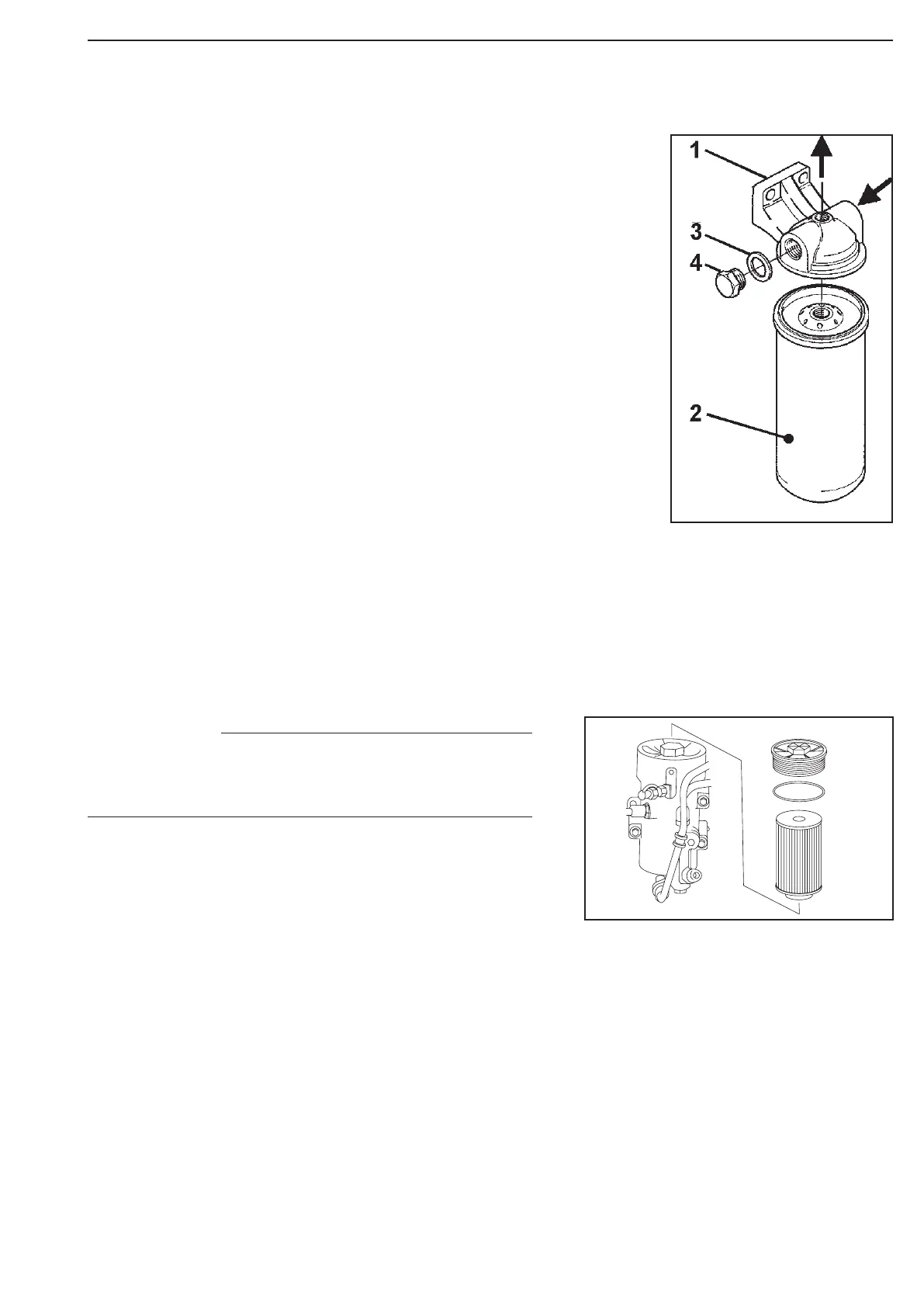

1. Filter retainer
2. Filter
3. Gasket
4. Plug
Fuel filter, constituent parts
Changing the fuel filter
Avoid spillage and use a suitable container. Used fuel
must be disposed of as specied in national and inter-
national law.
NOTE
1. Unscrew the filter cover with a closed tool with hexagon
driver, e.g. socket, so as not to damage the filter cover.
2. Lift out the filter cover and filter element. The filter housing
will drain automatically. This applies only if the fuel tank is
lower than the engine. Otherwise the fuel shut-off cock
must be closed first.
3. Undo the removed filter element from the cover by
carefully bending it to one side.
4. Renew the O-ring in the cover. Lubricate the O-ring with Oring
grease.
5. Check that the filter housing is drained of fuel.
Contaminated fuel may enter the injectors if the drainage
does not work.
6. Press a new filter element into the snap fastener in the
cover.
Figure 71
Figure 72
