FRONT WAGON
Ch 7 Page 10 Ch 7 Page 11
FRONT WAGON
Panhard Bar
Front Frame Bracket
Left Suspension Arm
7.2.4 Panhard Bar
The Panhard Bar restrict the sideways motion and stabilises in the front suspension.
Removal
Thoroughly clean the front suspension.
Remove the two bolts securing the bar to the front frame.
Save the shims.
Remove the two bolts securing the panhard bar to the left suspension arm.
Be aware of the risk of injury to people and equipment when handling heavy objects!
Installation
Position the panhard bar in the left suspension arm bracket. Thigh ten the two bolts.
Position the bar in the right side front frame bracket.
Replace the shims, and tighten the two bolts.
Control
Check that all components are located as when removed.
Perform a test drive to see that the front suspension is functioning properly.
WARNING

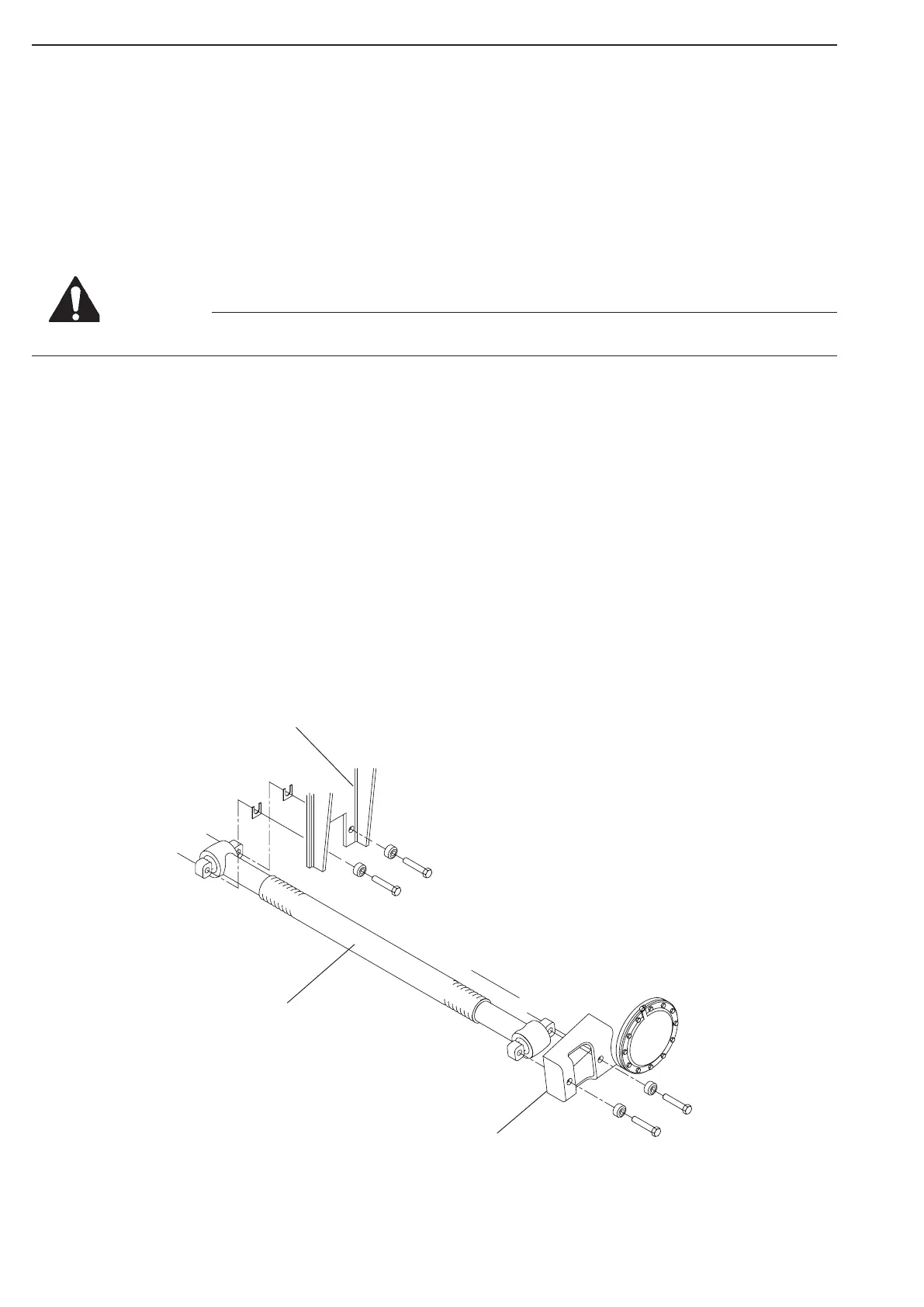

Figure 23
