SHOP MANUALSHOP MANUAL
FRONT WAGON
Ch 7 Page 8 Ch 7 Page 9
FRONT WAGON

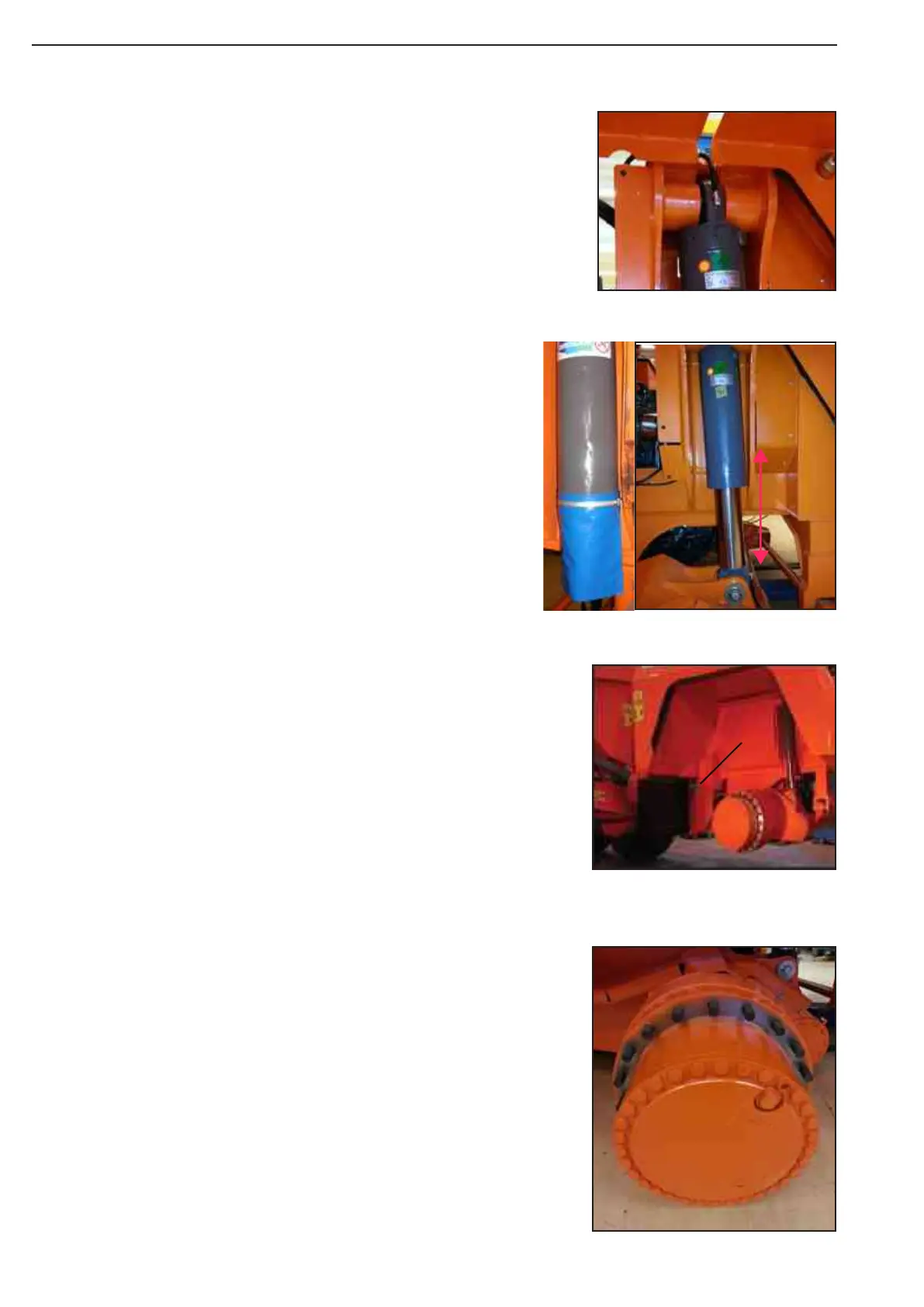

Position the hydraulic cylinder in the upper bracket, and replace the
bolt.
Adjust the length of the damper, or use the floor jack to line up the
holes for the lower fastening bolt.
Replace lower bolt and washer and secure with cotter pin.
Tighten the upper bolt.
Assemble protection on cylinder
Assemble suspension cover plate
Cover
Plate
Control:
Before assembling the wheel, check that all components are
located as when removed.
7.2.3 Hydraulic gas cylinder reassembly
Figure 18
Figure 21
Figure 19
Figure 20
