SHOP MANUAL
Engine
Ch 1 page 50

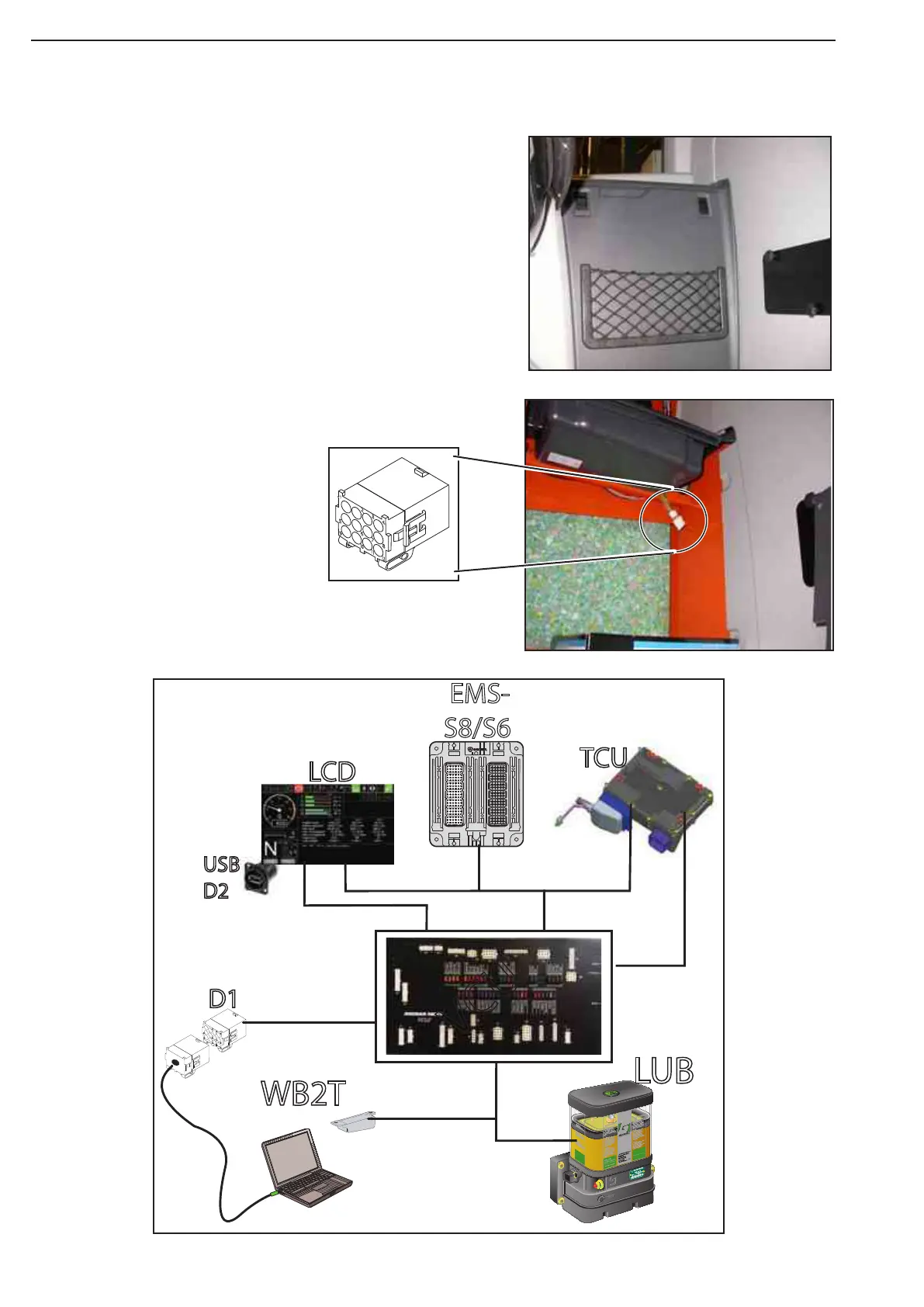

Use of diagnostic kit, Tier 2
Diagnostic prosedure
Connection point Can pc VCU + Testman
1 Disassemble cover inside cab right side rear for connection
point
Connect VCU testcabel to laptop
1
1
Twin
Diagnostic
connection
D1
Can1
Can2
Can3
Can ZFD
USB
D2
LUB
WB2T
VCU
LCD
TCU
EMS-
S8/S6
Laptop
Can bus overview
Figure 77
Figure 78
Figure 79
