DRIVE LINE
Disassembly the park brake unit
With engine NOT running, release ON and OFF the park brake
to the accumulator is empty.
Disassemble the oil hose connector. from the cylinder.
Protect the oil inlet with plastic cap or similar.
Block the wheels to prevent the machine from moving.
Set the park brake in position OFF, (Hydraulik press on the
cylinder is no ON)
Remove the adjuster plug.
Use a 6 mm Allen wrench, turn the adjuster screw 3 turns
backwards, (out).
Set the park brake in ON position.
The brake linings are now unfasten from the disc.

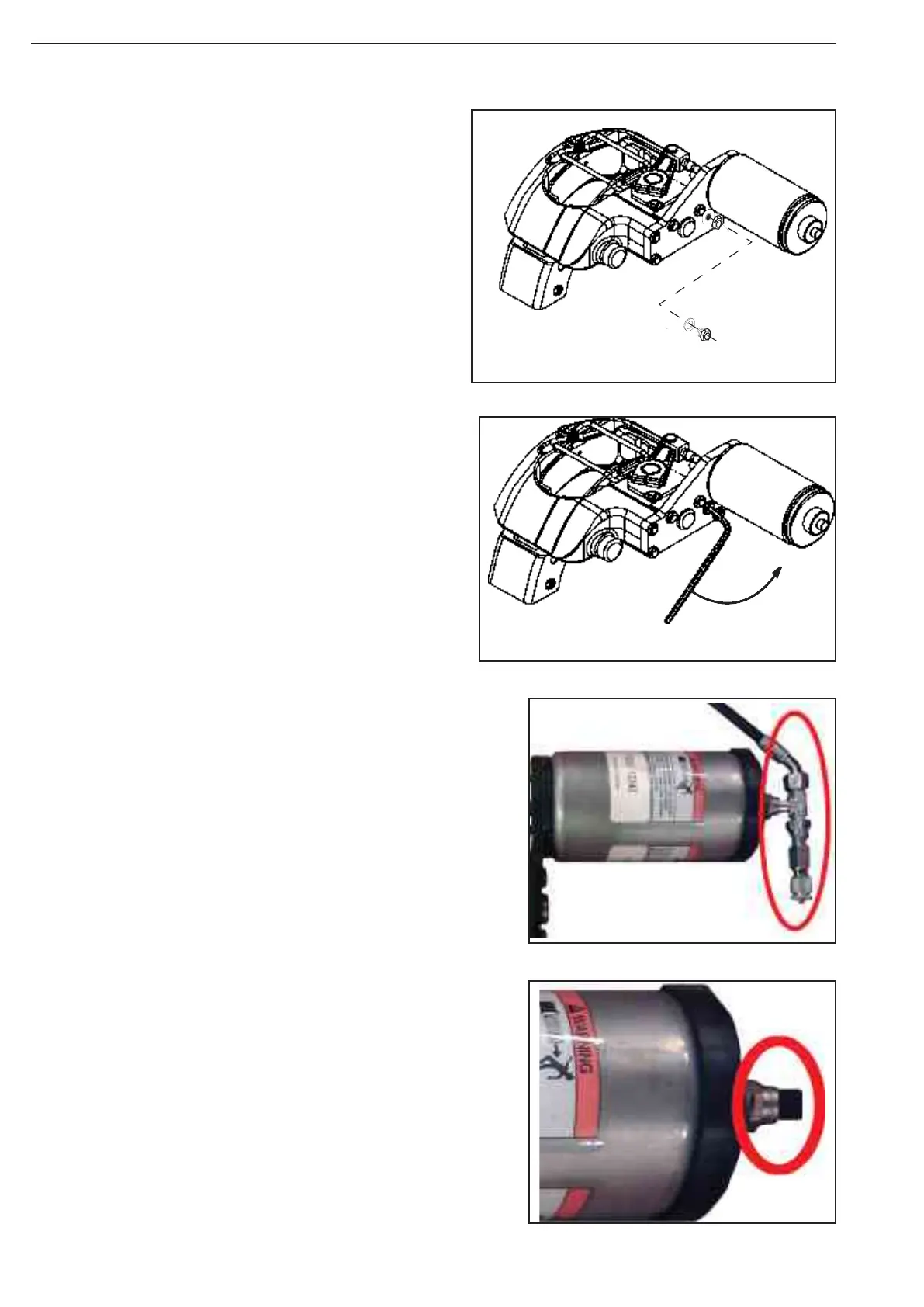

Figure 173
Figure 170
Figure 174
