SHOP MANUAL
DRIVE LINE
Ch 3 page 64 Ch 3 page 65
DRIVE LINE

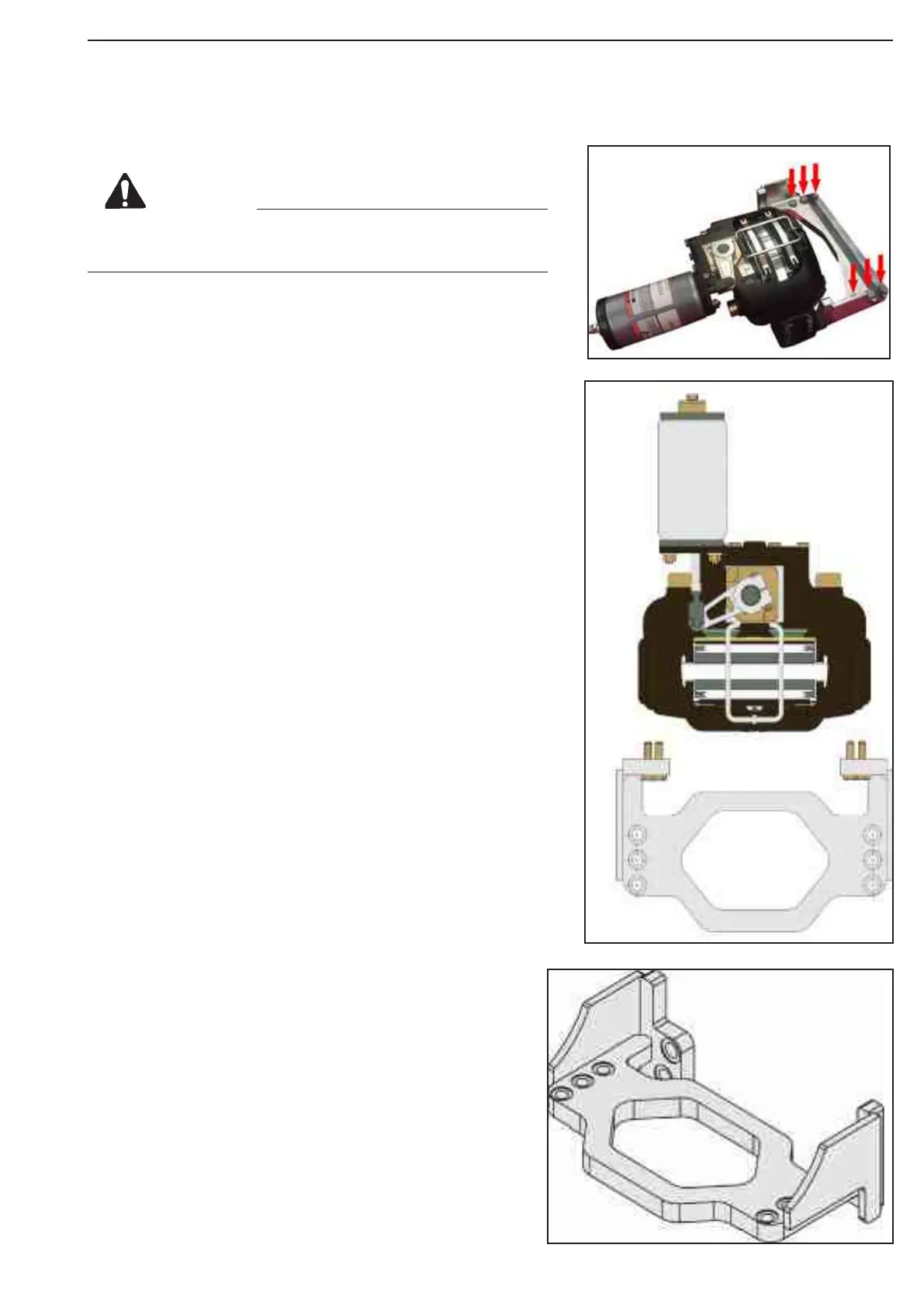

Assembly the park brake unit.
Secure the brake unit with lifting device.
Unfasten the bracket f/parking brake.
Screw M16x50 ISO4017-10.9 EL
Lock washer M16 (Nord-lock)
Assembly torqe: 280 Nm
Place the brake unit in an vice or similar.
Disassemble the screw between the calipper and the bracket.
Screw M20x1.5x60 DIN961-10.9 fzb
Lock washer M20 (Nord-lock)
Assembly torqe: 560 Nm
Assemble new or overhaul calipper in revesing order.
Do not use the stabilizer bar to lift the caliper on or off of
the vehicle. Damage to the stabilizer bar can result.
CAUTION
Figure 176
Figure 175
Figure 177
