SHOP MANUAL
DRIVE LINE
Ch 3 page 88 Ch 3 page 89
DRIVE LINE
If the crown wheel or drive pinion are damaged, both parts must
be changed together !
Pay attention to equal mating numbers !
Clean tapped holes of the bearing bracket screw connection from
Loctite residues !
ASSEMBLY
DRIVE PINION

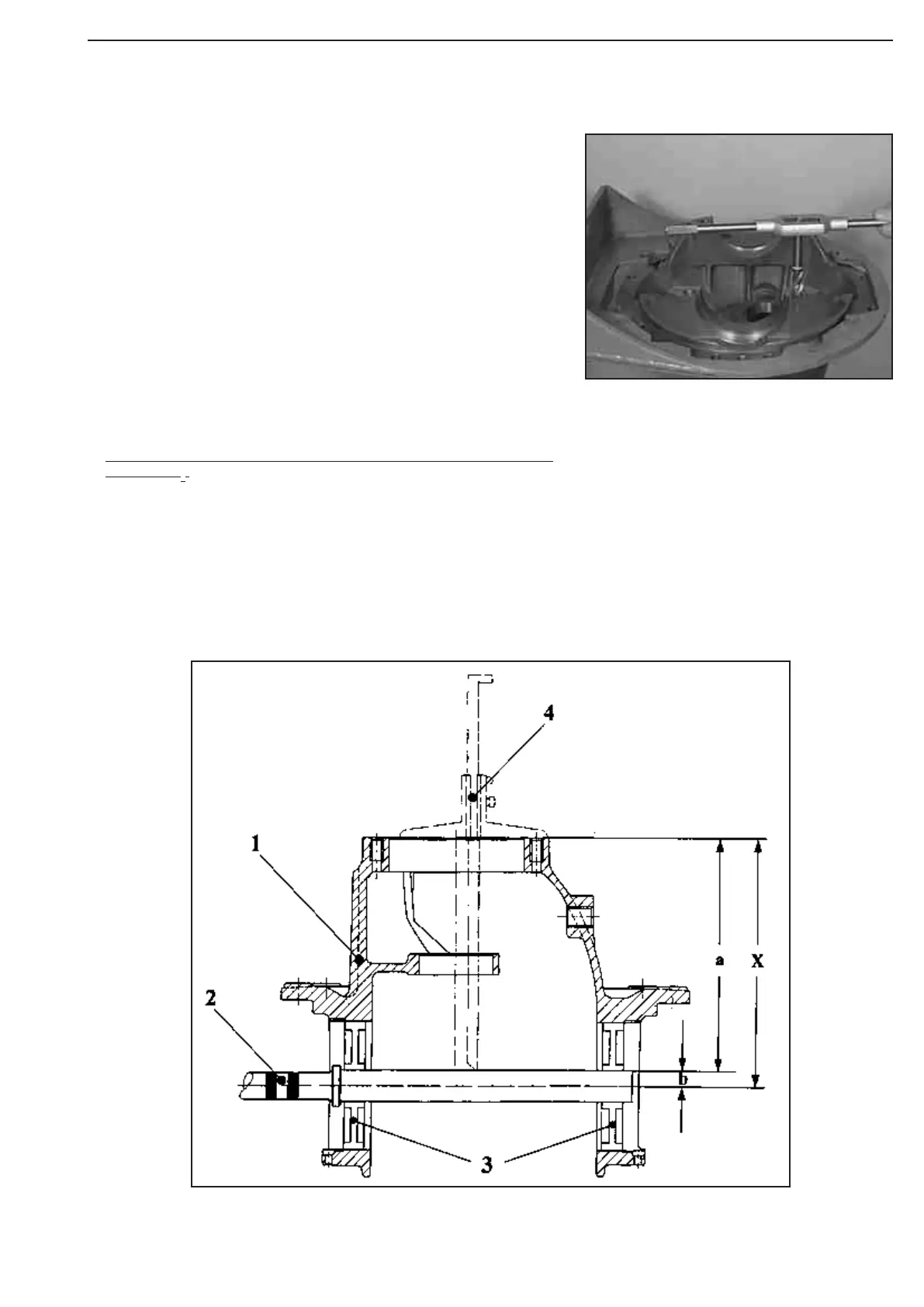

Adjust Contact pattern - Bevel gear set, see Figure 241 (Draft) to
Example A
3
:
Carry out the following measuring operations with outmost accu-
racy !
Inaccurate measurements are causing a faulty contact pattern !
Ref. Draft: 1 = Axle drive housing
2 = Measuring shaft 505158
3 = Fitting piece 509257
4 = Digital Depth gauge 504175
Figure 240
Figure 241
