DRIVE LINE

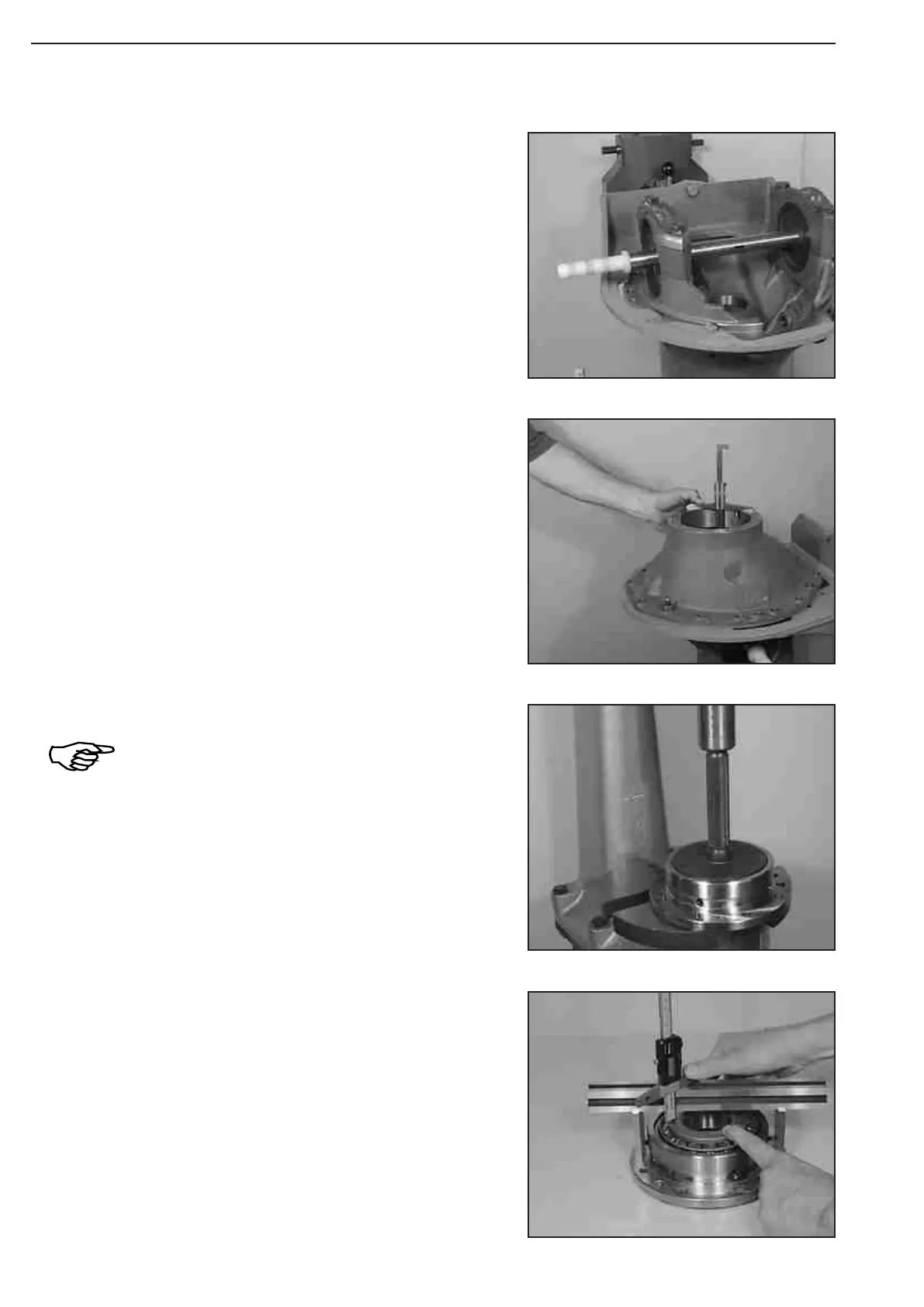

Locate both bearing brackets provisionally by means of hex. head
screws.
Insert fitting pieces into the bearing bores and introduce meas-
uring shaft, see also Figure 241/Page 89!
(S) Fitting pieces 509257
(S) Measuring shaft 505158
Insert bearing inner race, press it uniformly on, and measure Di-
mension c, from the end face/bearing inner race to the mount-ing
face.
Dimension c e.g. .................................... 53,55 mm
(S) Straightedge 504170
(S) Gauge blocks 504173
Press both bearing outer races into the bearing bush until con-tact
is obtained.
At the version with compl. bearing bush, the two
bearing outer races are already installed !
Tilt axle drive housing 180°.
Determine Dimension a, from the mounting face to the measur-
ing shaft.
Dimension a e.g. ...................................... 235,10 mm
Example: „A1„:
Dimension a e.g.. ...................................... 235,10 mm
Dimension b (1/2 Æ measuring shaft) .. + 15,00 mm
gives Dimension X (housing dimension) = 250,10 mm
Figure 245
Figure 244
Figure 243
Figure 242
