Doosan DA40 - Rear frame

Ch 6 page 39
ELECTRICAL SYSTEM
SHOP MANUAL
Rear frame
Gap between plate
and sensor: 15 ±1mm
Body down sensor
St. lubrication system:
Groeneweld
415
Rear Central
Lubrication
block
411
414
410
To Cabine
VCU2 unit
S6
1
2
3
4
5
6
1 Central lubrication
2 Rear light RHS
3 Rear light LHS
4 Free
5 Working light
6 Signal, Buzzer
7 Signal to the Buzzer
7
413
430
424
424
Go to the Pos reference list to nd place
on the circuit drawings parts belong to.
NOTE

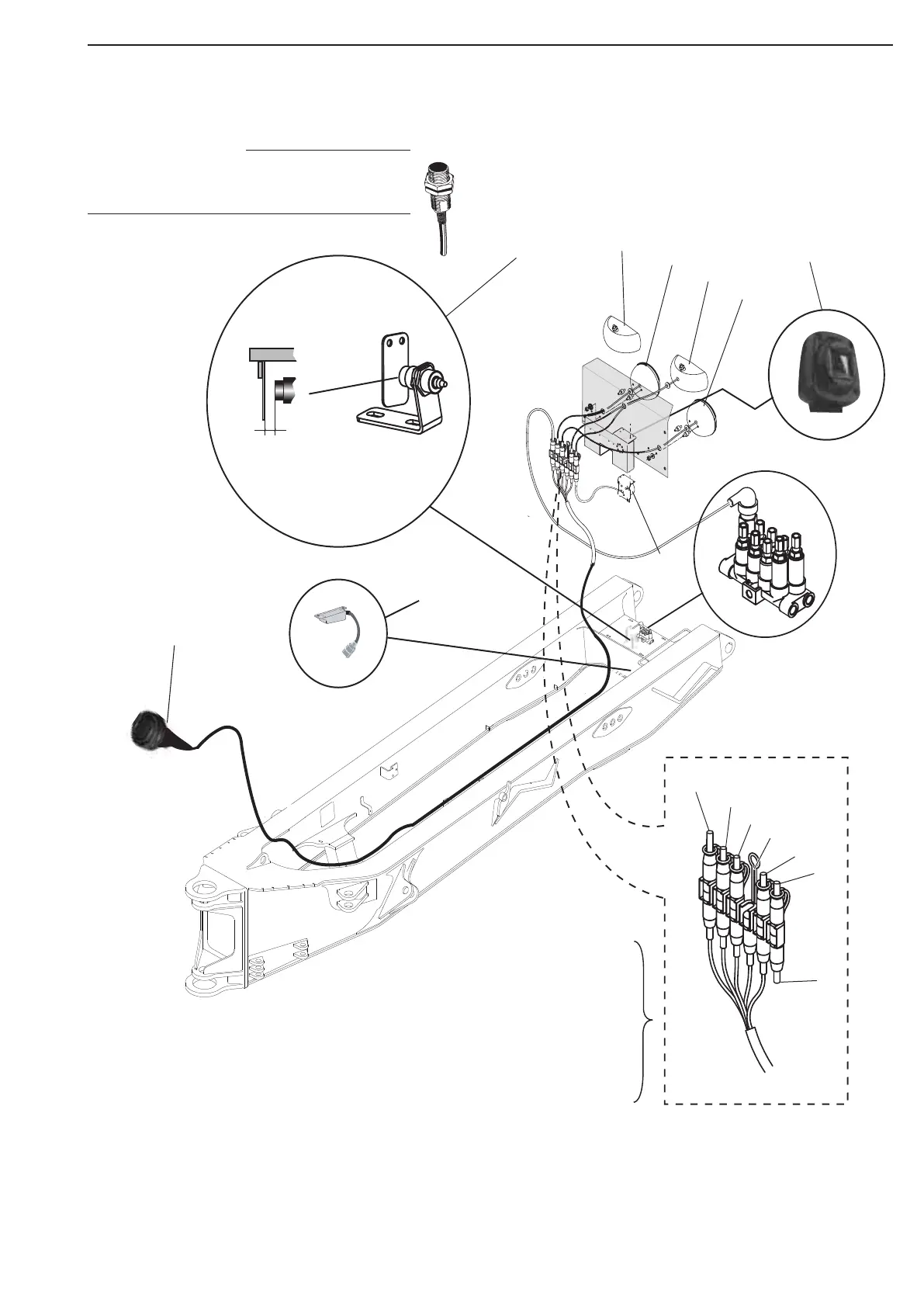

Figure 21
The bracket
breaking
sensor beam
is adjustable
and must be
adjusted cor-
rectly in order
for sensor to
work.
Bracket must
completely
cover sensor
beam.
